221457-2150-02 Briggs and Stratton Engine

Model: 221457-2150-02

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

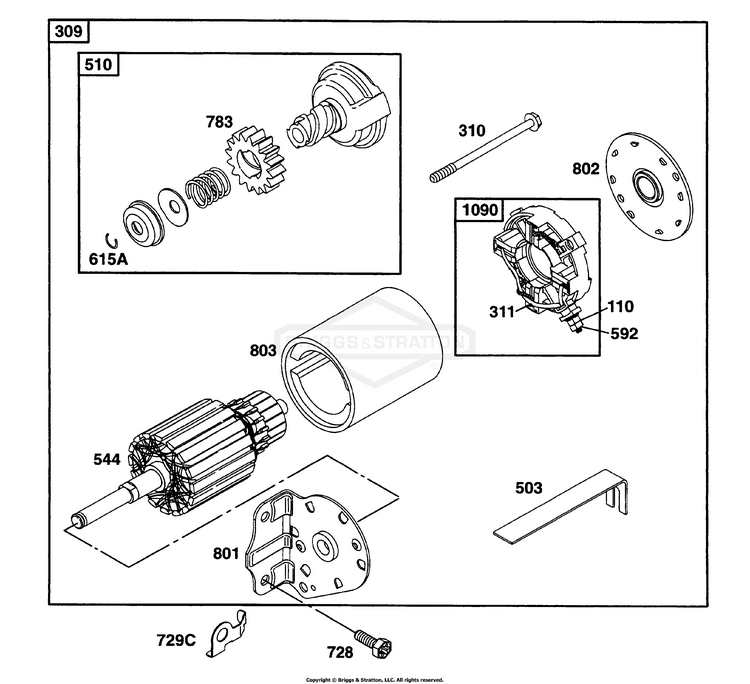

Electric Starter

...
...
110
WASHER BS-691186

...
110
WASHER BS-691261

...
309
MOTOR, Starter (3 5/8) (Plastic Ring Gear) BS-497595

...
310
SCREW (3 5/8 Housing) BS-690323

...
311
SET, Brush BS-497608

...
503
STRAP, Starter (4 9/16 Housing) BS-691532

...
510
MOTOR, Starter (Includes 693058 And 693059 Starter Gear) BS-844717

...
544
ARMATURE, Starter (3 5/8 Housing) BS-692034

...
592

...
592
NUT (Starting Switch) BS-691029

...
592
LOCKNUT BS-691105

...
615A
RING, Retaining BS-691265

...
728

...
729C
CLIP, Wire BS-691224

...
783
GEAR-PINION (Briggs & Stratton 12V) BS-695708

...
801
CAP, Drive BS-691283

...
802
CAP, End BS-691286

...
803
HOUSING, Starter (3 5/8 Housing) BS-693757

...
1090
RETAINER, Brush BS-691293
...
...
...
