product name

221457-2150-02 Briggs and Stratton Engine

Model: 221457-2150-02

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

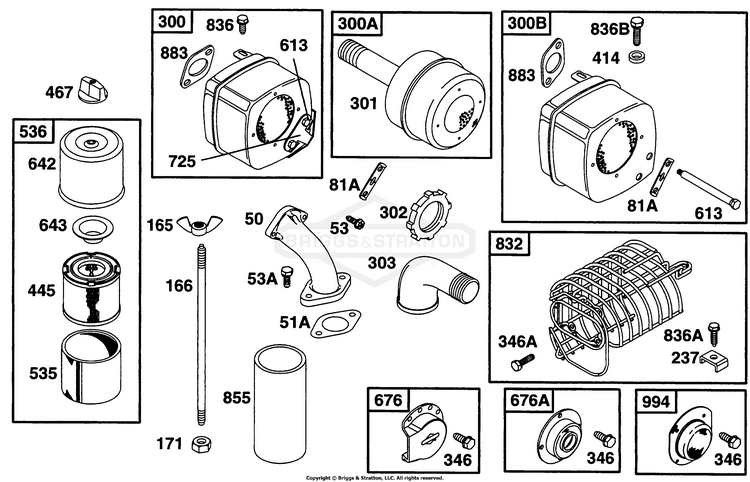

Air Cleaner Grp, Muffler Grp

...
...
50
MANIFOLD, Intake BS-212301

...
51A
GASKET, Intake Included in Gasket Set-Part No. 492653. Included in Valve Overhaul Gasket Set-Part No. 498537. Included in Carburetor Kit-See Ref. 121 BS-498869

...
53A
SCREW (1/4-20 X 3/4) BS-691681

...
53
SCREW (Intake Manifold) BS-93208

...
81A
LOCK, Muffler Screw BS-691178

...
165

...
166
STUD (9 1/2) BS-691241

...
166

...
171
NUT (1/4-28) BS-690284

...
237
RETAINER, Muffler Guard BS-690409

...
300B
MUFFLER BS-491626

...
300A
MUFFLER BS-391569S

...
300
MUFFLER (Square Lo Tone) BS-691874

...
301
PIPE, Exhaust (5 1/4) BS-93768

...
301
PLUG, Oil Drain BS-93978

...
302
LOCKNUT (Muffler and Elbow) BS-691808

...
303
MANIFOLD, Exhaust (1 Street) BS-690281

...
346A
SCREW (1/4-20 X 1) BS-691083

...
346
SCREW (Muffler Deflector) BS-690661

...
414
SPACER BS-690510

...
445
FILTER, A/C Cartridge BS-393957S

...
467
KNOB, Air Cleaner Cover BS-391908

...
535
FILTER, Pre Cleaner BS-271794S

...
536
CLEANER-AIR BS-593702

...
613
SCREW (Muffler) BS-691416

...
642
COVER, Air Cleaner BS-593373

...
643
RETAINER, Air Filter BS-691730

...
643
SCREW (Rotating Screen) BS-691660

...
676A
DEFLECTOR, Muffler BS-396903

...
676
DEFLECTOR, Muffler (Side Outlet) BS-795036

...
725
SHIELD, Heat BS-690420

...
832
GUARD, Muffler BS-690648

...
836A
SCREW (Tapping) BS-690367

...
836B

...
836
SCREW (Blower Housing) BS-692198

...
855
MANIFOLD, Intake Use(s): 222726 Strap-Carburetor BS-231145

...
883
GASKET, Exhaust Included in Gasket Set-Part No. 492653. Included in Valve Overhaul Gasket Set-Part No. 498537 BS-692236

...
994
ARRESTOR, Spark BS-794945
...
...
...
