221457-2150-02 Briggs and Stratton Engine

Model: 221457-2150-02

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

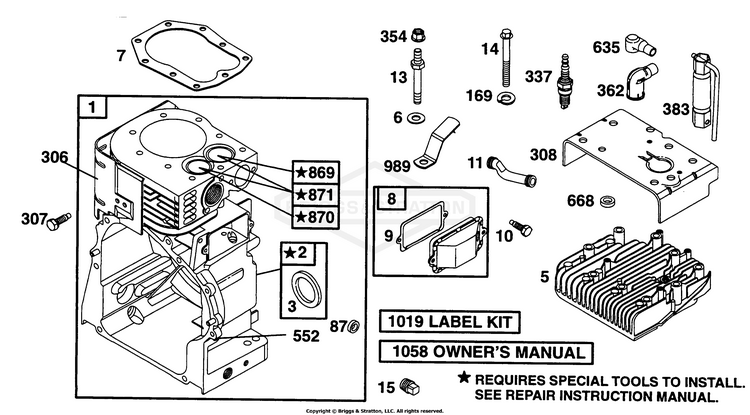

Cylinder, Head

...
...
1
CYLINDER ASSEMBLY BS-394656

...
2
KIT, Bushing/Seal (Magneto Side) BS-797673

...
3
SEAL, Oil Included in Gasket Set-Part No. 492653 BS-391086S

...
5
HEAD-CYLINDER BS-690385

...
6
WASHER BS-691261

...
7
GASKET, Cylinder Head Included in Gasket Set-Part No. 492653. Included in Valve Overhaul Gasket Set-Part No. 498537 BS-271866S

...
8
BREATHER ASSEMBLY BS-495736

...
9
GASKET, Breather Included in Gasket Set-Part No. 492653. Included in Valve Overhaul Gasket Set-Part No. 498537 BS-27803S

...
10

...
11
TUBE, Breather BS-280112

...
13
STUD (3 15/16) BS-691690

...
14
WASHER BS-691261

...
14
SCREW (3) BS-690904

...
14
STUD (3 15/16) (3 5/16) BS-691690

...
14
STUD (2 1/2) BS-691695

...
15
PLUG, Oil Drain BS-690289

...
15
PLUG, Oil Drain (Square Head) BS-690946

...
87
SEAL, Governor Shaft Included in Gasket Set-Part No. 492653 BS-692407

...
169
WASHER, 5/16" LOCK BS-5025170SM

...
306
SHIELD-CYLINDER BS-690489

...
307

...
308
COVER, Cylinder Head BS-690491

...
337
PLUG, Spark BS-796112S

...
337
PLUG, Spark BS-796112S

...
337
PLUG, Spark (Resistor) BS-796112S

...
354
LOCKNUT BS-691105

...
362
SHIELD-SPARK PLUG BS-793351

...
383
WRENCH, Spark Plug BS-89838S

...
552
BUSHING, Governor Crank (Includes Seal, Ref. 87) BS-491893

...
635
BOOT, Spark PLug BS-66538S

...
668
SPACER BS-231186

...
869
SEAT, Valve (Intake) BS-691802

...
870
SEAT-VALVE (Exhaust) BS-691844

...
871
BUSHING, Valve Guide (Intake) BS-231218

...
871
BUSHING, Valve Guide (Exhaust) BS-261961

...
989
SWITCH, Spark Plug Stop BS-690633

...
1019
KIT, Label BS-491253

...
1058
MANUAL, Operator's BS-270861
...
...
...
