221457-2150-02 Briggs and Stratton Engine

Model: 221457-2150-02

Back To Assemblies
Save
Part Not Listed?Part Not Listed?
product name

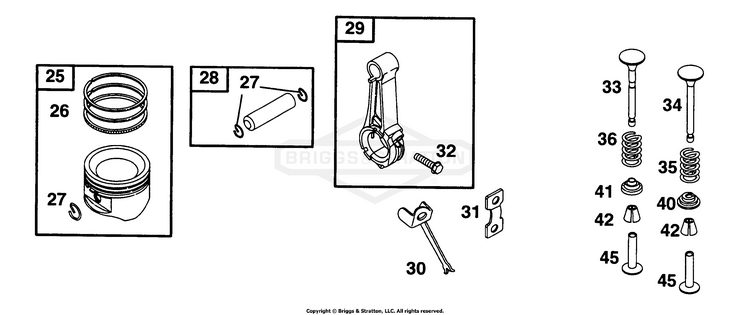

Piston Grp

...
...
25
PISTON ASSEMBLY (Standard) BS-499284

...
25
PISTON ASSEMBLY (.010 Oversize) BS-394662

...
25
PISTON ASSEMBLY (.020 Oversize) BS-499292

...
25
PISTON ASSEMBLY (.030 Oversize) BS-499296

...
26
SET, Ring (Standard) BS-499996

...
26
SET, Ring (.010 Oversize) BS-391781

...
26
SET, Ring (.020 Oversize) BS-499998

...
26
SET, Ring (.030 Oversize) BS-391783

...
26
SET, Ring (Standard) BS-392331

...
27
LOCK, Piston Pin Used Before Code Date 95101600 BS-691792

...
27
LOCK, Piston Pin BS-691299

...
28
PIN, Piston (Standard) BS-299691

...
28
PIN, Piston (.005 Oversize) Used Before Code Date 95101600 BS-391286

...
28
PIN, Piston (Standard) BS-498319

...
28
PIN, Piston (.005 Oversize) BS-498320

...
29
ROD, Connecting (Standard) BS-393860

...
29
ROD, Connecting (.020 Undersize) BS-393861

...
30
DIPPER-CONN ROD BS-690405

...
31
LOCK, Rod Screw BS-222299

...
32

...
33
VALVE, Exhaust BS-691796

...
34
VALVE, Intake BS-690429

...
35
SPRING, Valve (Intake) BS-691605

...
36
SPRING, Valve (Exhaust) BS-691597

...
40
RETAINER, Valve (Valves With Groove In Stem) BS-690656

...
41
RETAINER-VALVE (Exhaust) BS-691939

...
42
KEEPER, Valve (Exhaust) BS-494553

...
45
TAPPET, Valve BS-691811
...
...
...
