22115x92B Murray - Walk-Behind Mower (2000)

Model: 22115x92B

Save Part Not Listed?
product name

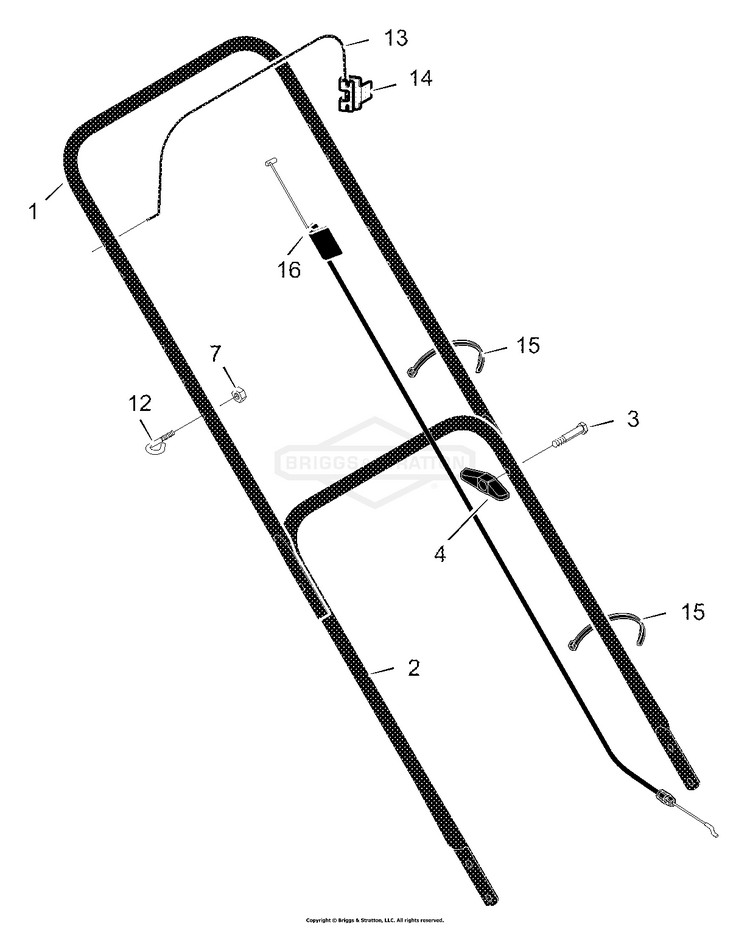

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
2
LOWER HANDLE 21/22 MA BS-071137E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-043653E701MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-672840MA

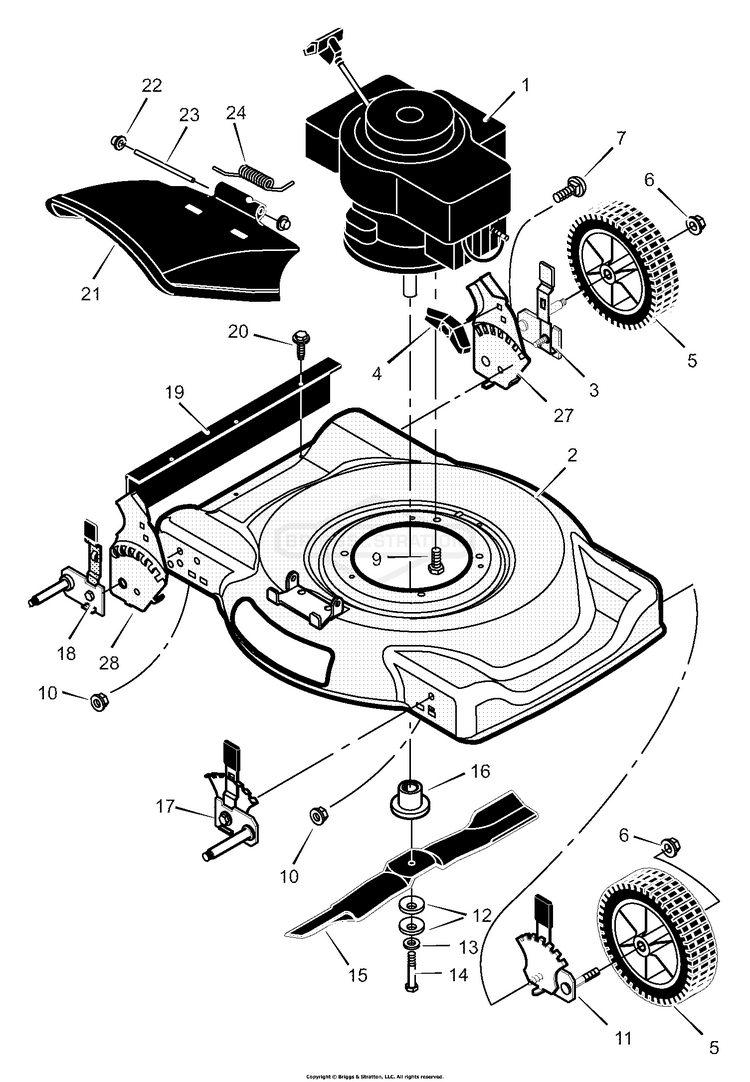

Mower Housing Assembly

...
...
2
Housing BS-776022MA
...
3
Height Adjuster, Left Rear BS-672637MA
...
4
Knob BS-071495MA
...
5
Tire & Rim BS-336546MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81MA
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front BS-672635MA
...
12
Washer, Belleville BS-17X137MA
...
13
Washer BS-17X124MA
...
14
Bolt, Hex BS-01X142MA
...
15
Blade, Side Discharge BS-042225E701MA
...
16
Adapter, Blade BS-071056MA
...
17
Height Adjuster, Right Front BS-672634MA
...
18
Height Adjuster, Right Rear BS-672637MA
...
19
Guard, Rear BS-672738MA
...
20
SCREW-#10X.5 B W/WAS BS-26X245MA
...
21
Deflector, Chute BS-672421MA
...
22
Push-On Cap BS-028X42MA
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5MA
...
27
Bracket, Left Handle BS-672335E700
...
28
Bracket, Right Handle BS-672334E700
...
--
Book, Instruction BS-F-000415L
