220012x92A Murray - Walk-Behind Mower (2005)

Model: 220012x92A

Save Part Not Listed?
product name

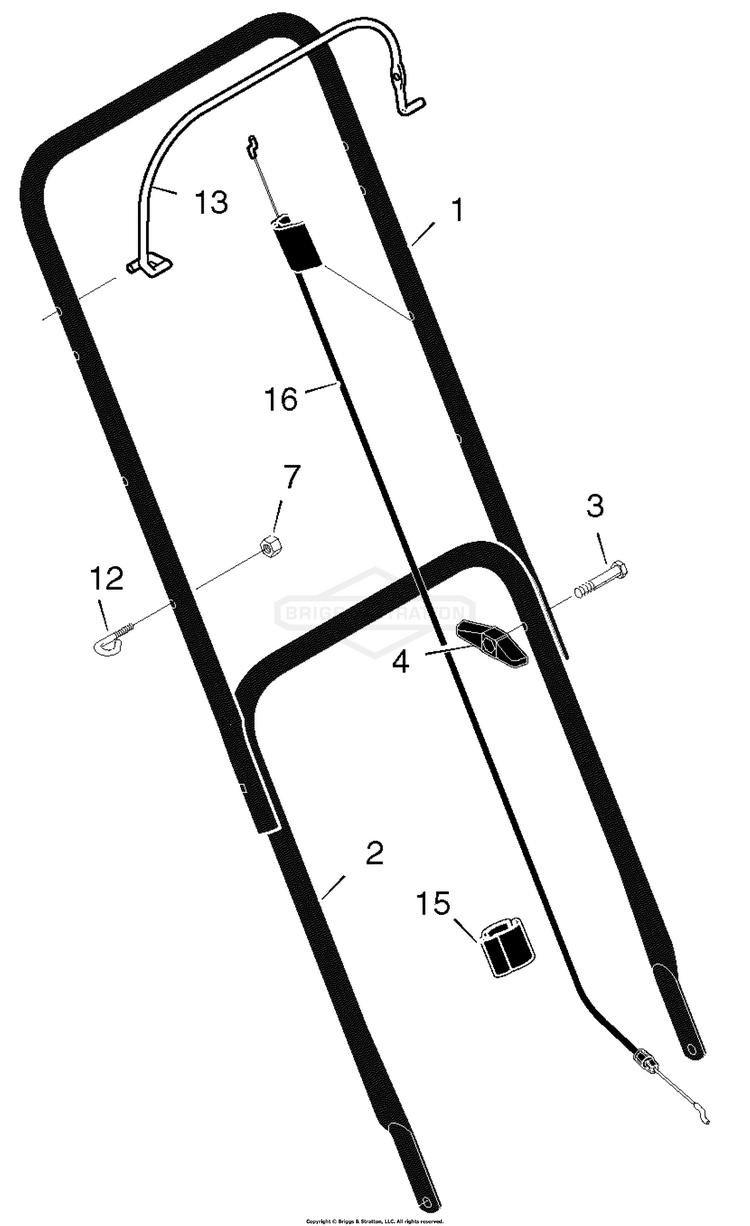

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101556E701
...
1
Handle, Upper (Gray) BS-1101556E724
...
2
Handle, Lower (Black) BS-1102087E701
...
2
Handle, Lower (Gray) BS-1102087E724
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Engine Stop Lever BS-1101964E701
...
15
Fastener, Cable BS-1101353
...
16
Engine Stop Cable * BS-1102094
...
16
Engine Stop Cable * BS-1102072

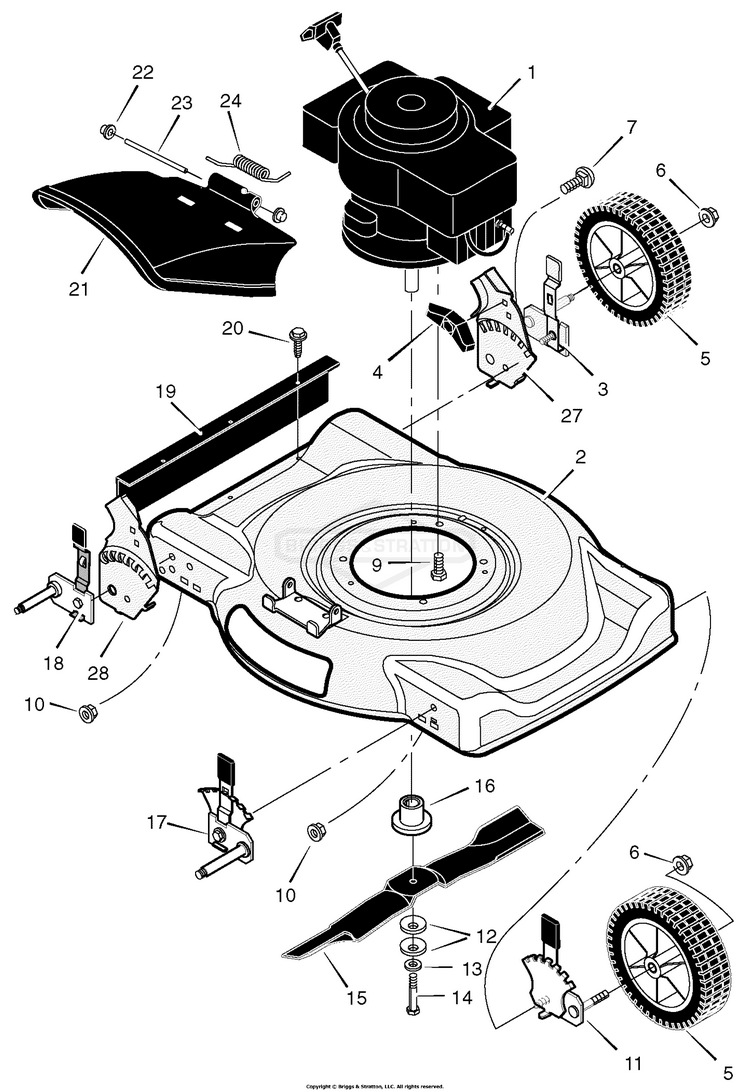

Mower Housing Assembly

...
...
2
Housing BS-776022
...
3
Height Adjuster, Left Rear (7" Wheels) BS-1102155
...
4
Knob BS-71495
...
5
Wheel and Tire BS-20270
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Bolt, Carriage BS-002X81
...
9
Bolt, Engine BS-0025X6MA
...
10
NUT, 3/8-16 BS-703333
...
11
Height Adjuster, Left Front (7" Wheels) BS-1102153
...
12
Washer, Belleville BS-17X137
...
13
Washer BS-17X124
...
14
Bolt, Hex BS-01X142
...
15
Blade, Side Discharge BS-042225E701
...
16
Adapter, Blade BS-71056
...
17
Height Adjuster, Right Front (7" Wheels) BS-1102152
...
18
Height Adjuster, Right Rear (7" Wheels) BS-1102154
...
19
Guard, Rear BS-672738
...
20
Screw BS-26X245
...
21
Deflector, Chute BS-672421
...
22
Push-On Cap BS-028X42
...
23
Pin, Pivot BS-215X11 Z
...
24
Spring BS-0166X5
...
27
Bracket, Left Handle BS-1101303E700
...
28
Bracket, Right Handle BS-1101302E700
...
--
Book, Instruction BS-F-050403L
