21R877-0073-B1 Briggs and Stratton Engine

Model: 21R877-0073-B1

Back To Assemblies

Save Part Not Listed?
product name

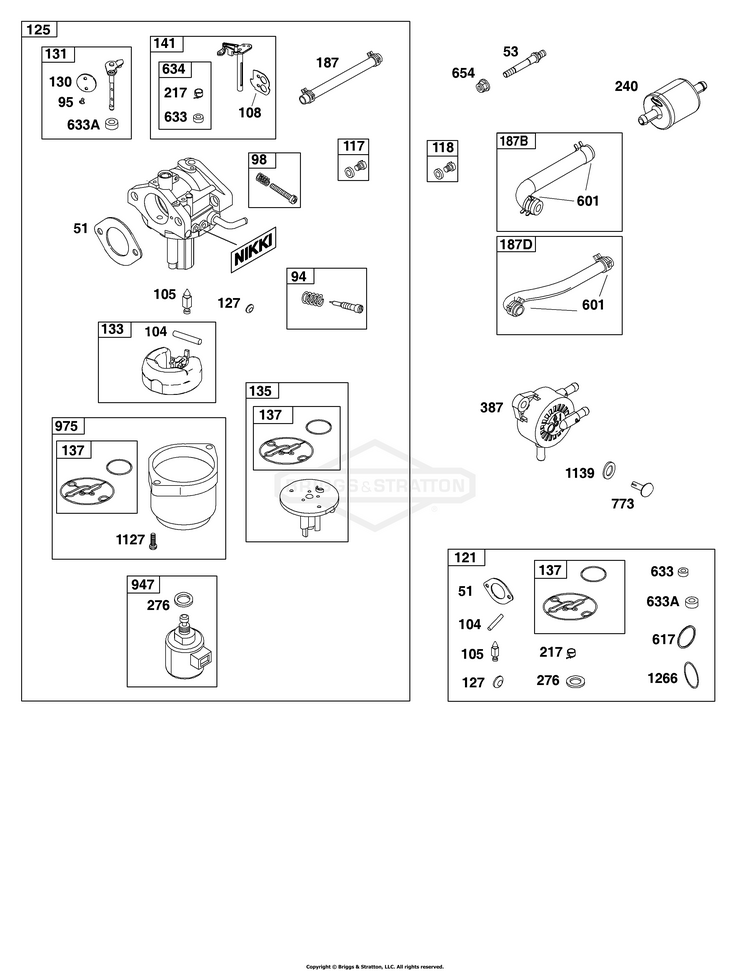

Carburetor and Fuel Supply Group

...
...
53
STUD (Carburetor) BS-591260
...
94
KIT, Idle Mixture BS-793610
...
95
SCREW (Throttle Valve) BS-690718
...
98
KIT, Idle Speed BS-695408
...
104
PIN, Float Hinge BS-694918
...
105
VALVE, Float Needle BS-696136
...
108
VALVE, Choke BS-698773
...
117
JET, Main (Standard) BS-791405
...
118
JET, Main (High Altitude) BS-698788
...
121
KIT, Carburetor Overhaul (Service Kits may include extra parts not specific to this engine.) BS-796184
...
125
CARBURETOR BS-593433
...
127
PLUG, Welch BS-690727
...
130
VALVE, Throttle BS-698774
...
131
KIT, Throttle Shaft BS-698776
...
133
FLOAT, Carburetor BS-694914
...
135
TUBE, Fuel Transfer BS-796400
...
137
GASKET, Float Bowl BS-698781
...
141
KIT, Choke Shaft BS-698778
...
187
LINE, Fuel BS-791766
...
187B
LINE, Fuel BS-791805
...
187D
LINE, Fuel BS-791744
...
217
SPRING, Choke Return BS-695409
...
240
FILTER, Fuel BS-84001895
...
276
WASHER, Sealing BS-695410
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-791850
...
633
SEAL, Choke/Throttle Shaft BS-699813
...
633A
SEAL, Choke/Throttle Shaft BS-690998
...
634
SPRING/SEAL ASSEMBLY BS-698779
...
654
NUT (Carburetor) BS-690958
...
773
RETAINER BS-796448
...
947
SOLENOID, Fuel BS-596038
...
975
BOWL, Float BS-699502
...
1127
SCREW (Float Bowl) (Float Bowl to Carburetor Body) BS-695407
...
1139
WASHER BS-796449
