21A707-0223-E1 Briggs and Stratton Engine

Model: 21A707-0223-E1

Back To Assemblies

Save Part Not Listed?
product name

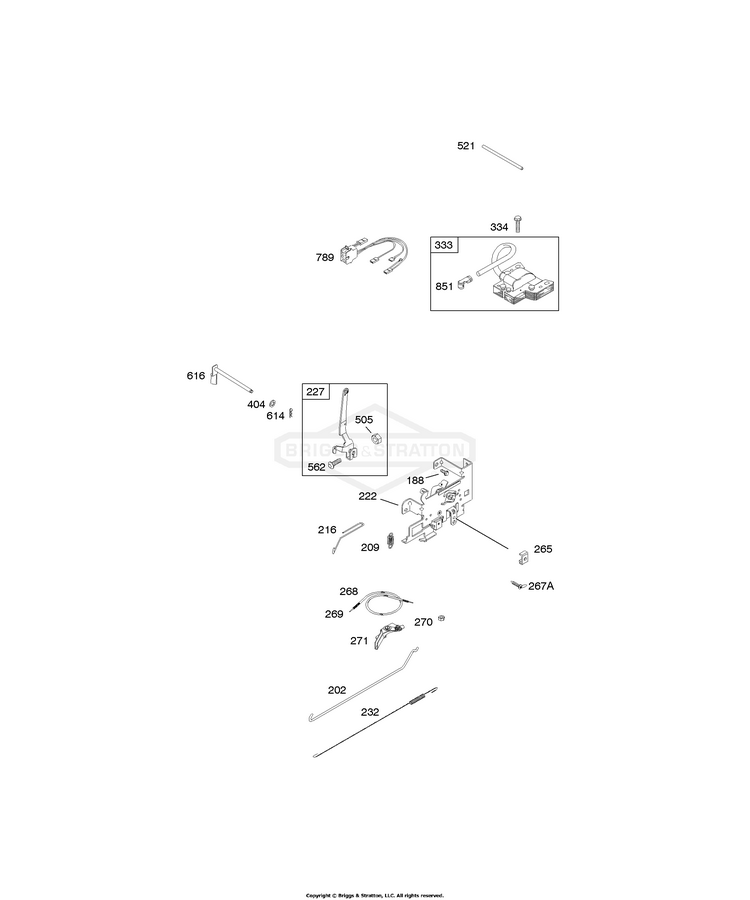

Controls, Ignition

...
...
188
SCREW (Control Bracket) BS-691693
...
202
LINK, Mechanical Governor BS-691841
...
209
SPRING, Governor BS-792602
...
216
LINK, Choke BS-691840
...
222
BRACKET, Control BS-597209
...
227
LEVER, Governor Control BS-691374
...
232
SPRING, Governor Link BS-691842
...
265
CLAMP, Casing BS-691024
...
267A
SCREW (Casing Clamp) BS-794904
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-691061
...
404
WASHER (Governor Crank) BS-691691
...
505
NUT (Governor Control Lever) BS-691251
...
521
SHIELD, Cable BS-690581
...
562
BOLT (Governor Control Lever) BS-691119
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-692012
...
789
HARNESS, Wiring BS-698329
...
851
TERMINAL, Spark Plug BS-692424
