21A707-0223-E1 Briggs and Stratton Engine

Model: 21A707-0223-E1

Back To Assemblies

Save Part Not Listed?
product name

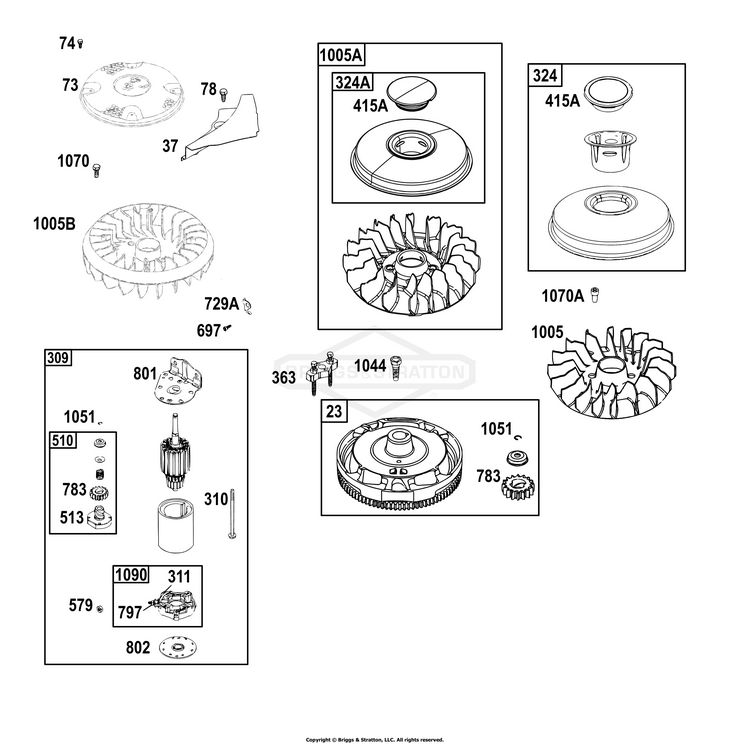

Electric Starter, Flywheel

...
...
23
FLYWHEEL BS-698281
...
37
GUARD, Flywheel BS-697352
...
74
SCREW (Rotating Screen) Used Before Code Date 07040900 BS-697897
...
78
SCREW (Flywheel Guard) BS-691003
...
309
MOTOR, Starter BS-593934
...
310
SCREW (Starter Motor) BS-690323
...
311
SET, Brush BS-497608
...
324
SCREEN/CUP ASSEMBLY Used Before Code Date 07040800 BS-593933
...
324A
COVER, Flywheel Used After Code Date 07040800 BS-794129
...
363
PULLER, Flywheel BS-19203
...
415A
COVER, Flywheel (Cover/Retainer) Used After Code Date 07040800 BS-794129
...
510
MOTOR, Starter BS-593934
...
513
CLUTCH, Drive BS-692024
...
579
NUT (Starter Cable) BS-691029
...
697
SCREW (Drive Cap) BS-791680
...
729A
CLIP, Wire BS-691224
...
783
GEAR, Pinion BS-593935
...
797
NUT (Brush Retainer) BS-693167
...
801
CAP, Drive BS-691283
...
802
CAP, End BS-691286
...
1005
FAN, Flywheel Used After Code Date 07040800 BS-796200
...
1005A
FAN, Flywheel Used Before Code Date 07040900 BS-796200
...
1044
SCREW (Flywheel) BS-698139
...
1051
RING, Retaining BS-691265
...
1070
SCREW (Flywheel Fan) Used Before Code Date 07040900 BS-791680
...
1070A
SCREW (Flywheel Fan) Used After Code Date 07040800 Used Before Code Date 08061900 BS-690363
...
1090
RETAINER, Brush BS-691293
