product name

21997x50A Murray - Walk-Behind Mower (2003)

Model: 21997x50A

Save Part Not Listed?
product name

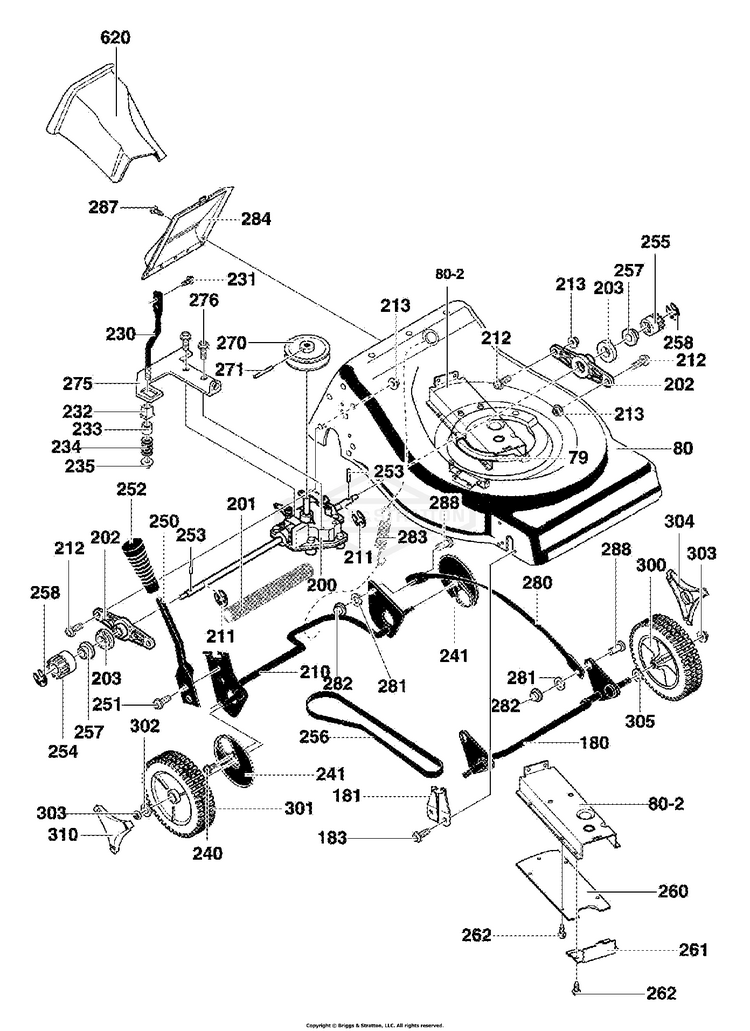

Drive & Wheel Assembly

...
...
79
SEAL, FOAM BS-712012
...
80
ASSY, FRAME BS-672274-860
...
80-2
GUARD, BELT BS-71238
...
180
CROSSBAR, FRONT BS-71152-860
...
181
BUSHING BS-672279MA
...
183
SCREW BS-710270
...
200
TRANSMISSION BS-672270MA
...
201
SHIELD, AXLE BS-643649
...
202
SUPPORT, AXLE BS-671411
...
203
BEARING, LIFTER BS-643788
...
210
ASSY, CROSSBAR BS-672277-860
...
211
E-RING BS-020864
...
212
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
213
NUT, HEX FLNG,5/16-18 BS-704067
...
230
SUPPORT, SPRING BS-071481
...
231
SCREW BS-305850MA
...
232
BUSHING BS-071480MA
...
233
SPACER BS-043844MA
...
234
SPRING BS-710327
...
235
NUT, HEX FLNG,5/16-18 BS-704067
...
240
SCREW BS-710270
...
241
DUST COVER BS-643616MA
...
250
LEVER, SPRING BS-672278MA
...
251
SCREW BS-710274
...
252
KNOB, HEIGHT ADJ BS-671297MA
...
253
PIN, DRIVE BS-643629
...
254
GEAR, PINION RIGHT BS-671904MA
...
255
GEAR, PINION LEFT BS-671903MA
...
256
BELT, V BS-672271MA
...
257
HOUSING, Blower BS-710364
...
258
E-RING BS-020864
...
260
COVER, BELT GUARD BS-43770-860
...
261
COVER, FRONT BELT BS-71239-860
...
262
SCREW BS-710273
...
270
PULLEY, BS-672269MA
...
271
PIN, SPRING BS-710294
...
275
BRACKET, CABLE BS-672819
...
276
SCREW BS-710264
...
280
LINK, LIFTER 21 BS-43720-860
...
281
NUT, PUSH ON BS-712072
...
282
PUSH ON CAP BS-028X42MA
...
283
SPRING, EXTENSION BS-711459MA
...
284
COVER, REAR BS-71246-860
...
287
SCREW BS-711863
...
288
PIN, CLEVIS BS-711542MA
...
300
TIRE & RIM BS-672802
...
301
WHEEL, DRIVE BS-672440MA
...
302
PANEL, Control BS-711573
...
303
NUT, CNTR LCK, 3/8-16 BS-703893
...
304
HUB CAP BS-672445MA
...
305
WASHER,SPRING .52X.99 BS-0020X3MA
...
310
HUBCAP T-BAR LG-RIM D BS-672446MA
...
620
MULCHER PLUG-SMALL BS-071250MA
...
--
BOOK, INSTRUCTION BS-F-010409M

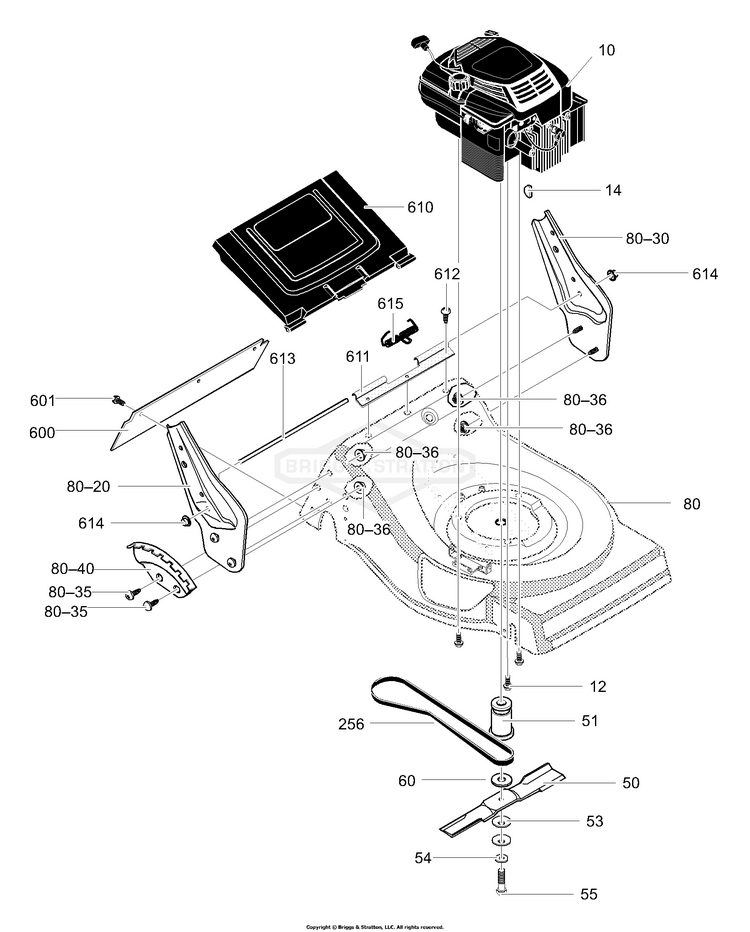

Engine Mount

...
...
12
SCREW BS-47792MA
...
14
WOODRUFF KEY BS-2125
...
50
BLADE BS-672089
...
51
ADAPTER, BLADE BS-671058MA
...
53
WASHER BS-710210
...
54
WASHER BS-710207
...
55
SCREW BS-710201
...
60
SPACER BS-671470
...
80
ASSY, FRAME BS-672923-860
...
80-20
BRKT., HANDLE RH BS-672925
...
80-30
BRKT., HANDLE LH BS-672924
...
80-35
SCREW BS-710277
...
80-36
NUT BS-710204
...
80-40
INDEX, HEIGHT ADJ BS-672276
...
256
BELT, V BS-672271MA
...
600
DEFLECTOR, REAR BS-043640
...
601
SCREW BS-710271
...
610
DOOR, REAR 21 BS-071833
...
611
SPACER BS-672049
...
612
SCREW BS-710273
...
613
ROD, PIVOT BS-672282 Z
...
614
CAP, PUSH ON BS-028X42MA
...
615
SPRING, TORSION BS-340823

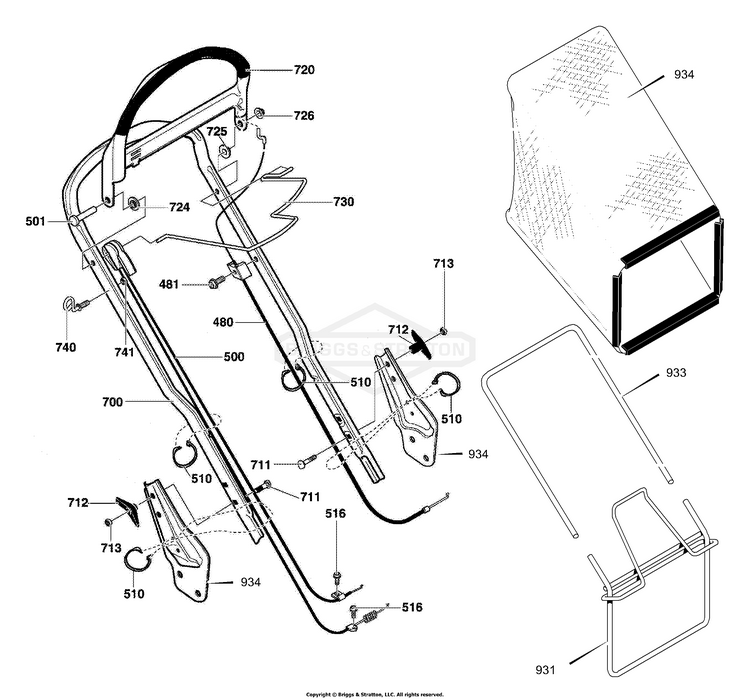

Handle & Bag Assembly

...
...
480
CABLE,STOP BS-672667MA
...
481
SCREW BS-710269
...
500
CABLE, DRIVE BS-672854MA
...
501
SCREW BS-711833MA
...
510
TIE, CABLE BS-712267
...
516
SCREW BS-710271
...
700
HANDLE BS-672843
...
711
BOLT BS-710175
...
712
KNOB, WING 3.00 BS-1501260MA
...
713
NUT BS-120376
...
720
LEVER, STOP BS-672797
...
724
SPACER BS-672734MA
...
725
SPACER BS-672734MA
...
726
RETAINER BS-710286
...
730
LEVER, DRIVE WIRE BS-672290-860
...
740
GUIDE, ROPE BS-672510MA
...
741
NUT BS-710203
...
80-20
BRKT., HANDLE RH BS-672925
...
80-30
BRKT., HANDLE LH BS-672924
...
931
FRAME, BAGGER BS-672296
...
933
TUBE-BAG TOP 20RB BS-071592MA
...
934
BAG BS-672574MA
