218950x92B Murray - Walk-Behind Mower (2004)

Model: 218950x92B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

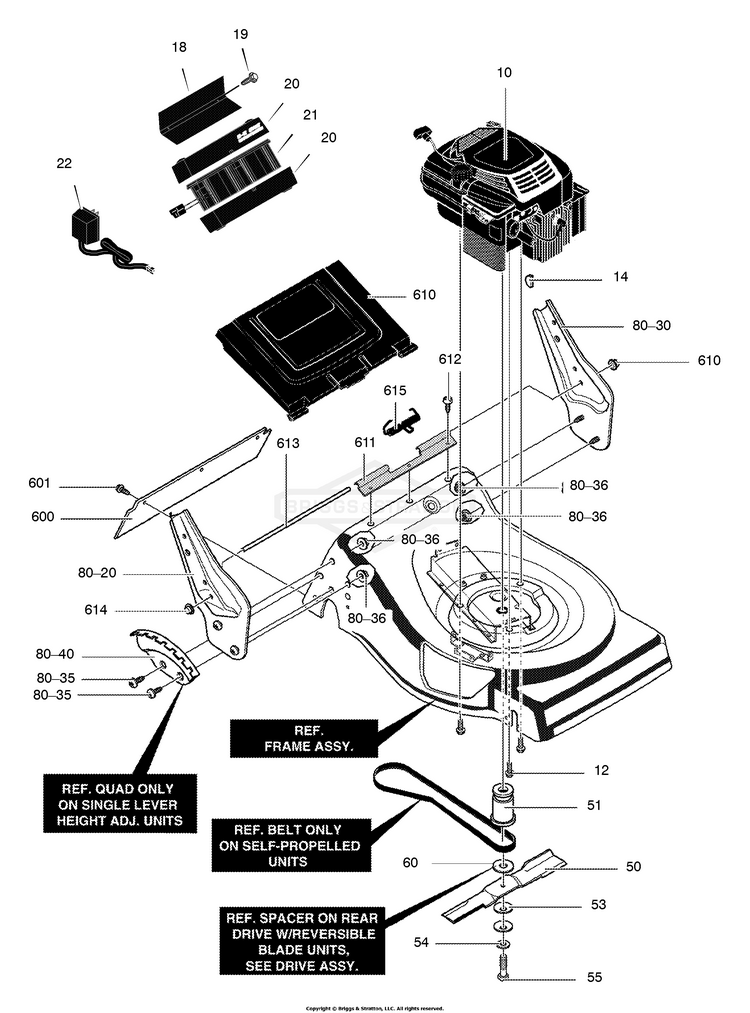

Engine Mount

...
...
12
SCREW BS-0025X6MA
...
14
KEY, Drive Pulley BS-692193
...
18
BRACKET, BATTERY (For electric start models.) BS-671959E701
...
19
SCREW * (Included with Ref. No. 20) BS-26X220MA
...
20
CASE, BATTERY (For electric start models.) BS-776014MA
...
21
BATTERY * (Included with Ref. No. 20) BS-672182
...
22
CHARGER, BATTERY (For electric start models.) BS-671992MA
...
50
BLADE, 21" REVERSIBLE BS-672089E701A
...
51
ADAPTER, BLADE 21" BS-043603MA
...
53
WASHER, BEVELLE BS-17X137MA
...
54
WASHER BS-17X124MA
...
55
SCREW, 3/8-24 x 2.00 BS-01X148MA
...
60
SPACER BS-071470MA
...
80-20
BRACKET, HANDLE RH BS-627845E201
...
80-30
BRACKET, HANDLE LH BS-672844E201MA
...
80-35
SCREW, 5/16-18 x 0.63 BS-26X275MA
...
80-36
NUT, 5/16-18, GR5 BS-703409
...
80-40
INDEX HGT ADJ 21SLSP BS-071569E701MA
...
256
BELT, V BS-672271MA
...
600
DEFLECTOR, REAR BS-043640
...
601
SCREW-#10X.5 B W/WAS BS-26X245MA
...
610
DOOR, REAR 21 BS-071409
...
611
SPACER BS-071410MA
...
612
SCREW, 10-16X.50 BS-26X259MA
...
613
ROD, PIVOT BS-672282 Z
...
614
CAP, PUSH ON BS-028X42MA
...
615
SPRING, TORSION BS-166X33MA
...
--
OWNER'S MANUAL BS-F-040458L

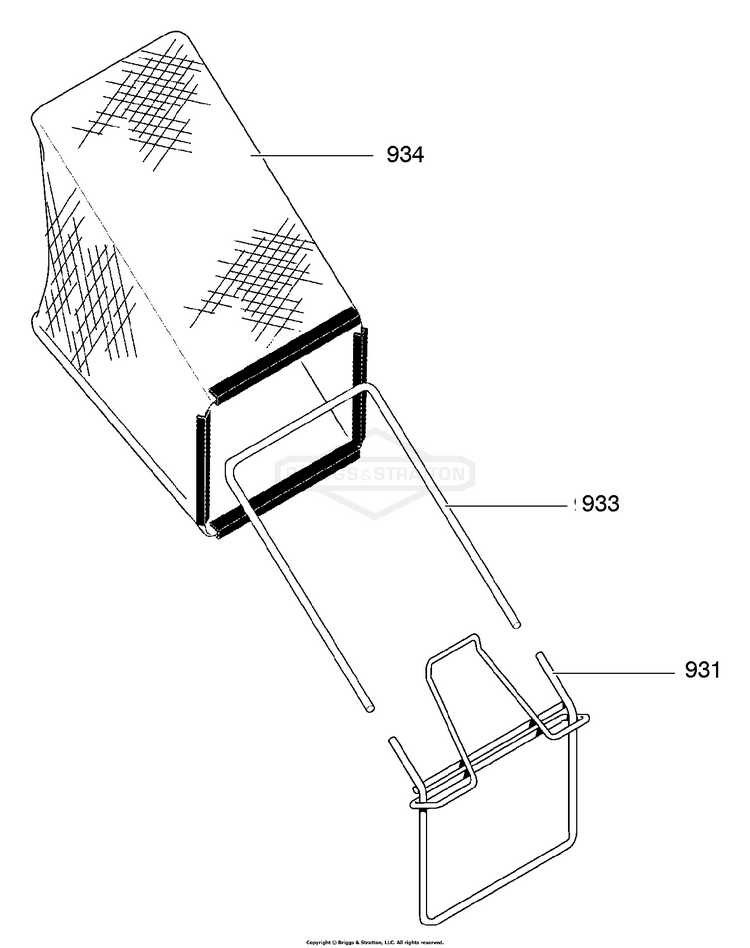

Grass Catcher Assembly

...
...
931
ASSY, BAG FRAME BS-672293MA
...
933
TUBE-BAG TOP 20RB BS-071592MA
...
934
BAG, 21" BS-1101950MA

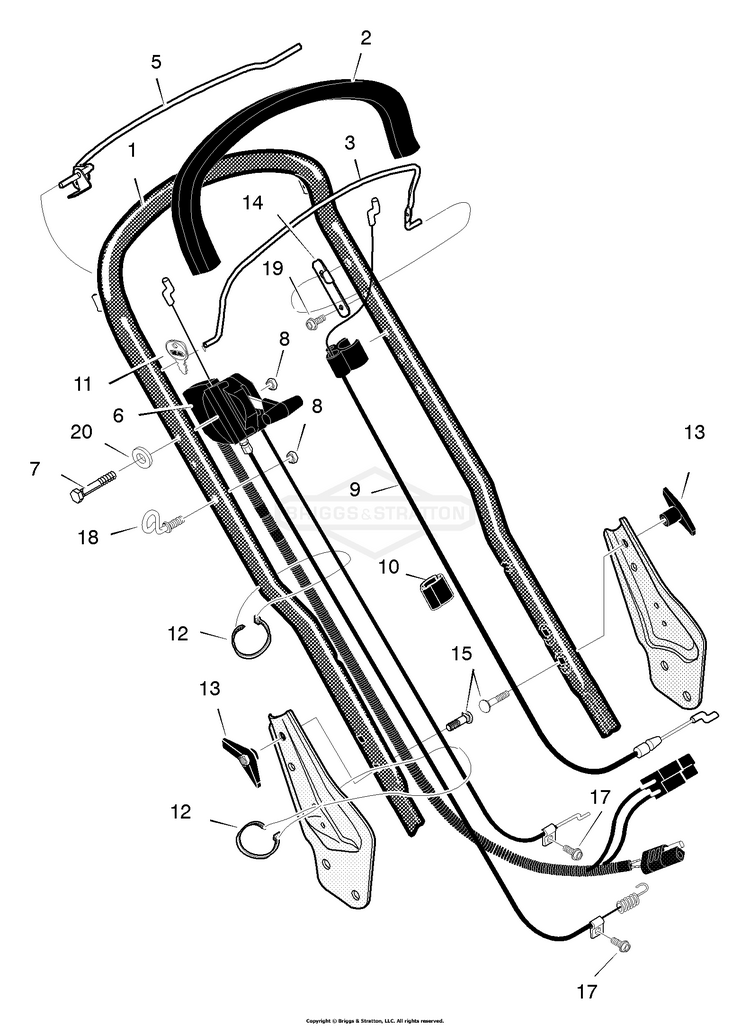

Handle Assembly

...
...
1
HANDLE, UPPER BS-1102050E701MA
...
2
SLEEVE, HANDLE BS-1101765MA
...
3
LEVER, STOP BS-1101766E701MA
...
5
LEVER, DRIVE BS-1102070E701MA
...
6
DRIVE CONTROL & CABLE BS-1101940MA
...
7
BOLT BS-001X93MA
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
CABLE, STOP BS-1101960MA
...
10
CLIP, CABLE BS-1101353MA
...
11
KEYS & RING BS-672220
...
12
TIE,STRAP-REMOVABLE BS-071372MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
BRACKET, STOP BS-1101962E701MA
...
15
BOLT, CARRIAGE BS-002X77MA
...
17
SCREW-#10X.5 B W/WAS BS-26X245MA
...
18
ROPE GUIDE-UPPER BS-071530MA
...
19
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
20
WASHER BS-703332

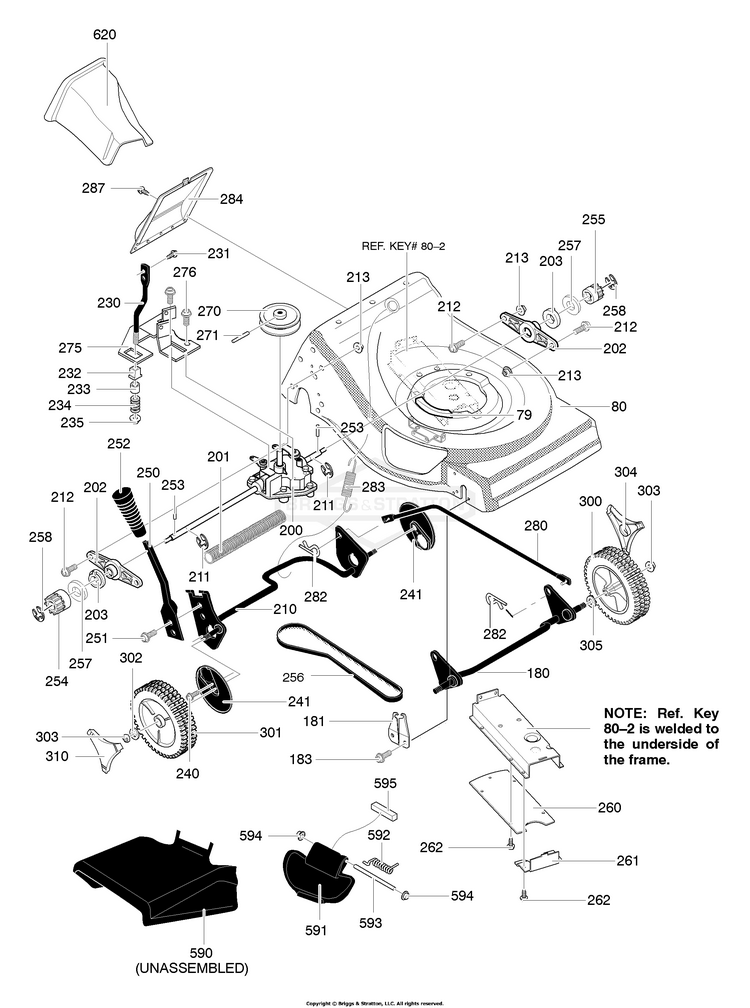

Housing & Drive System

...
...
79
SEAL, FOAM BS-712012
...
80
ASSY, HOUSING BS-071762E201MA
...
180
CROSSBAR, FRONT BS-071152E201MA
...
181
BUSHING BS-672279MA
...
183
SCREW BS-26X221MA
...
200
TRANSMISSION, TUFF TORQ BS-672270MA
...
201
SHIELD, AXLE BS-043649
...
202
SUPPORT, AXLE BS-071411MA
...
203
BEARING, LIFTER BS-043788MA
...
210
ASSY, CROSSBAR BS-672277E201MA
...
211
E-RING BS-011X16MA
...
212
CAPSCREW,5/16-18X.625 BS-703822
...
213
NUT, 5/16-18, GR5 BS-703409
...
230
SUPPORT, SPRING BS-071481 Z
...
231
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
232
BUSHING BS-071480MA
...
233
SPACER BS-043844MA
...
234
SPRING BS-164X27MA
...
235
NUT, HEX FLNG,5/16-18 BS-704067
...
240
SCREW BS-26X221MA
...
241
DUST COVER BS-643616MA
...
250
LEVER, SPRING BS-672278MA
...
251
SCREW.25-20 S-T BS-26X263MA
...
252
GRIP, HEIGHT ADJ BS-071297MA
...
253
PIN, DRIVE BS-043629MA
...
254
PINION RIGHT BS-671904MA
...
255
GEAR, PINION LEFT BS-671903MA
...
256
BELT, V BS-672271MA
...
257
WASHER, FLAT BS-17X186MA
...
258
E-RING BS-011X16MA
...
260
COVER, BELT GUARD BS-43770E701MA
...
261
COVER, BELT BS-7300724YP
...
262
SCREW BS-26X259MA
...
270
PULLEY BS-672269MA
...
271
PIN, SPRING BS-97129MA
...
275
BRACKET, CABLE BS-672819 Z
...
276
SCREW, HEX, 1/4-20X.5 BS-704130
...
280
LINK, LIFTER ASSY BS-1102055E201
...
282
PIN, HAIR BS-0031X9MA
...
283
SPRING, EXTENSION BS-711459MA
...
284
COVER, REAR BS-071246E201
...
287
SCREW.25-20 S-T BS-26X263MA
...
300
WHL 8X2 TWIST/BAR P D BS-1101433MA
...
301
WHEEL, DRIVE - RR BS-672440MA
...
302
WASHER, FLAT BS-017X169
...
303
NUT, CNTR LCK, 3/8-16 BS-703893
...
304
HUB CAP BS-672446
...
305
WASHER BS-017X92
...
310
HUBCAP T-BAR LG-RIM D BS-672446MA
...
590
DEFLECTOR, CHUTE BS-071770MA
...
591
COVER, MULCH BS-071769
...
592
SPRING, TORSION BS-166X38MA
...
593
ROD, PIVOT BS-215X16 Z
...
594
CAP, PUSH ON BS-028X42MA
...
595
SEAL, FOAM BS-712012
...
620
MULCHER PLUG-SMALL BS-071250MA
