218950x92A Murray - Walk-Behind Mower (2004)

Model: 218950x92A

Back To Assemblies

Save Part Not Listed?
product name

Engine Mount

...
...
12
SCREW BS-0025X6MA
...
14
KEY, Drive Pulley BS-692193
...
18
BRACKET, BATTERY (Parts for electric start models.) BS-671959E701
...
19
SCREW * (Included with Ref. No. 20) BS-26X220MA
...
20
CASE, BATTERY (Parts for electric start models.) BS-776014MA
...
21
BATTERY * (Included with Ref. No. 20) BS-672182
...
22
CHARGER, BATTERY (Parts for electric start models.) BS-671992MA
...
50
BLADE, 21" REVERSIBLE BS-672089E701A
...
51
ADAPTER, BLADE 21" BS-043603MA
...
53
WASHER, BEVELLE BS-17X137MA
...
54
WASHER BS-17X124MA
...
55
SCREW, 3/8-24 x 2.00 BS-01X148MA
...
60
SPACER BS-071470MA
...
80-20
BRACKET, HANDLE RH BS-627845E201
...
80-30
BRACKET, HANDLE LH BS-672844E201MA
...
80-35
SCREW, 5/16-18 x 0.63 BS-26X275MA
...
80-36
NUT, 5/16-18, GR5 BS-703409
...
80-40
INDEX HGT ADJ 21SLSP BS-071569E701MA
...
256
BELT, V BS-672271MA
...
600
DEFLECTOR, REAR BS-043640
...
601
SCREW-#10X.5 B W/WAS BS-26X245MA
...
610
DOOR, REAR 21 BS-071409
...
611
SPACER BS-071410MA
...
612
SCREW, 10-16X.50 BS-26X259MA
...
613
ROD, PIVOT BS-672282 Z
...
614
CAP, PUSH ON BS-028X42MA
...
615
SPRING, TORSION BS-166X33MA
...
--
OWNER'S MANUAL BS-F-040431L

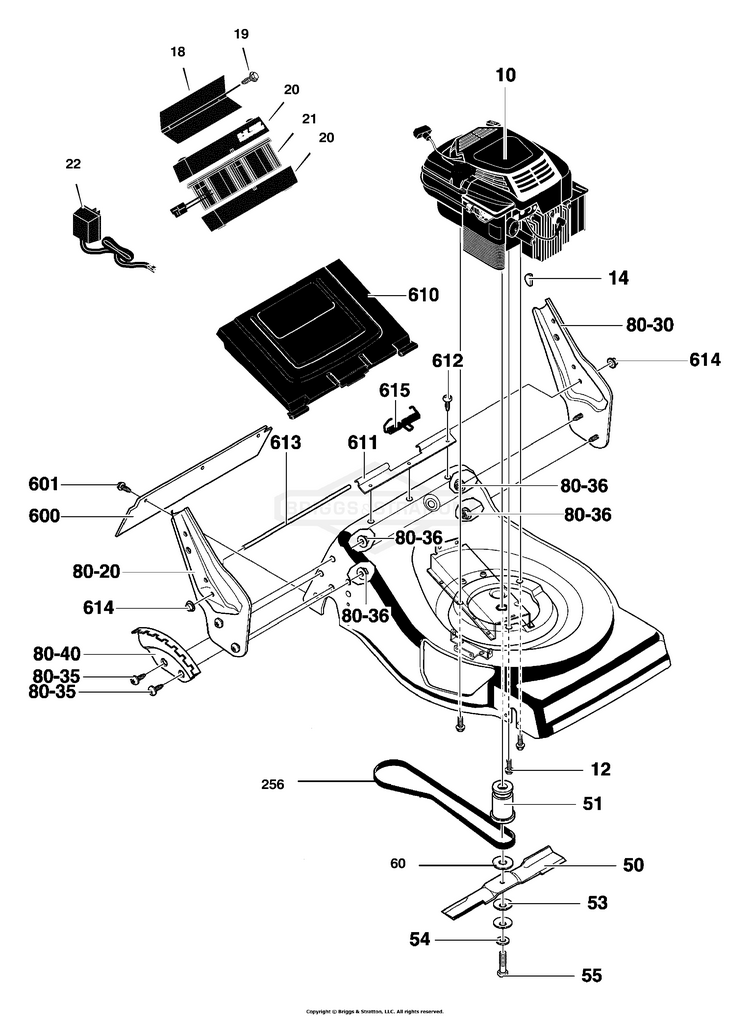

Schematic Image Zoomed
