218910x43B Murray - Walk-Behind Mower (2004)

Model: 218910x43B

Back To Assemblies

Save Part Not Listed?
product name

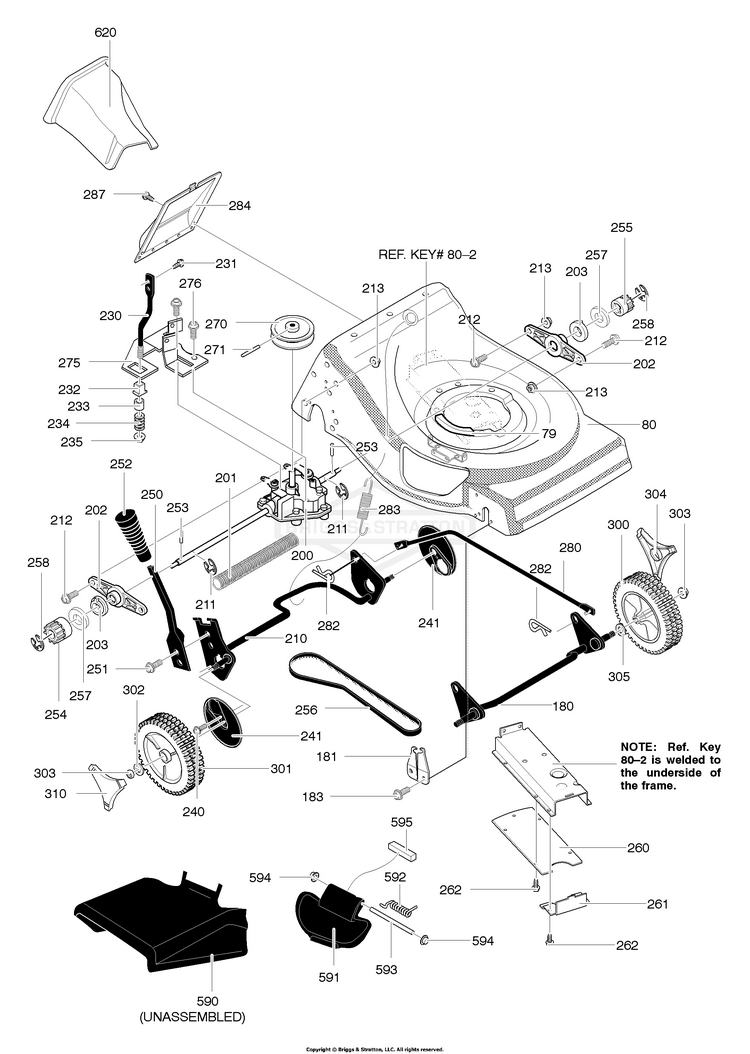

Mower Housing Assembly

...
...
79
SEAL, FOAM BS-712012
...
80
ASSY, HOUSING BS-071762E549
...
180
CROSSBAR, FRONT BS-071152E549
...
181
BUSHING BS-672279MA
...
183
SCREW BS-26X221MA
...
200
TRANSMISSION BS-672270MA
...
201
SHIELD, AXLE BS-043649
...
202
SUPPORT, AXLE BS-071411MA
...
203
BEARING, LIFTER BS-043788MA
...
210
ASSY, CROSSBAR BS-672277E549
...
211
E-RING BS-011X16MA
...
212
CAPSCREW,5/16-18X.625 BS-703822
...
213
NUT, 5/16-18, GR5 BS-703409
...
230
SUPPORT, SPRING BS-071481 Z
...
231
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
232
BUSHING BS-071480MA
...
233
SPACER BS-043844MA
...
234
SPRING BS-164X27MA
...
235
NUT, HEX FLNG,5/16-18 BS-704067
...
240
SCREW BS-26X221MA
...
241
DUST COVER BS-643616MA
...
250
LEVER, SPRING BS-672278MA
...
251
SCREW.25-20 S-T BS-26X263MA
...
252
GRIP, HEIGHT ADJ BS-071297MA
...
253
PIN, DRIVE BS-043629MA
...
254
GEAR, PINION RIGHT BS-671904MA
...
255
GEAR, PINION LEFT BS-671903MA
...
256
BELT, V BS-672271MA
...
257
WASHER, FLAT BS-17X186MA
...
258
E-RING BS-011X16MA
...
260
COVER, BELT GUARD BS-43770E701MA
...
261
COVER, BELT BS-7300724YP
...
262
SCREW BS-26X259MA
...
270
PULLEY BS-672269MA
...
271
PIN, SPRING BS-97129MA
...
275
BRACKET, CABLE BS-672819 Z
...
276
SCREW, HEX, 1/4-20X.5 BS-704130
...
280
LINK, LIFTER ASSY BS-1102055E549
...
282
PIN, HAIR BS-0031X9MA
...
283
SPRING, EXTENSION BS-711459MA
...
284
COVER, REAR BS-071246E549
...
287
SCREW.25-20 S-T BS-26X263MA
...
300
WHL 8X2 TWIST/BAR P D BS-1101433MA
...
301
WHEEL, DRIVE - RR BS-672440MA
...
302
WASHER, FLAT BS-017X169
...
303
NUT, CNTR LCK, 3/8-16 BS-703893
...
304
HUB CAP BS-672446
...
305
WASHER BS-017X91MA
...
310
HUBCAP T-BAR LG-RIM D BS-672446MA
...
590
DEFLECTOR, CHUTE BS-071770MA
...
591
COVER, MULCH BS-071769
...
592
SPRING, TORSION BS-166X38MA
...
593
ROD, PIVOT BS-215X16 Z
...
594
CAP, PUSH ON BS-028X42MA
...
595
SEAL, FOAM BS-712012
...
620
MULCHER PLUG-SMALL BS-071250MA
