218910x43B Murray - Walk-Behind Mower (2004)

Model: 218910x43B

Back To Assemblies

Save Part Not Listed?
product name

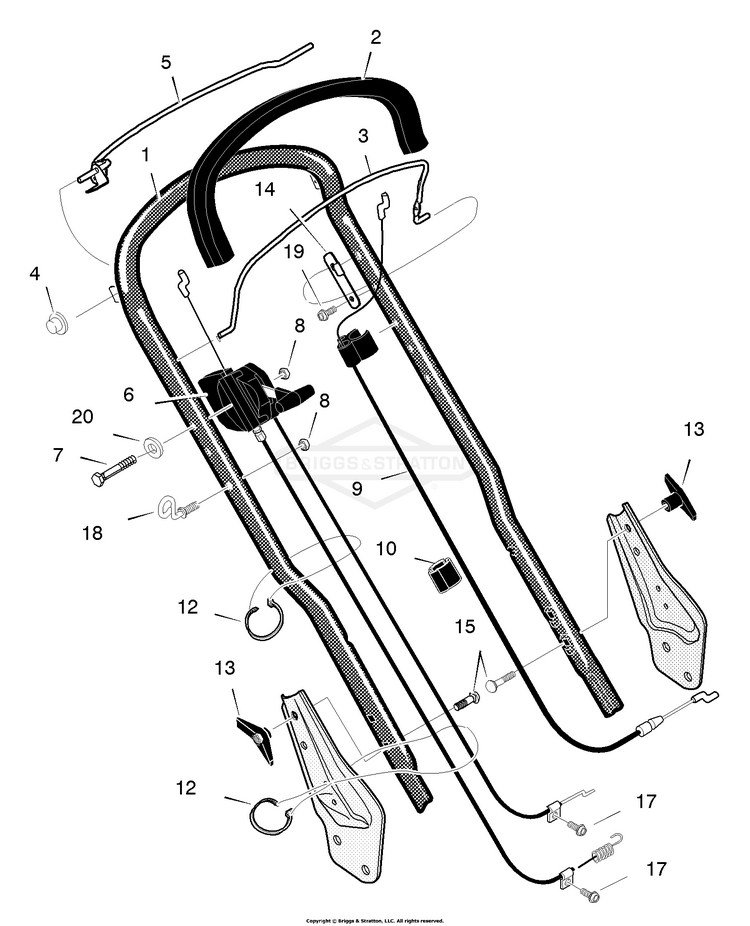

Handle Assembly

...
...
1
HANDLE, UPPER BS-1102050E701MA
...
2
SLEEVE, HANDLE BS-1101765MA
...
3
LEVER, STOP BS-1101766E701MA
...
4
PUSH CAP BS-028X82MA
...
5
LEVER ASSEMBLY, DRIVE BS-1102070E701MA
...
6
DRIVE CONTROL & CABLE BS-1101990MA
...
7
BOLT BS-001X93MA
...
8
NUT, 1/4-20, NYLOCK BS-703232
...
9
CABLE, STOP BS-1101960MA
...
10
CLIP, CABLE BS-1101353MA
...
12
TIE,STRAP-REMOVABLE BS-071372MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
BRACKET, STOP BS-1101962E701MA
...
15
BOLT, CARRIAGE BS-002X77MA
...
17
SCREW-#10X.5 B W/WAS BS-26X245MA
...
18
ROPE GUIDE-UPPER BS-071530MA
...
19
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
20
WASHER BS-703332
