21875x51C Murray - Walk-Behind Mower (2000)

Model: 21875x51C

Back To Assemblies

Save Part Not Listed?
product name

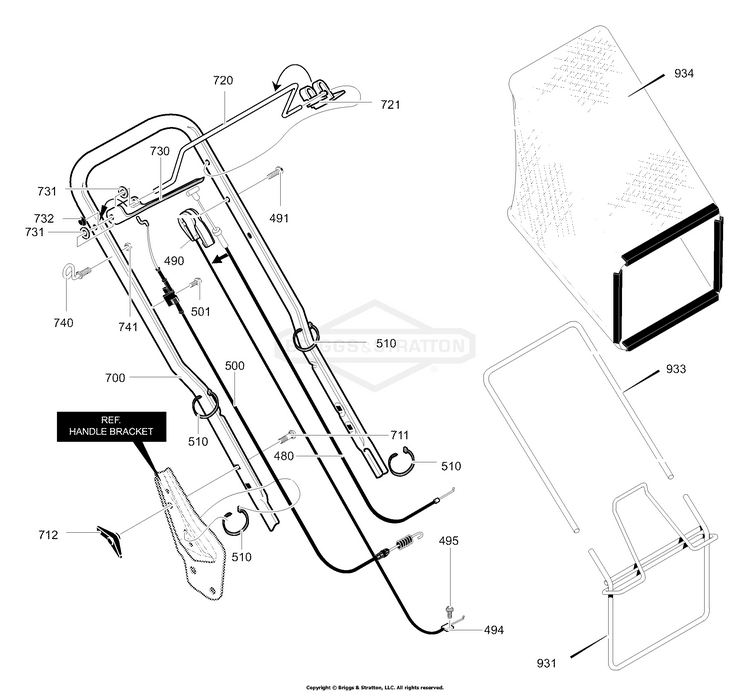

Handle & Bag Assembly

...
...
480
Cable, Stop BS-672530MA
...
490
T-Cable BS-672539MA
...
491
Screw 1/4-20x2.00 BS-323035MA
...
494
CABLE, CLUTCH / BRAKE BS-7012425YP
...
495
ROPE, Starter BS-66574
...
500
Drive Cable BS-672545MA
...
501
Screw, 10-16x.75 BS-710269
...
510
Cable Tie BS-712267
...
700
Handle BS-672286-846
...
711
Bolt, Carriage 5/16-18x2 BS-710175
...
712
WINGKNOB, 5/16-18 BS-703065
...
720
Lever, Stop Engine BS-672429-860
...
721
Bracket, Stop Lever BS-643628
...
730
Lever, Drive Control BS-671566MA
...
731
Washer, Nylon BS-710491
...
732
JET, Main BS-231739
...
740
Rope Guide BS-672510MA
...
741
Nut, 1/4-20 Hexnyl BS-710203
...
931
Bag, Frame Assy. BS-672293MA
...
933
TUBE-BAG TOP 20RB BS-071592MA
...
934
Bag, Catcher BS-672575
Schematic Image Zoomed
