21875x51C Murray - Walk-Behind Mower (2000)

Model: 21875x51C

Back To Assemblies

Save Part Not Listed?
product name

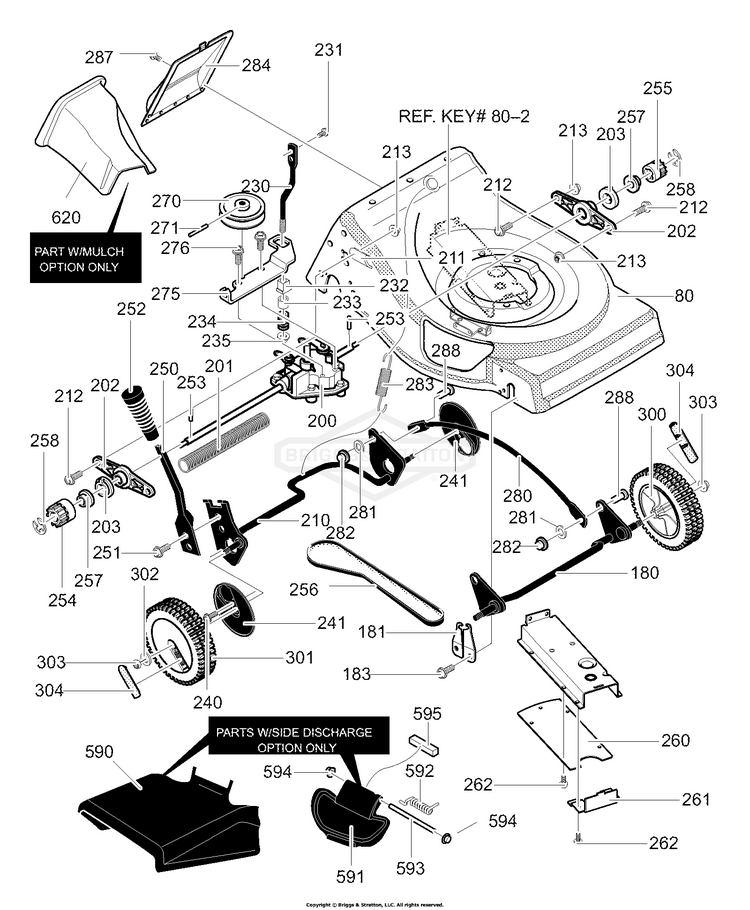

Drive & Wheel Assembly

...
...
80
Assy., Frame BS-672274-860
...
180
Assy., Crossbar Front BS-71152-860
...
181
Bushing, Front BS-672279MA
...
183
Screw, 1/4-14x.50 BS-710270
...
200
Transmission BS-672042MA
...
201
Shield, Axle BS-643649
...
202
Support, Axle BS-671411
...
203
Bearing, Lifter BS-643788
...
210
Assy., Crossbar RR BS-672277-860
...
211
Retainer, Bearing BS-071482
...
212
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
213
Nut, 5/16-18Wdfllk BS-710205
...
230
Support, Spring BS-071481
...
231
Screw, 1/4-20x.63 BS-710274
...
232
Bushing, Spring BS-071480MA
...
233
Spacer BS-043844MA
...
234
Spring, Compression BS-710327
...
235
Nut, 5/16-18 Wdfllk BS-710205
...
240
Screw, 1/4-14x.50 BS-710270
...
241
Dust Cover BS-643616MA
...
250
Lever, Spring BS-672278MA
...
251
Screw, 1/4-20x.63 BS-710274
...
252
Knob, Hgt Adjust BS-671297MA
...
253
Pin, Drive BS-643629
...
254
Gear, Pinion Right BS-671904MA
...
255
Gear, Pinion Left BS-671903MA
...
256
Belt, 2L 15.75L BS-710190
...
257
HOUSING, Blower BS-710364
...
258
Ring, Ret. E BS-020864
...
260
Cover, Lower Belt Guard BS-43770-860
...
261
Cover, Front Belt BS-71239-860
...
262
Screw, 10-16x.50 BS-710273
...
270
Pulley, 2L BS-672269MA
...
271
Pin, Spring BS-710294
...
275
Bracket, Transaxle BS-671925
...
276
Screw, 1/4-20x.50 BS-710264
...
280
Link, Lifter BS-43720-860
...
281
Nut, Push On BS-712072
...
282
JET, Main BS-231739
...
283
Spring, Ext. BS-711459MA
...
284
Cover, Rear Trans. BS-71246-860
...
287
Screw, 1/4-20x.63 BS-711863
...
288
Pin, Clevis BS-711542MA
...
300
Tire & Rim BS-643618
...
301
Wheel, Drive BS-643617
...
302
PANEL, Control BS-711573
...
303
Nut, 3/8-16 BS-710140
...
304
Hub Cap BS-643615
...
--
Instruction Book BS-F-000433M
