21865x7A Murray - Walk-Behind Mower (1996)

Model: 21865x7A

Back To Assemblies

Save Part Not Listed?
product name

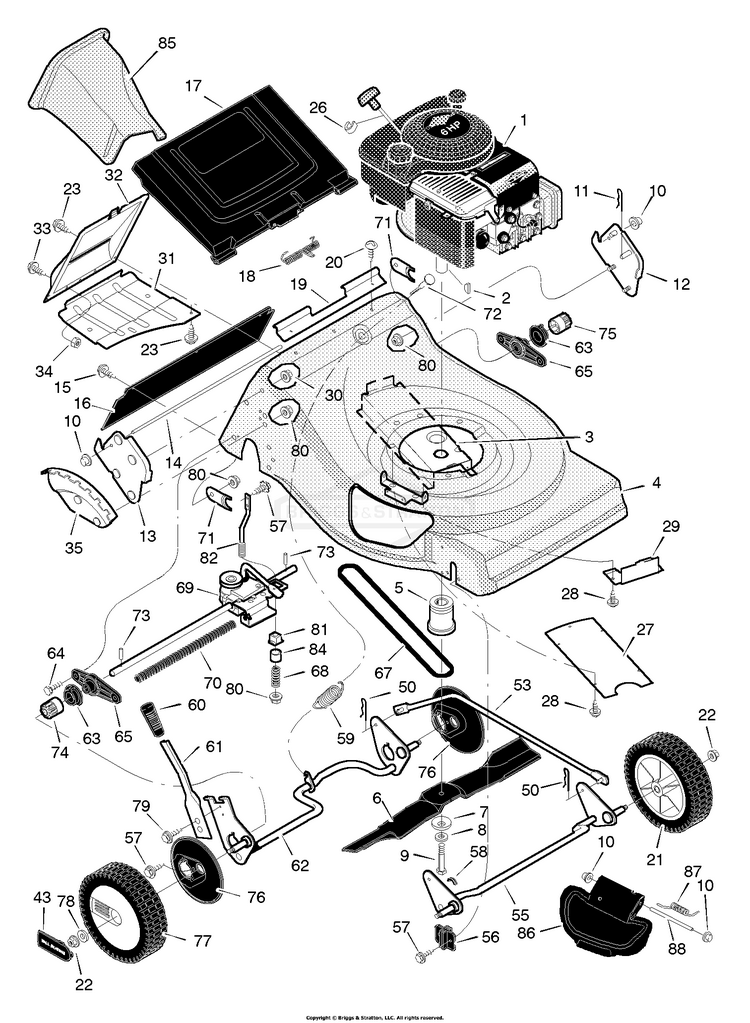

Mower Housing Assembly

...
...
2
KEY, Drive Pulley BS-692193
...
3
Bolt, Engine BS-0025X6MA
...
5
Adapter, Blade BS-071058
...
6
Blade BS-071584E701MA
...
7
Washer, Belleville BS-17X137MA
...
8
Washer BS-17X124MA
...
9
Bolt BS-01X142MA
...
10
Push On Cap BS-028X42MA
...
11
Pin, Hair BS-031X10MA
...
12
Handle Bracket, Left BS-71097E701
...
13
Handle Bracket, Right BS-71096E701
...
14
Rod, Door Pivot BS-215X14 Z
...
15
SCREW-#10X.5 B W/WAS BS-26X245MA
...
16
Deflector, Rear BS-043640
...
17
Door, Rear BS-071409
...
18
Spring, Torsion BS-166X33MA
...
19
Spacer, Door BS-071410MA
...
20
Screw BS-26X259MA
...
21
Wheel BS-071132MA
...
--
Wheel, Front - Gray BS-071132MA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
Screw BS-26X214MA
...
26
Stop, Rope BS-042189MA
...
27
Cover, Belt BS-43770E701MA
...
28
Screw BS-26X259MA
...
29
COVER, BELT BS-7300724YP
...
30
NUT, 5/16-18, GR5 BS-703409
...
31
Cover, Lower BS-71245E701
...
32
Cover, Rear BS-71246E701
...
33
Screw BS-421
...
34
Nut BS-15X102MA
...
35
Bracket, Index BS-071575
...
43
Hub Cap (Optional) BS-043615MA
...
53
Link, Lifter BS-43721E701
...
55
Crossbar, Front BS-71152E701
...
56
Clip, Retainer BS-071167MA
...
57
Screw BS-26X221MA
...
58
Bushing BS-043731MA
...
59
Spring, Extension BS-165X97
...
60
Grip, Height Adjuster BS-071297MA
...
61
Lever, Spring BS-672278MA
...
62
Crossbar, Rear BS-71572
...
63
Bearing, Lifter BS-043788MA
...
64
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
65
Support, Axle BS-071411MA
...
67
Belt, Drive BS-037X64A
...
68
Spring BS-16427
...
69
Transmission TIM .50 BS-071549
...
70
Shield, Axle BS-043649
...
71
Retainer, Bearing BS-071482 Z
...
72
Support, Lifter Spring BS-071576
...
73
Pin, Drive BS-043629MA
...
74
Pinion, Right BS-071286
...
75
Pinion, Left BS-071287
...
76
Cover, Dust BS-043616
...
77
Wheel, Drive - White BS-043617
...
--
Wheel, Drive - Gray BS-071133MA
...
78
WASHER, FLAT, .377X1 BS-703966
...
79
SCREW.25-20 S-T BS-26X263MA
...
80
NUT, HEX FLNG,5/16-18 BS-704067
...
81
Bushing BS-071480MA
...
82
Support, Spring BS-071481 Z
...
84
Spacer BS-043844MA
...
85
MULCHER PLUG-SMALL BS-071250MA
...
86
Cover, Mulch BS-071769
...
87
Spring, Torsion BS-166X38MA
...
88
Rod BS-215X16 Z
...
--
Book, Instruction BS-F-96429
