21855x6B Murray - Walk-Behind Mower (2000)

Model: 21855x6B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

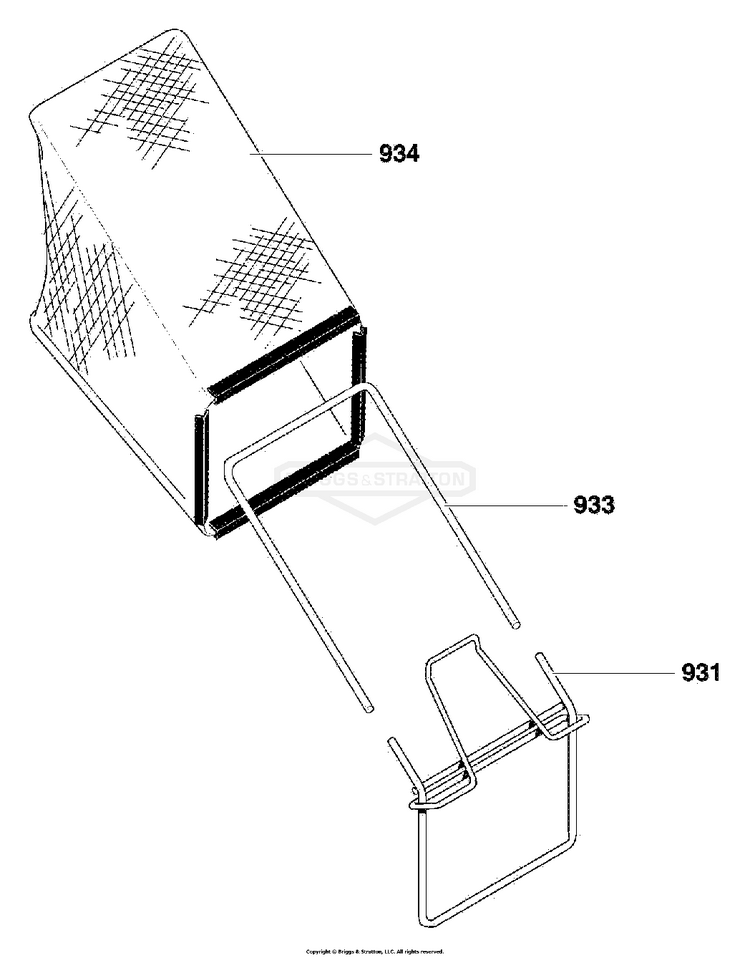

Bag Assembly

...
...
931
ASSY, BAG FRAME BS-672293MA
...
933
TUBE-BAG TOP 20RB BS-071592MA
...
934
BAG, 21 BS-672295

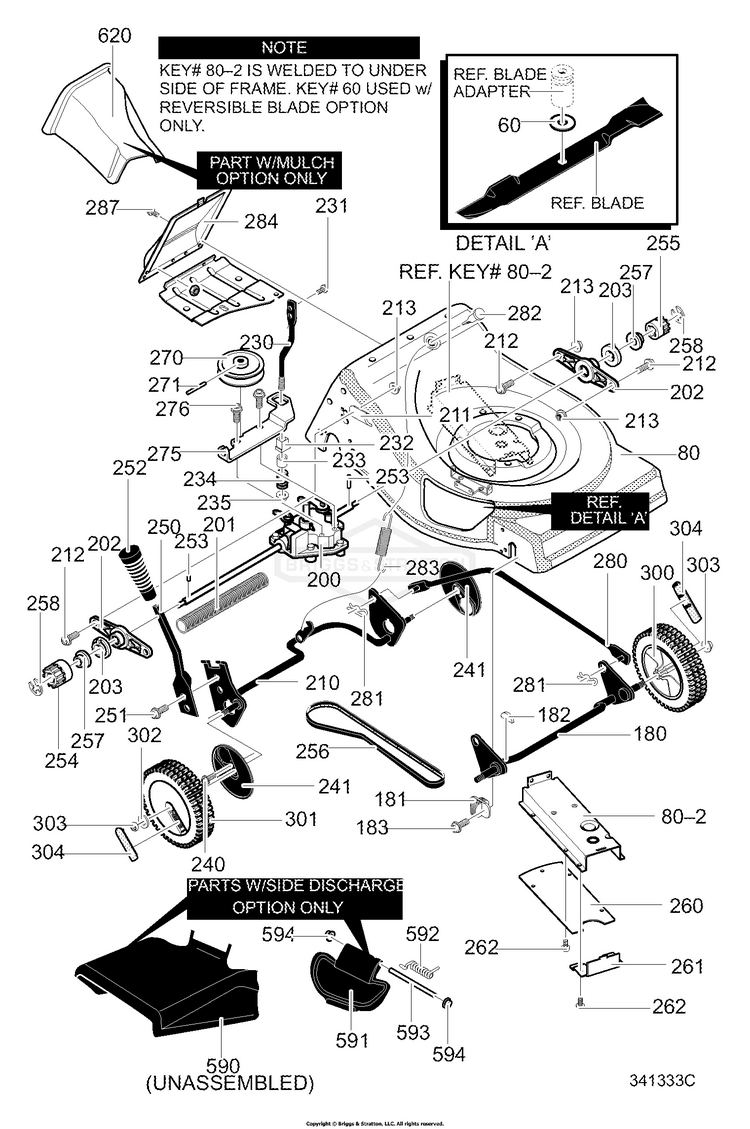

Drive & Wheel Assembly

...
...
80
ASSY, FRAME BS-672273-850
...
180
CROSSBAR, FRONT BS-71152-850
...
181
BUSHING BS-672279MA
...
183
SCREW BS-710270
...
200
TRANSMISSION BS-672042MA
...
202
SUPPORT, AXLE BS-671411
...
203
BEARING, LIFTER BS-643788
...
210
ASSY, CROSSBAR BS-672277-850
...
211
RETAINER, BEARING BS-071482 Z
...
212
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
213
NUT BS-710205
...
230
SUPPORT, SPRING BS-071481
...
231
SCREW, 1/4-20X.63 BS-711863
...
232
BUSHING, SPRING BS-071480MA
...
233
SPACER BS-043844MA
...
234
SPRING, COMP. BS-710327
...
235
NUT, 5/16-18 BS-710205
...
240
SCREW, 1/4-20X.50 BS-710270
...
241
DUST COVER BS-643616MA
...
250
LEVER, SPRING BS-672278MA
...
251
SCREW BS-710274
...
252
KNOB, HEIGHT ADJ BS-671297MA
...
253
PIN, DRIVE BS-643629
...
254
GEAR, PINION RT BS-671904MA
...
255
GEAR, PINION LEFT BS-671903MA
...
256
BELT BS-710190
...
257
HOUSING, Blower BS-710364
...
258
E-RING BS-020864
...
260
COVER,LOWER BELT BS-43770-850
...
261
COVER,FRONT BELT BS-71239-850
...
262
SCREW, 10-16X.50 BS-710273
...
270
PULLEY BS-672269MA
...
271
SPRING PIN BS-710294
...
275
BKT, TRANS. CABLE BS-671295 Z
...
276
SCREW, 1/4-20X.50 BS-710264
...
280
ASSY., LINK LIFTER BS-43721-850
...
281
HAIR PIN BS-710292
...
283
SPRING, EXTENSION BS-711459MA
...
284
COVER, REAR BS-71246-850
...
287
SCREW, 1.4-20X.63 BS-711863
...
300
TIRE & RIM BS-671134
...
301
DRIVE WHEEL BS-671133
...
303
NUT BS-710140
...
304
HUB CAP BS-672122MA
...
307
HUB CAP BS-671123
...
308
SPRING WASHER BS-710258
...
590
DEFLECTOR, CHUTE BS-071770MA
...
591
COVER, MULCH BS-071769
...
592
SPRING, TORSION BS-166X38MA
...
593
ROD, PIVOT BS-340827 Z
...
594
JET, Main BS-231739
...
595
SEAL, FOAM BS-712012
...
620
MULCHER PLUG-SMALL BS-071250MA

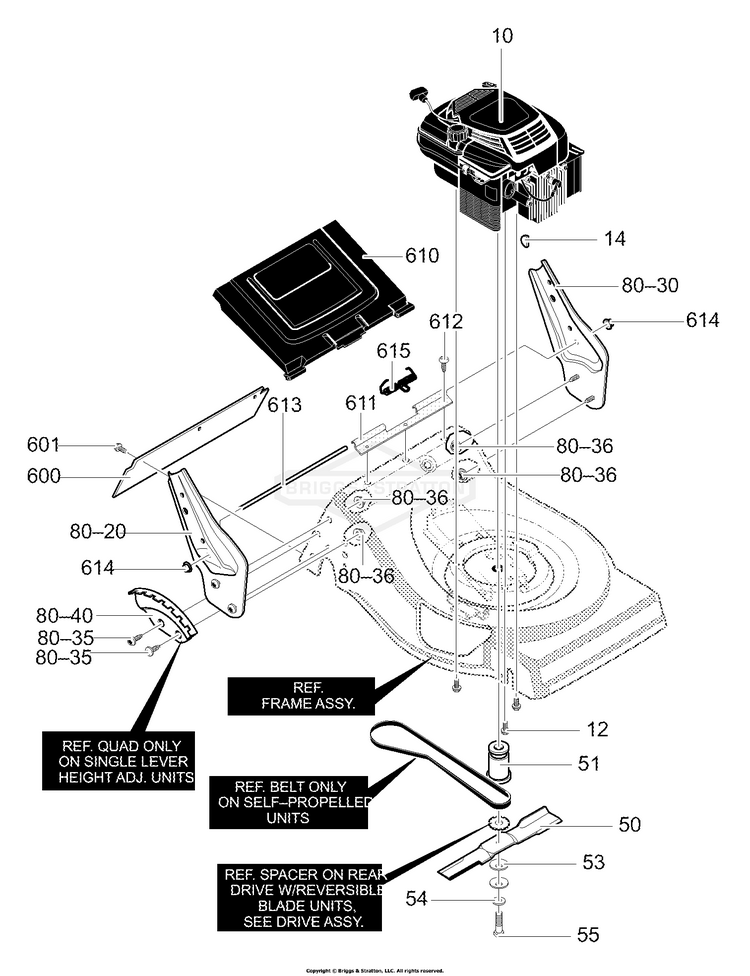

Engine Mount

...
...
12
SCREW, 3/8-16 x 1.00 BS-47792MA
...
14
WOODRUFF KEY 505 BS-2125
...
50
BLADE, 21" MULCH BS-71584
...
51
ADAPTER, BLADE 21" BS-671058MA
...
53
WASHER, BEVELLE BS-710210
...
54
WASHER, FLAT .406 x .812 x .06 BS-710207
...
55
SCREW M6 BS-710074
...
80-20
BRACKET, HANDLE RH BS-672766
...
80-30
BRACKET, HANDLE LH BS-672767
...
80-35
SCREW, 5/16-18 x 0.63 BS-710277
...
80-36
NUT, 5/16-18, HEXWDFLK WHIZ BS-710204
...
80-40
QUADRANT, HEIGHT ADJ BS-672276
...
600
DEFLECTOR, REAR BS-043640
...
601
SCREW, 10-16X.50 BS-710271
...
610
DOOR, REAR 21 BS-071409
...
611
SPACER,RR DOOR BS-071410MA
...
612
SCREW, 10-16X.50 BS-710273
...
613
ROD, PIVOT RR DOOR.25X18.5 BS-672282 Z
...
614
JET, Main BS-231739
...
615
SPRING, TORSION BS-340823
...
--
OWNER'S MANUAL BS-F-000475M

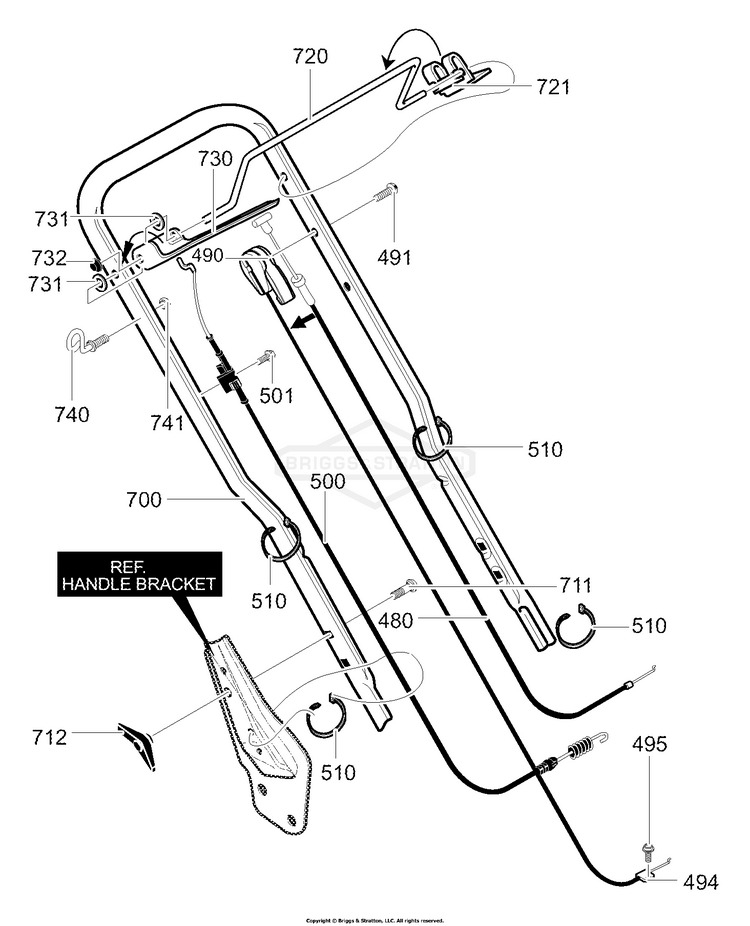

Handle Assembly

...
...
480
CABLE, STOP BS-672530MA
...
490
T-CABLE BS-672539MA
...
491
SCREW, 1/4-20X2.00 BS-323035MA
...
494
CABLE, CLUTCH / BRAKE BS-7012425YP
...
495
ROPE, Starter BS-66574
...
500
DRIVE CABLE BS-672545MA
...
501
SCREW, 10-16X.75 BS-710269
...
510
CABLE TIE BS-712267
...
700
HANDLE BS-672286-846
...
711
BOLT, 5/16-18X2.00 BS-710175
...
712
WINGKNOB, 5/16-18 BS-703065
...
720
LEVER, STOP ENGINE BS-672429-850
...
721
BRACKET, STOP LEVER BS-643628
...
730
DRIVE CONTROL LEVER BS-671566MA
...
731
WASHER, NYLON BS-710491
...
732
JET, Main BS-231739
...
740
GUIDE, ROPE 1/4-20 BS-672510MA
...
741
NUT, 1/4-20 BS-710203
