21785x8D Murray - Walk-Behind Mower (1996)

Model: 21785x8D

Save Part Not Listed?
product name

Popular Parts

Popular Parts

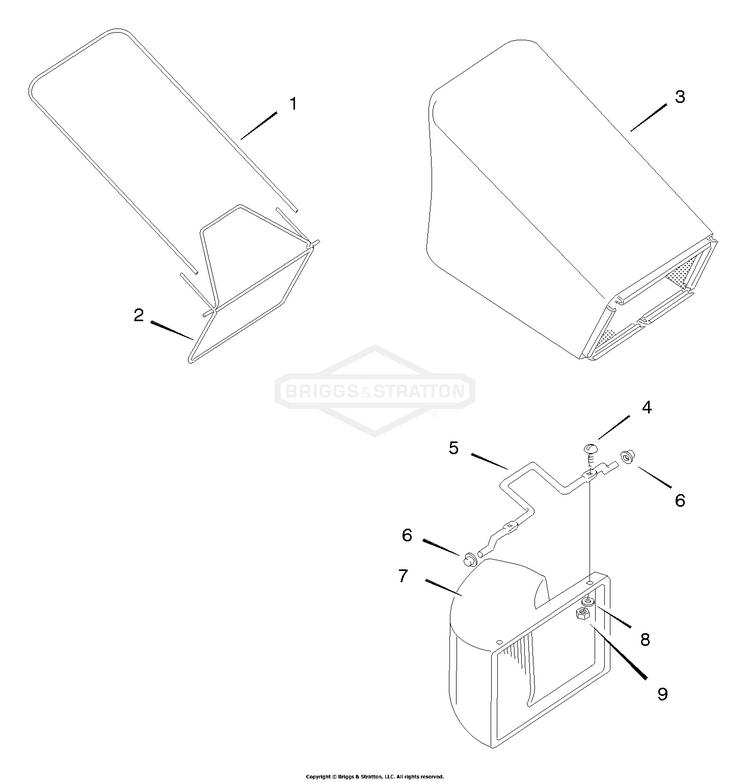

Bag Assembly

...
...
1
TUBE-BAG TOP 20RB BS-071592MA
...
2
Frame Assembly BS-043666
...
3
Bag, Cloth BS-071589MA
...
4
Screw BS-004X21MA
...
5
Frame Assembly BS-043755 Z
...
6
Push On Cap BS-028X39MA
...
7
Side Discharge Attachment - Optional; Model 24072A Side Discharge Attachment. This optional accessory gives you the option of discharging the grass to the side. BS-043754
...
8
Washer BS-17X173
...
9
Nut BS-15X102MA

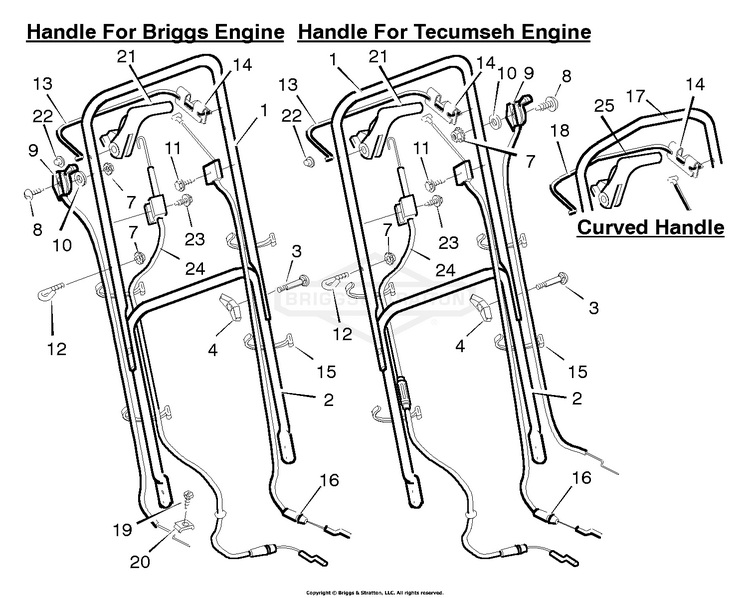

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
--
Handle, Upper-Straight (Gray) BS-71581E724
...
2
LOWER HANDLE 21/22 MA BS-071137E701MA
...
--
LOWER HANDLE 21/22 MA BS-071137E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
T-CABLE RH-W 21F SE (For Models with Briggs & Stratton engines.) BS-071177MA
...
--
Throttle Control (For Models with Tecumseh engines.) BS-071556MA
...
10
Washer BS-17X188
...
11
Screw BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Stop Lever - Straight BS-043651E700MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable * BS-071563MA
...
--
Engine Stop Cable * BS-071562MA
...
17
Handle, Upper- Curved (Black) BS-071580E701MA
...
--
Handle, Upper- Curved (Gray) BS-71580E724
...
18
Stop Lever - Curved BS-043791
...
19
Screw * BS-26X268MA
...
20
Clamp (For Models with Briggs & Stratton engines) BS-042294
...
21
Lever, Drive - Straight BS-043722
...
22
Push On Cap BS-028X48MA
...
23
Screw BS-26X256MA
...
24
Cable, Drive BS-071638MA
...
25
Lever, Drive - Curved BS-043723

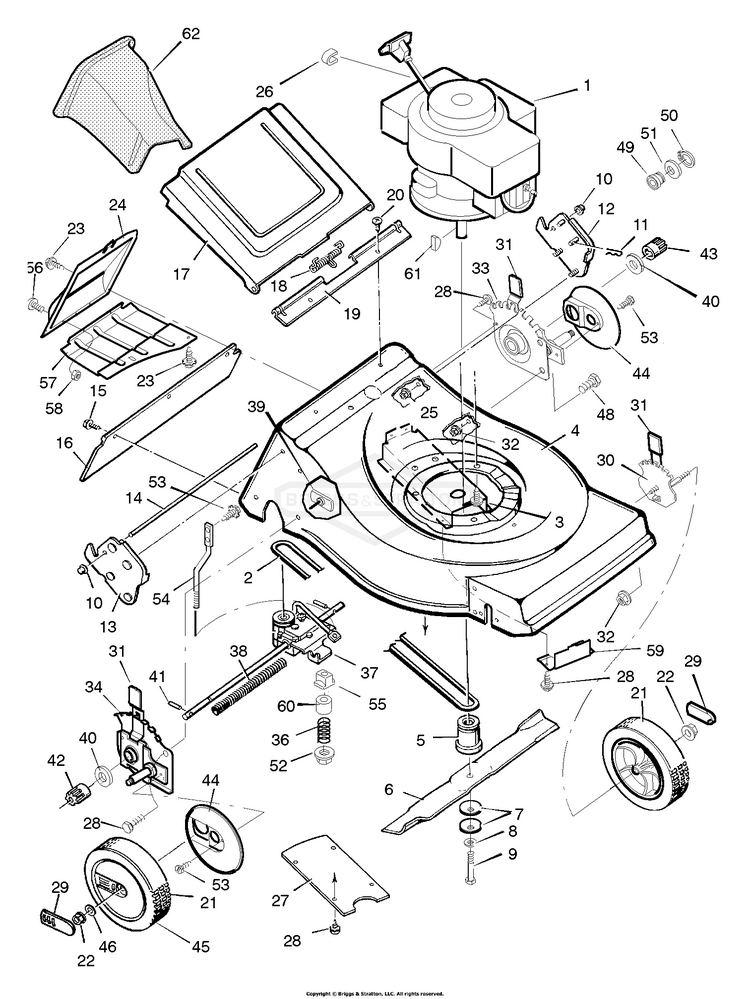

Mower Housing Assembly

...
...
2
Belt, Drive BS-037X64A
...
3
Bolt, Engine BS-0025X6MA
...
4
Housing BS-070136
...
5
Adapter, Blade BS-071058
...
6
Blade BS-71584HT
...
7
Washer, Belleville BS-17X137MA
...
8
Washer BS-17X124MA
...
9
Bolt BS-01X142MA
...
10
Push On Cap BS-028X42MA
...
11
Pin, Hair BS-031X10MA
...
12
Handle Bracket, Left BS-71097E701
...
13
Handle Bracket, Right BS-71096E701
...
14
Rod, Door Pivot BS-215X14 Z
...
15
SCREW-#10X.5 B W/WAS BS-26X245MA
...
16
Deflector, Rear BS-043640
...
17
Door, Rear BS-071409
...
18
Spring, Torsion BS-166X33MA
...
19
Spacer, Door BS-071410MA
...
20
Screw BS-26X259MA
...
21
Wheel BS-071132MA
...
--
Wheel, Front - Gray BS-071132MA
...
22
NUT, CNTR LCK, 3/8-16 BS-703893
...
23
Screw BS-26X214MA
...
24
Transmission, Cover BS-71246E701
...
25
NUT, 5/16-18, GR5 BS-703409
...
26
Stop, Rope BS-042189MA
...
27
Cover, Belt BS-43770E701MA
...
28
Screw BS-26X259MA
...
29
Hub Cap (Optional) BS-043615MA
...
30
Height Adjuster, Front BS-401025MA
...
31
Grip BS-043394MA
...
32
NUT, 3/8-16 BS-703333
...
33
Height Adjuster, Left Rear BS-401029MA
...
34
Height Adjuster, Right Rear BS-401028MA
...
36
Spring, Extension BS-16427
...
37
Transmission BS-071549
...
38
Shield, Axle BS-043649
...
39
Nut, Special BS-0109X7
...
40
Washer, Thrust BS-17X186MA
...
41
Pin, Drive BS-043629MA
...
42
Pinion, Right BS-071286
...
43
Pinion, Left BS-071287
...
44
Cover, Dust BS-071032MA
...
45
Wheel, Drive - White BS-043617
...
--
Wheel, Drive - Gray BS-071133MA
...
46
WASHER, FLAT, .377X1 BS-703966
...
47
Screw BS-26X185
...
48
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
49
Bearing and Retainer BS-070250MA
...
50
Ring, Retaining BS-011X24MA
...
51
Washer BS-17X178MA
...
52
NUT, HEX FLNG,5/16-18 BS-704067
...
53
Screw BS-26X221MA
...
54
Support, Spring BS-071481 Z
...
55
Bushing BS-071480MA
...
56
Screw BS-421
...
57
Cover, Lower BS-71245E701
...
58
Nut BS-15X102MA
...
59
COVER, BELT BS-7300724YP
...
60
Spacer BS-043844MA
...
61
KEY, Drive Pulley BS-692193
...
62
MULCHER PLUG-SMALL BS-071250MA
...
--
Instruction Book BS-F-96417
