21678x30A Murray - Walk-Behind Mower (1996)

Model: 21678x30A

Save Part Not Listed?
product name

Bag Assembly

...
...
1
TUBE-BAG TOP 20RB BS-071592MA
...
2
Frame Assembly BS-043666
...
3
Bag, Cloth BS-071736
...
4
Screw BS-004X21MA
...
5
Frame Assembly BS-043755 Z
...
6
Push On Cap BS-028X39MA
...
7
Side Discharge Attachment * (Optional) BS-043754
...
8
Washer BS-17X173
...
9
Nut BS-15X102MA

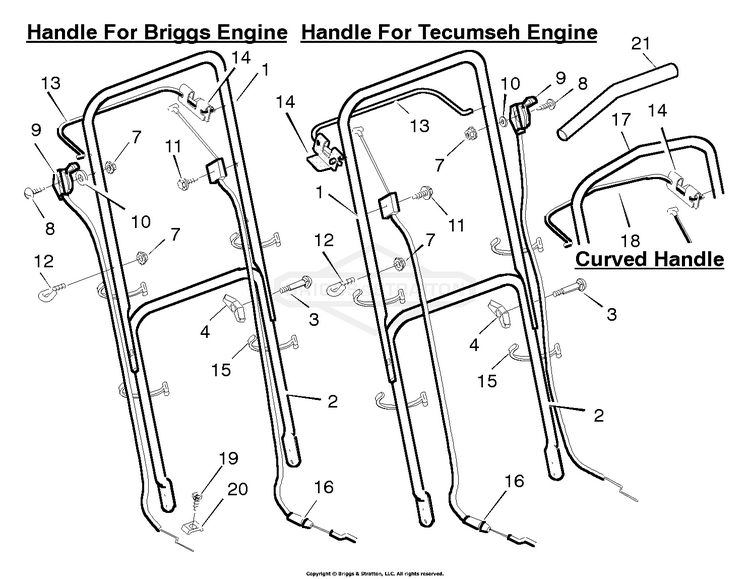

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
--
Handle, Upper-Straight (Gray) BS-71581E724
...
2
LOWER HANDLE 21/22 MA BS-071137E701MA
...
--
LOWER HANDLE 21/22 MA BS-071137E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
T-CABLE RH-W 21F SE (For Models with Briggs & Stratton engines.) BS-071177MA
...
--
Throttle Control (For Models with Tecumseh engines.) BS-071556MA
...
10
Washer BS-17X188
...
11
Screw BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Stop Lever - Straight BS-043653E701MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable * BS-071563MA
...
--
Engine Stop Cable * BS-071692MA
...
17
Handle, Upper-Curved (Black) BS-071580E701MA
...
--
Handle, Upper-Curved (Gray) BS-71580E724
...
18
Stop Lever - Curved BS-043792MA
...
19
Screw * BS-26X268MA
...
20
Clamp (For Models with Briggs & Stratton engines) BS-042294
...
21
Foam (Optional) BS-071703

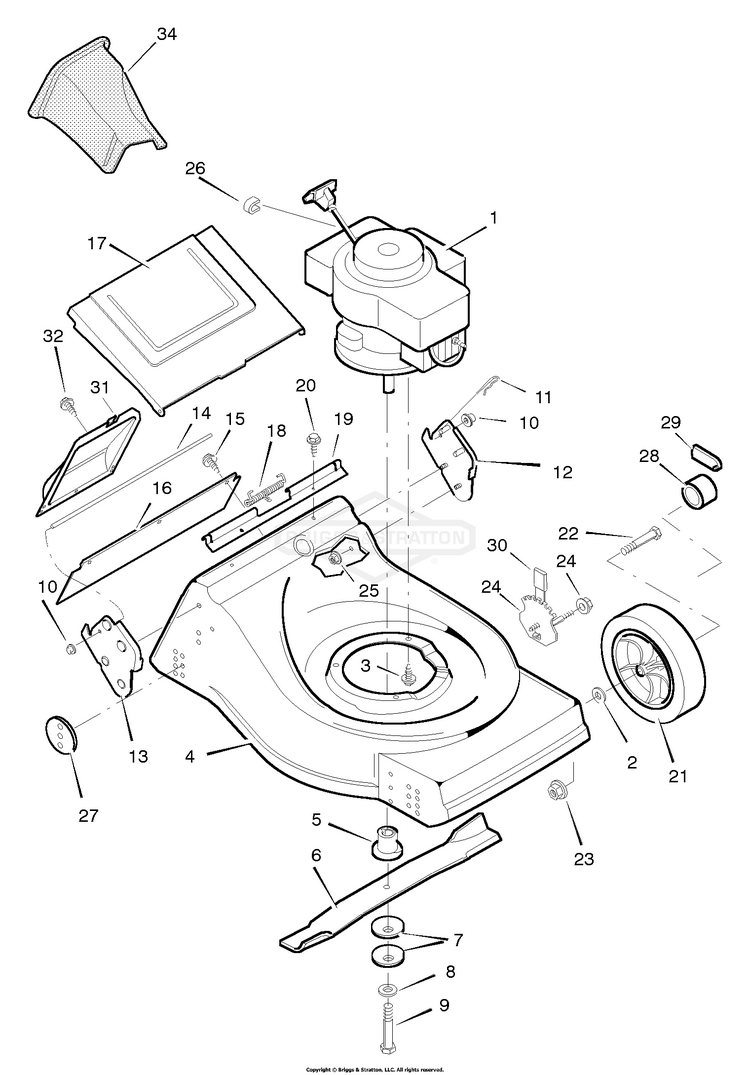

Mower Housing Assembly

...
...
2
PIVOT BS-2108512SM
...
3
Bolt, Engine BS-0025X6MA
...
4
Housing BS-070162
...
5
Adapter, Blade BS-071056MA
...
6
Blade BS-071584E701MA
...
7
Washer, Belleville BS-17X137MA
...
8
Washer BS-17X124MA
...
9
Bolt, Hex BS-01X142MA
...
10
Push- On Cap BS-028X42MA
...
11
Pin, Hair BS-031X10MA
...
12
Bracket, Left Handle BS-71097E701
...
13
Bracket, Right Handle BS-71096E701
...
14
Rod, Door Pivot BS-215X14 Z
...
15
SCREW-#10X.5 B W/WAS BS-26X245MA
...
16
Deflector, Rear (Model with Height Adjusters) BS-043640
...
--
Deflector, Rear (Model without Height Adjusters) BS-042678
...
17
Door, Rear BS-071517
...
18
Spring, Torsion BS-166X33MA
...
19
Spacer, Door BS-071410MA
...
20
Screw BS-26X259MA
...
22
Bolt, Axle BS-009X10MA
...
23
Nut, Flange BS-15X682
...
24
Adjuster, Height BS-401025MA
...
25
NUT, 5/16-18, GR5 BS-703409
...
26
Stop, Rope BS-042189MA
...
27
Spacer BS-043784MA
...
28
Hub Cap (Optional) BS-020107MA
...
29
Hub Cap (Optional) BS-043847MA
...
--
Hub Cap 0ptional; (For 8x2 in. Plastic Wheel) BS-043615MA
...
30
Grip BS-043394MA
...
31
Cover, Transmission BS-71246E701
...
32
Screw BS-26X214MA
...
34
MULCHER PLUG-SMALL BS-071250MA

Wheels And Tires

...
...
A
WHEEL & TIRE ASSEMBLY, Light Gray, 8" BS-020104MA
...
A
8 inch Plastic, Gray BS-071598
...
A
8 inch Metal, White BS-043273
...
B
7 inch Plastic, White BS-071148
...
B
7 inch Plastic, Gray BS-71596
...
C
6 inch Plastic, White BS-042174
...
C
Tire & Rim BS-336546MA
...
C
7 inch Plastic, Gray BS-071597
...
C
8 inch Plastic, White BS-020271
...
C
8 inch Metal, White BS-043414
...
D
7 inch Plastic, White BS-042172
...
D
WHEEL & TIRE ASSEMBLY, White, 8" BS-042173MA
...
D
8 inch Plastic, Gray BS-071599
...
E
WHEEL & TIRE ASSEMBLY, White, 8" BS-020105MA
...
E
8 inch Plastic, Gray BS-071600
...
E
8 inch Metal, White BS-043274MA
...
F
Wheel BS-071132MA
...
F
8 inch Plastic, Gray BS-071132MA
...
F
Wheel BS-071134MA
...
F
8 inch Ball Bearings, Gray BS-071134MA
...
G
14 inch Spoke BS-042666
...
G
16 inch Spoke BS-070106
...
H
WHEEL & TIRE ASSEMBLY, 16" Spoke BS-070119MA
