21674x62A Murray - Walk-Behind Mower (1996)

Model: 21674x62A

Back To Assemblies

Save Part Not Listed?
product name

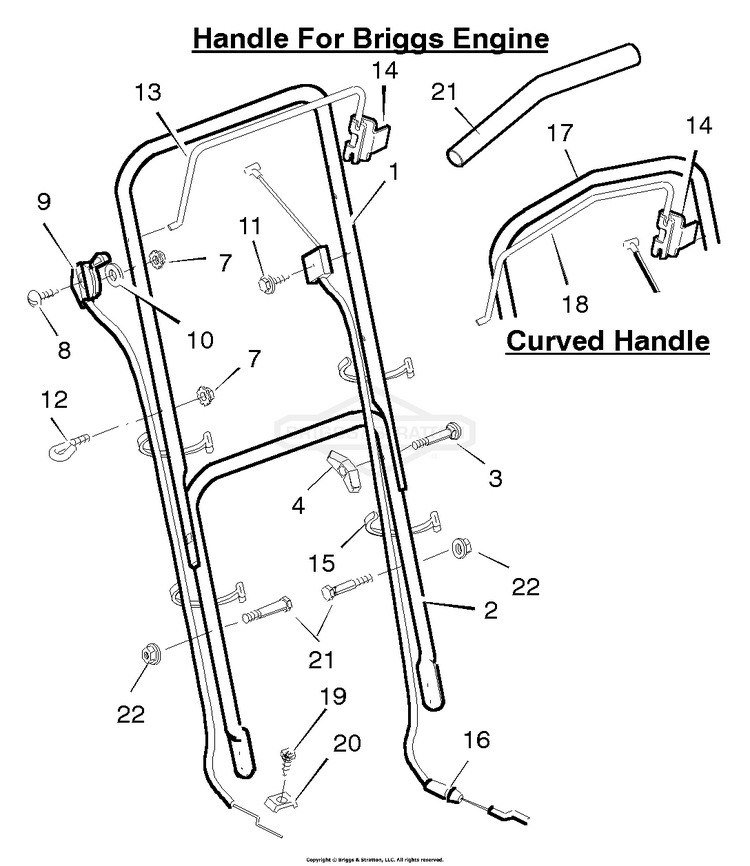

Handle Assembly

...
...
1
HANDLE UPPER 22SD P,S BS-071581E701MA
...
2
LOWER HANDLE 21/22 MA BS-071137E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
T-CABLE RH-W 21F SE BS-071177MA
...
10
Washer BS-17X188
...
11
Screw BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Engine Stop Lever-Straight BS-043653E701MA
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-071693MA
...
17
Handle, Upper- Curved BS-071580E701MA
...
18
Engine Stop Lever-Curved BS-071612
...
19
Screw BS-26X268MA
...
20
Clamp BS-042294
...
21
Foam BS-071703
