21595x8C Murray - Walk-Behind Mower (2000)

Model: 21595x8C

Save Part Not Listed?
product name

Bag Assembly

...
...
931
ASSY, BAG FRAME BS-672293MA
...
933
FRAME, BAG TOP BS-672294
...
934
BAG, 21 BS-672866MA

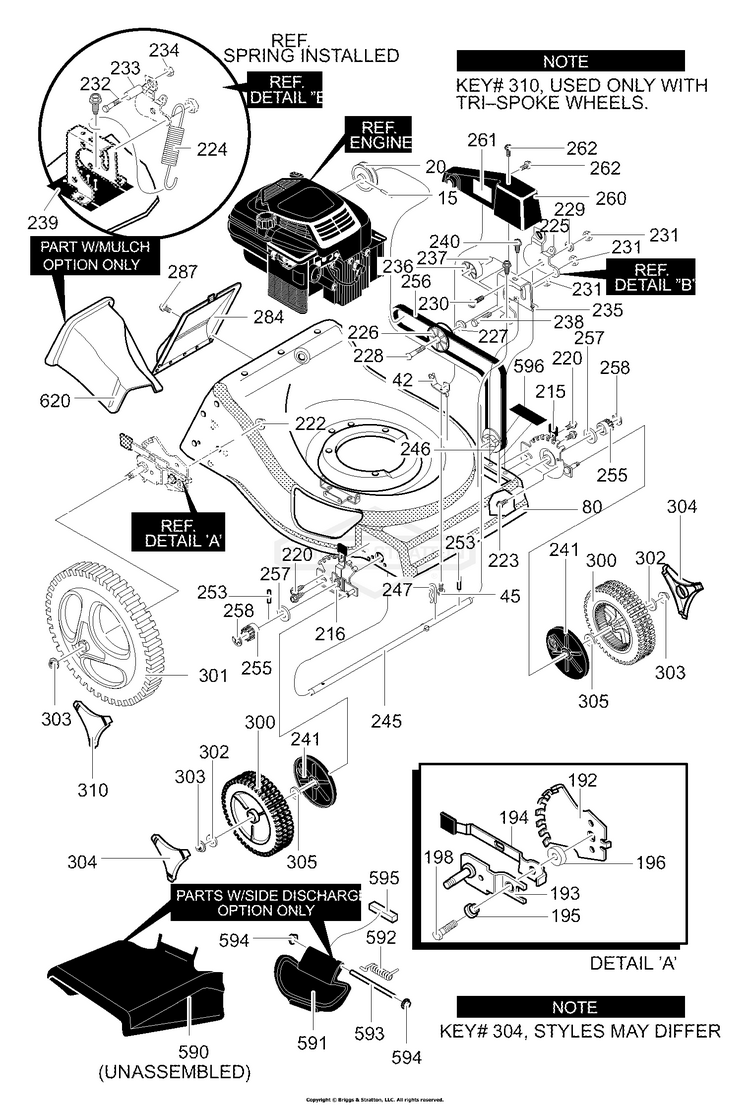

Drive & Wheel Assembly

...
...
15
PIN, SPRING BS-710293
...
20
ENGINE PULLEY BS-071434MA
...
42
BKT, DRIVE CABLE BS-71744
...
45
SCREW, #8-32X.38 BS-710274
...
80
ASSY, FRAME BS-1101007-898
...
192
INDEX PLATE BS-672765 Z
...
193
AXLE & BRACKET BS-672749
...
194
LEVER, SPRING BS-672792
...
195
SPACER, REAR BS-672795
...
196
SPACER, PLASTIC BS-672790
...
198
SCREW, 3/8-16 x 1.50 BS-710082
...
215
ASSY, LF HGT ADJ BS-672516MA
...
216
ASSY, RH HGT ADJ BS-672517MA
...
220
SCREW, 1/4-20X.63 BS-710274
...
222
NUT, 3/8-16 BS-710140
...
223
SCREW, 10-24X.38 BS-710266
...
224
EXTENSION SPRING BS-710336
...
225
IDLER ARM BS-672782
...
226
IDLER PULLEY BS-071779MA
...
227
SPACER, IDLER BS-071788MA
...
228
KEEPER, Valve BS-716520
...
229
SPACER, IDLER ARM BS-071789MA
...
230
BOLT, CARR BS-57072
...
231
NUT, 5/16-18 BS-1498
...
232
BOLT, SHOULDER BS-712351
...
233
PULLEY, ROLLER BS-672781MA
...
234
NUT, 5/16-18 BS-309936
...
235
BKT, IDLER SUPPT BS-71745
...
236
PULLEY, IDLER BS-071778MA
...
237
BEARING, SLEEVE BS-071793MA
...
238
SCREW, 5/16-18 BS-180084
...
240
SCREW, 1/4-20X.50 BS-710133
...
241
DUST COVER BS-071780MA
...
245
SHAFT, F/DR AXLE BS-071790
...
246
PULLEY, F/DR AXLE BS-071791MA
...
247
HAIR PIN BS-710292
...
253
PIN, DRIVE BS-643629
...
255
PINION GEAR BS-071792MA
...
256
BELT, V3L BS-712461
...
257
HOUSING, Blower BS-710364
...
258
RING, RET E. BS-020864
...
260
BELT COVER BS-672118
...
261
HEAT SHIELD BS-071880
...
262
SCREW, 10-24X.38 BS-310798
...
284
REAR COVER BS-071246
...
287
SCREW BS-711863
...
300
8X2.00 WHL T-BAR DR D BS-672441MA
...
301
TIRE & RIM BS-672801MA
...
302
PANEL, Control BS-711573
...
303
NUT BS-710140
...
304
HUBCAP T-BAR LG-RIM D BS-672446MA
...
305
FLAT WASHER BS-710206
...
310
HUB CAP BS-672800MA
...
590
DEFLECTOR, CHUTE BS-672046MA
...
591
COVER, MULCH BS-672045MA
...
592
SPRING, TORSION BS-166X38MA
...
593
ROD, PIVOT BS-340827 Z
...
594
JET, Main BS-231739
...
595
SEAL, FOAM BS-712012
...
596
FLAP, BELT SCRAPER BS-672799
...
620
MULCHER PLUG-SMALL BS-071250MA

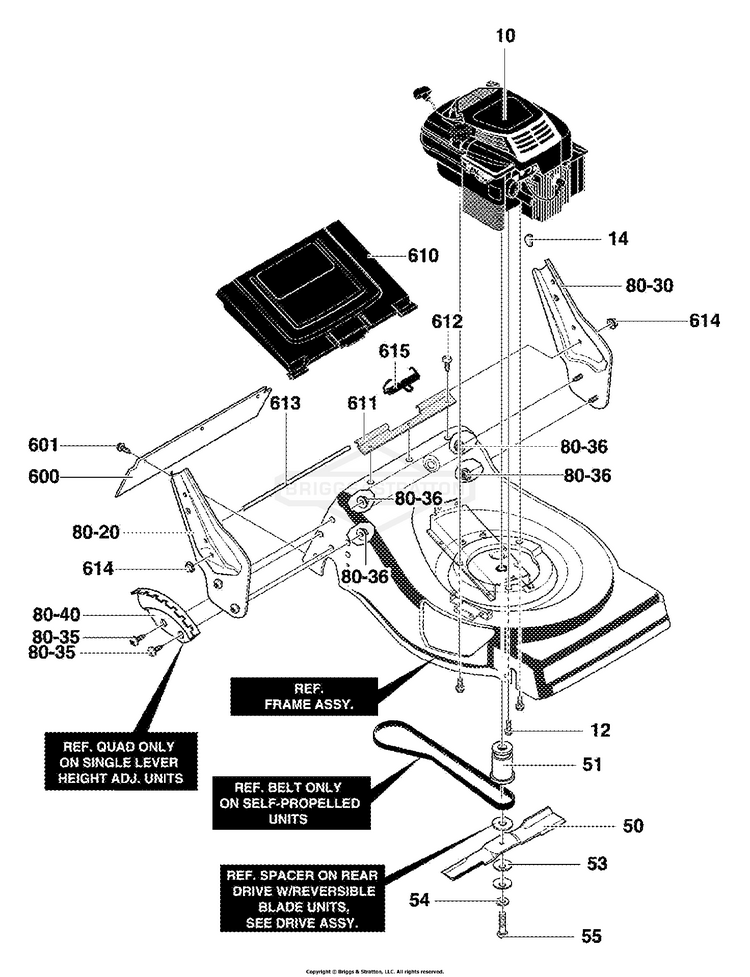

Engine Mount

...
...
12
SCREW, 3 /8-16X1.00 BS-47792MA
...
50
BLADE, 21" REVERSIBLE BS-672089
...
51
ADAPTER, BLADE 21" BS-672094MA
...
53
WASHER, BEVELLE BS-710210
...
54
WASHER, FLAT .406 x .812 x .06 BS-710207
...
55
SCREW, 3/8-24 x 2.00 BS-710201
...
80-20
BRACKET, HANDLE RH BS-672925
...
80-30
BRACKET, HANDLE LH BS-672924
...
80-36
NUT, 5/16-18, HEXWDFLK WHIZ BS-710204
...
600
DEFLECTOR, REAR BS-043640
...
601
SCREW, 10-16X.50 BS-710271
...
610
DOOR, REAR 21 BS-071833
...
611
SPACER,RR DOOR BS-672049
...
612
SCREW, 10-16X.50 BS-710273
...
613
ROD, PIVOT RR DOOR.25X18.5 BS-672282 Z
...
614
JET, Main BS-231739
...
615
SPRING, TORSION BS-340823
...
--
OWNER'S MANUAL BS-F-000430M

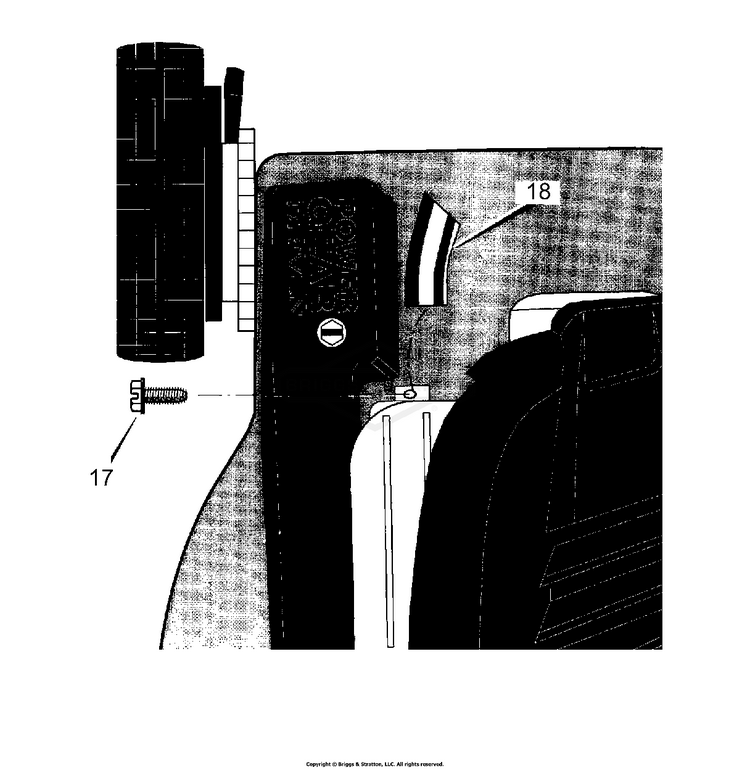

Exhaust Tube Assembly

...
...
17
SCREW, #8-32X.38 BS-710267
...
18
TUBE, EXHAUST BS-672710

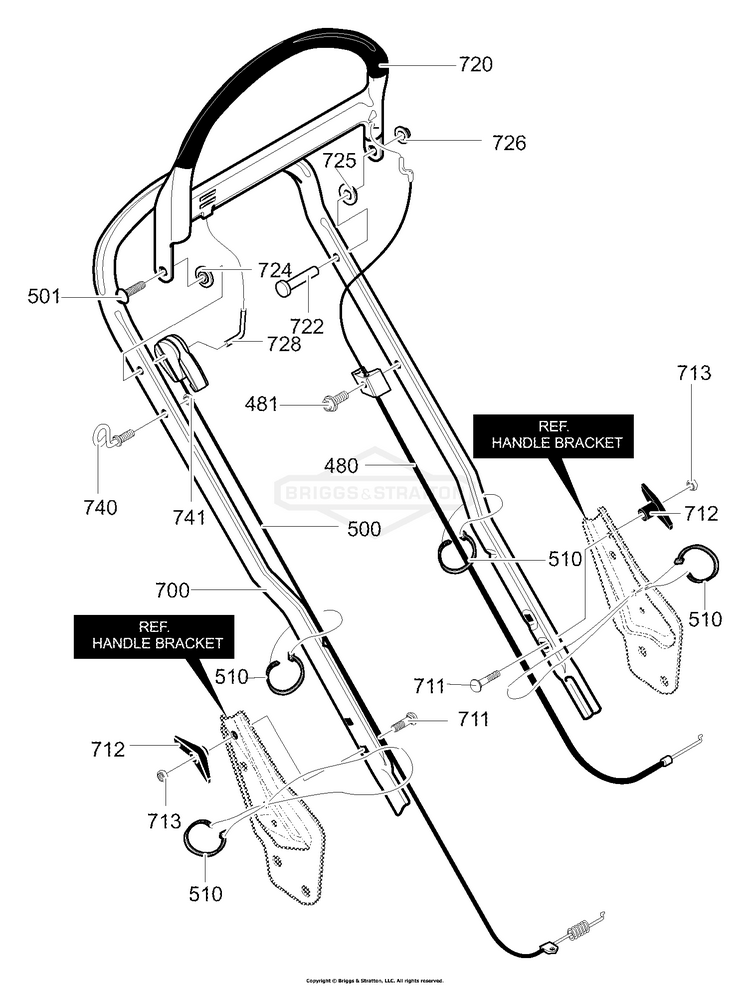

Handle Assembly

...
...
480
CABLE,STOP BS-672864MA
...
481
SCREW, 10-16X.75 S BS-710269
...
500
CABLE, DRIVE BS-672853MA
...
501
SCREW,#10-16X1.38 BS-711833MA
...
510
TIE, CABLE BLACK NYLON 5.62L BS-712267
...
516
SCREW,10-16X.50HWASEMTAP BS-710271
...
700
HANDLE BS-672843
...
711
BOLT, 5/16-18X2.00 BS-710175
...
712
KNOB, WING 3.00 BS-1501260MA
...
713
NUT, 5/16-18 REGHEX BS-120376
...
720
LEVER, STOP FLAT BS-672797
...
722
PIN, CLEVIS BS-712105MA
...
724
SPACER BS-672734MA
...
725
SPACER BS-672734MA
...
726
RETAINER CAP BS-710286
...
728
ROD DRIVE LINK SCOTTS BS-672291ZMA
...
740
GUIDE, ROPE 1/4-20 BS-672510MA
...
741
NUT, 1/4-20 BS-710203
