21595x31B Murray - Walk-Behind Mower (2000)

Model: 21595x31B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

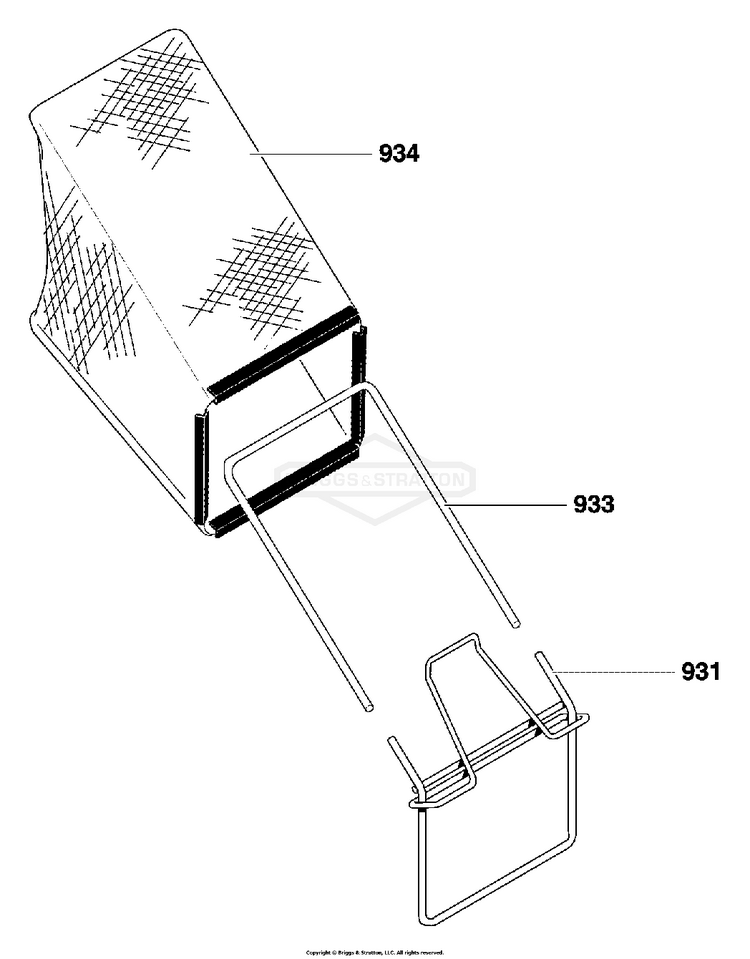

Bag Assembly

...
...
931
ASSY, BAG FRAME BS-672293MA
...
933
FRAME, BAG TOP BS-672294
...
934
BAG, 21 BS-672866MA

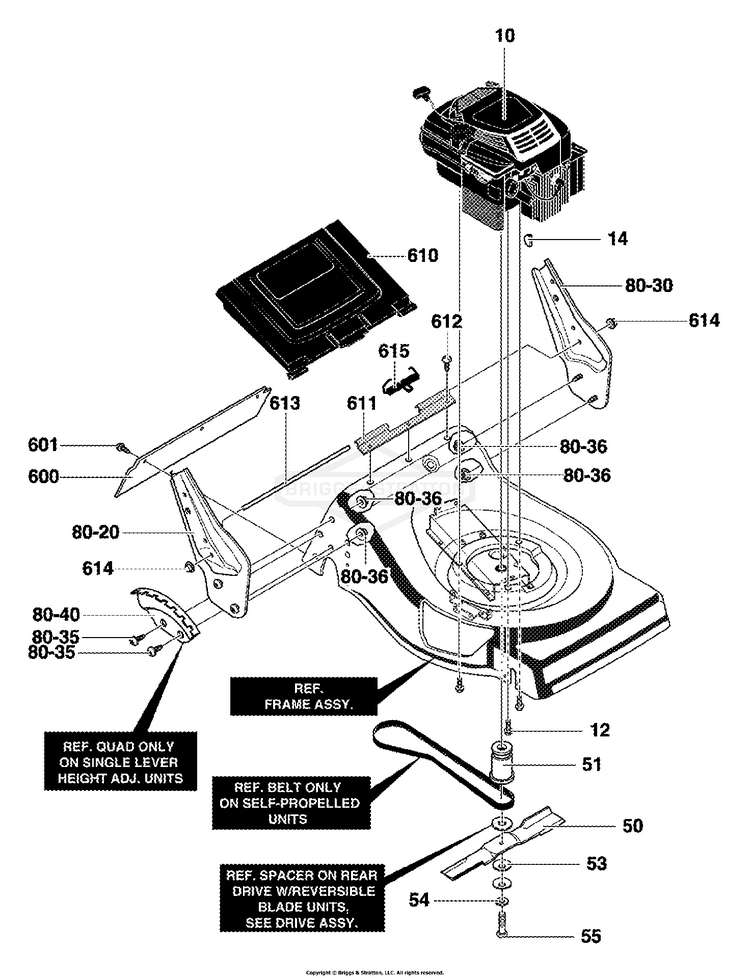

Engine Assembly

...
...
12
SCREW, 3 /8-16X1.00 BS-47792MA
...
50
BLADE, 21" REVERSIBLE BS-672089
...
51
ADAPTER, BLADE 21" BS-672094MA
...
53
WASHER, BEVELLE BS-710210
...
54
WASHER, FLAT .406 x .812 x .06 BS-710207
...
55
SCREW, 3/8-24 x 2.00 BS-710201
...
80-20
BRACKET, HANDLE RH BS-672266
...
80-30
BRACKET, HANDLE LH BS-672267
...
80-35
SCREW, 5/16-18 x 0.63 BS-710277
...
80-36
NUT, 5/16-18, HEXWDFLK WHIZ BS-710204
...
600
DEFLECTOR,REAR 21 3N1 BS-43640MA
...
601
SCREW, 10-16X.50 BS-710271
...
610
DOOR, REAR 21 BS-71833
...
611
SPACER,RR DOOR BS-672049
...
612
SCREW, 10-16X.50 BS-710273
...
613
ROD, PIVOT RR DOOR.25X18.5 BS-672282 Z
...
614
JET, Main BS-231739
...
615
SPRING, TORSION BS-340823
...
--
OWNER'S MANUAL BS-712511

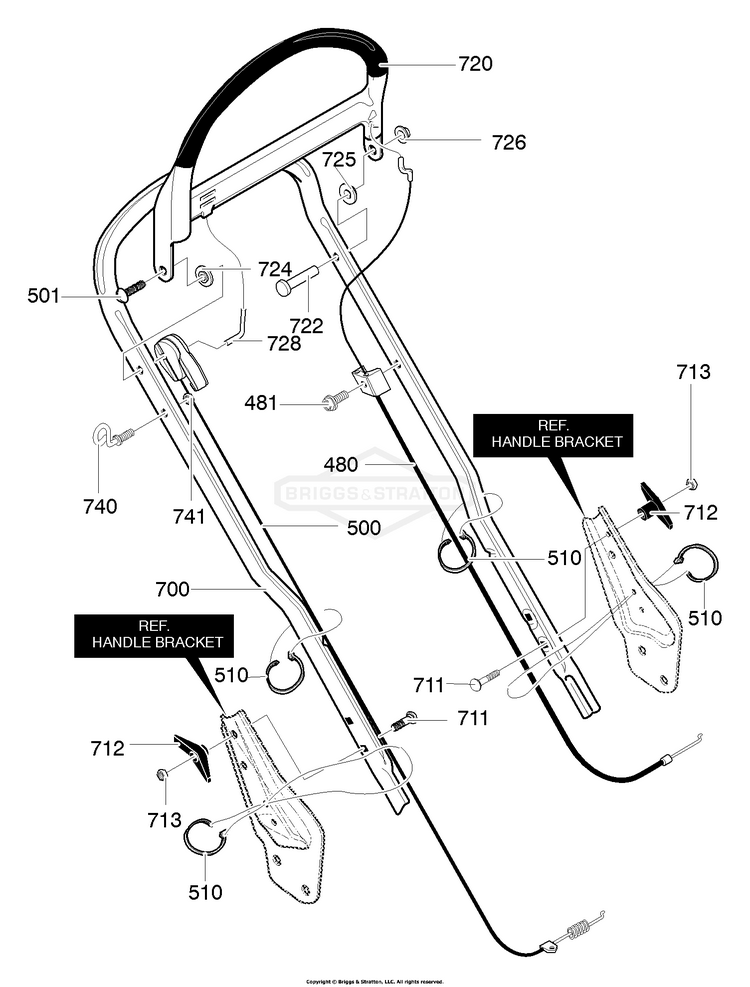

Handle Assembly

...
...
480
CABLE,STOP BS-672386
...
481
SCREW, 10-16X.75 S BS-710269
...
500
CABLE, DRIVE BS-672748MA
...
501
SCREW,#10-16X1.38 BS-711833MA
...
510
TIE, CABLE BLACK NYLON 5.62L BS-712267
...
700
HANDLE BS-672285-806
...
711
BOLT, 5/16-18X2.00 BS-710175
...
712
KNOB, WING 3.00 BS-1501260MA
...
713
NUT, 5/16-18 REGHEX BS-120376
...
720
LEVER, STOP FLAT BS-672797
...
722
PIN, CLEVIS BS-712105MA
...
724
SPACER BS-672734MA
...
725
SPACER BS-672734MA
...
726
RETAINER CAP BS-710286
...
728
ROD DRIVE LINK SCOTTS BS-672291ZMA
...
740
GUIDE, ROPE 1/4-20 BS-672510MA
...
741
NUT, 1/4-20 BS-710203

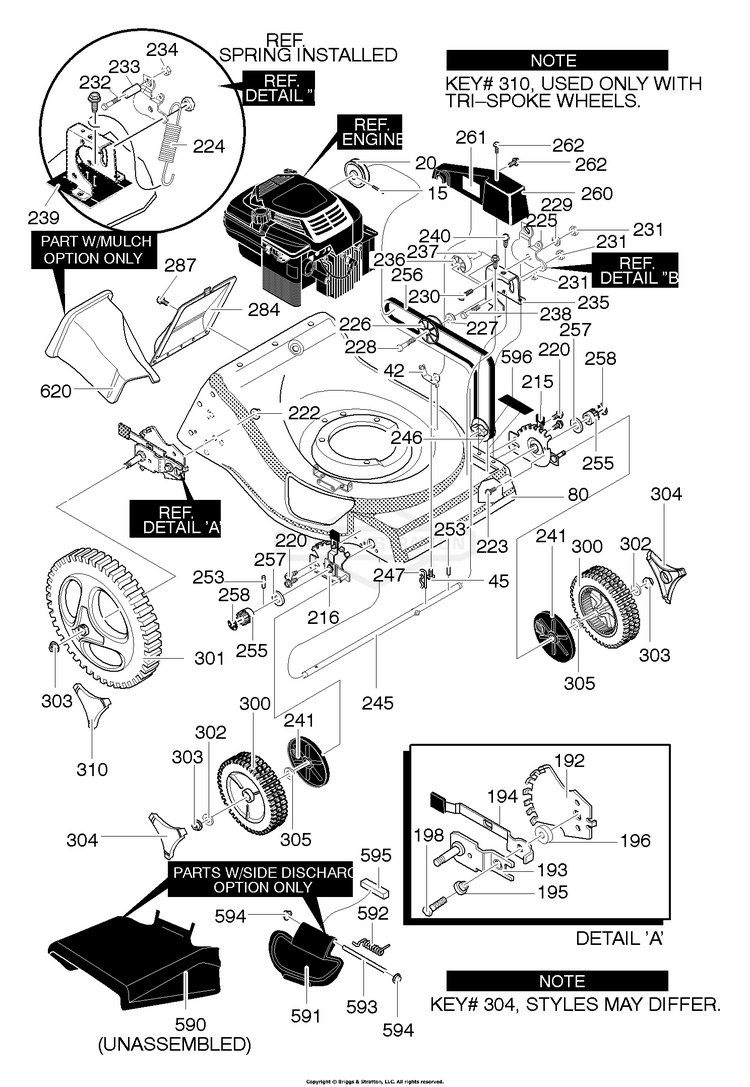

Mower Housing Assembly

...
...
15
PIN, SPRING BS-710293
...
20
ENGINE PULLEY BS-71434
...
42
BKT, DRIVE CABLE BS-71744
...
45
SCREW, #8-32X.38 BS-710274
...
80
ASSY, FRAME BS-672325-898
...
185
INDEX PLATE BS-672765 Z
...
193
AXLE & BRACKET BS-672749
...
194
LEVER, SPRING BS-672514
...
195
WASHER, FLAT .375X BS-446363MA
...
196
SPACER, PLASTIC BS-643387
...
198
SCREW, 3/8-16 x 1.50 BS-710082
...
215
ASSY, LF HGT ADJ BS-672517MA
...
216
ASSY, RH HGT ADJ BS-672516MA
...
220
SCREW, 1/4-20X.63 BS-710274
...
222
NUT, 3/8-16 BS-710140
...
223
SCREW, 10-24X.38 BS-710266
...
224
EXTENSION SPRING BS-710336
...
225
IDLER ARM BS-672782
...
226
IDLER PULLEY BS-71779
...
227
SPACER, IDLER BS-71788
...
228
KEEPER, Valve BS-716520
...
229
SPACER, IDLER ARM BS-71789
...
230
BOLT, CARR BS-57072
...
231
NUT, 5/16-18 BS-1498
...
232
BOLT, SHOULDER BS-712351
...
233
PULLEY, ROLLER BS-672781MA
...
234
NUT, 5/16-18 BS-309936
...
235
BKT, IDLER SUPPT BS-71745
...
236
PULLEY, IDLER BS-71778
...
237
BEARING, SLEEVE BS-71793
...
238
SCREW, 5/16-18 BS-180084
...
240
SCREW, 1/4-20X.50 BS-710133
...
241
DUST COVER BS-71780
...
245
SHAFT, F/DR AXLE BS-71790MA
...
246
PULLEY, F/DR AXLE BS-71791
...
247
HAIR PIN BS-710292
...
253
PIN, DRIVE BS-643629
...
255
PINION GEAR BS-71792
...
256
BELT, V3L BS-712461
...
257
HOUSING, Blower BS-710364
...
258
RING, RET E. BS-020864
...
260
BELT COVER BS-672118
...
261
DECAL, Danger Amputation Hazard BS-1733057SM
...
262
SCREW, 10-24X.38 BS-310798
...
284
REAR COVER BS-71246
...
287
SCREW BS-710274
...
300
WHEEL, DRIVE BS-672803MA
...
301
8X2.00 WHL T-BAR DR D BS-672441MA
...
302
PANEL, Control BS-711573
...
303
NUT BS-710140
...
304
HUBCAP T-BAR LG-RIM D BS-672446MA
...
305
FLAT WASHER BS-710206
...
310
HUBCAP T-BAR LG-RIM D BS-672446MA
...
590
DEFLECTOR, CHUTE BS-672046MA
...
591
COVER, MULCH BS-672045MA
...
592
SPRING, TORSION BS-340826
...
593
ROD, PIVOT BS-340827
...
594
JET, Main BS-231739
...
595
SEAL, FOAM BS-712012
...
596
FLAP, BELT SCRAPER BS-672799
...
620
MULCHER PLUG-SMALL BS-071250MA
