215707-0551-B1 Briggs and Stratton Engine

Model: 215707-0551-B1

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

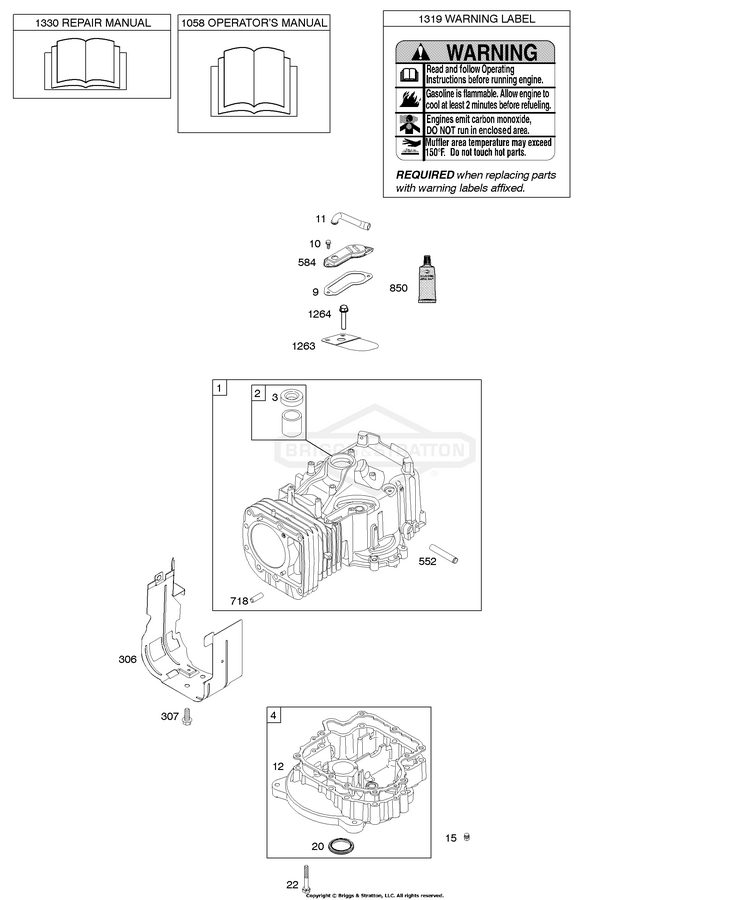

Cylinder, Engine Sump, Operator's Manual, Warning Label

...
...
1
CYLINDER ASSEMBLY Used Before Code Date 09041600 BS-699045

...
1
CYLINDER ASSEMBLY Used After Code Date 09041500 BS-699045

...
2
KIT, Bushing/Seal (Magneto Side) BS-797673

...
3
SEAL, Oil (Magneto Side) BS-391086S

...
4
SUMP, Engine BS-697106

...
9
GASKET, Breather (After Date Code Use Liquid Sealant Reference 850) Used Before Code Date 07071900 BS-697109

...
10
SCREW (Breather Assembly) BS-697157

...
11
TUBE, Breather BS-794683

...
12
GASKET, Crankcase (.015" Thick)(Standard) BS-697110

...
15
PLUG, Oil Drain (3/8" Standard) BS-690946

...
20
SEAL, Oil (PTO Side) BS-795387

...
22
SCREW (Crankcase Cover/Sump) BS-692125

...
306
SHIELD, Cylinder BS-592778

...
307
SCREW (Cylinder Shield) BS-691003

...
552
BUSHING, Governor Crank BS-697144

...
584
COVER, Breather Passage BS-794682

...
718
PIN, Locating BS-690959

...
850
SEALANT, Liquid Used After Code Date 07071800 BS-100106

...
1058
MANUAL, Operator's BS-276344TRI

...
1263
REED, Breather BS-697124

...
1264
SCREW (Breather Reed) BS-697104

...
1319
LABEL, Warning BS-794467

...
1330
MANUAL, Repair BS-276781
...
...
...
