215707-0551-B1 Briggs and Stratton Engine

Model: 215707-0551-B1

Back To Assemblies

Save
Part Not Listed?Part Not Listed?

product name

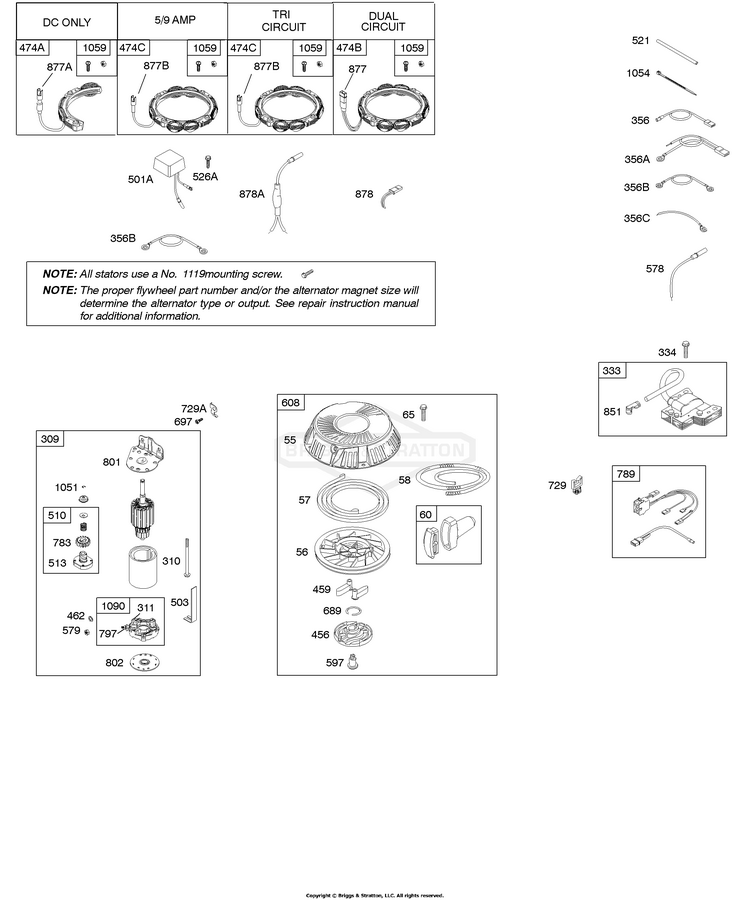

Alternator, Electric Starter, Ignition, Rewind Starter

...
...
55
HOUSING, Rewind Starter BS-695130

...
56
PULLEY, Starter BS-695129

...
57
SPRING, Rewind Starter BS-695131

...
58
ROPE, Starter BS-695132

...
60
GRIP, Starter Rope BS-493926

...
65
SCREW (Rewind Starter) Used Before Code Date 07040900 BS-697725

...
65
SCREW (Rewind Starter) Used After Code Date 07040800 BS-690837

...
309
MOTOR, Starter BS-593934

...
310
SCREW (Starter Motor) BS-690323

...
311
SET, Brush BS-497608

...
333
ARMATURE, Magneto BS-595304

...
334
SCREW (Magneto Armature) BS-691061

...
356A
WIRE, Stop (Cut To Required Length) BS-398808

...
456
PLATE, Pawl Friction BS-695128

...
459
PAWL-RATCHET BS-281505S

...
462
WASHER (Starter Cable) BS-691261

...
474A
ALTERNATOR (DC Only) BS-592828

...
474B
ALTERNATOR (Dual Circuit) BS-592831

...
474C
ALTERNATOR (Tri Circuit Or 5/9 Amp. Regulated) BS-592829

...
501A
REGULATOR BS-794360

...
503
STRAP, Starter BS-691532

...
510
MOTOR, Starter BS-593934

...
513
CLUTCH, Drive BS-692024

...
521
SHIELD, Cable BS-690581

...
578
WIRE ASSEMBLY BS-692306

...
579
NUT (Starter Cable) BS-691029

...
597
SCREW (Pawl Friction Plate) BS-691696

...
608
STARTER, Rewind BS-591606

...
689
SPRING-FRICTION BS-691855

...
697
SCREW (Drive Cap) BS-791680

...
729
CLIP, Wire BS-691335

...
729A
CLIP, Wire BS-691224

...
783
GEAR, Pinion BS-593935

...
797
NUT (Brush Retainer) BS-693167

...
801
CAP, Drive BS-691283

...
802
CAP, End BS-691286

...
851
TERMINAL, Spark Plug BS-692424

...
877
WIRE/CONNECTOR, Alternator BS-393456

...
877A
WIRE/CONNECTOR, Alternator (10 Amp Regulated) BS-393814

...
877B
WIRE/CONNECTOR, Alternator (Tri Circuit) (9 Amp) BS-393537

...
878
HARNESS, Wiring BS-398661

...
878A
HARNESS, Alternator BS-691955

...
1051
RING, Retaining BS-691265

...
1054
TIE, Cable BS-280275

...
1059
KIT, Screw/Washer BS-698516

...
1090
RETAINER, Brush BS-691293

...
1119
SCREW (Alternator) BS-691183
...
...
...
