21485x6A Murray - Walk-Behind Mower (2000)

Model: 21485x6A

Back To Assemblies

Save Part Not Listed?
product name

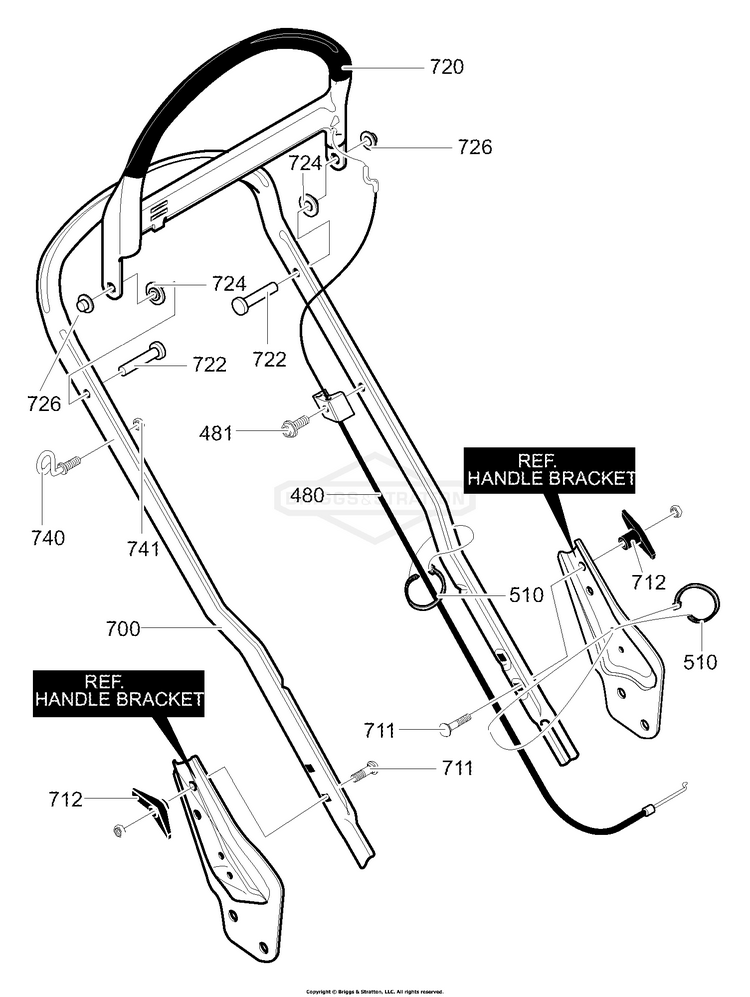

Handle Assembly

...
...
--
OWNER'S MANUAL BS-F-000476M
...
480
CABLE, STOP BS-672326MA
...
481
SCREW, 10-16X.75 BS-710269
...
510
CABLE TIE BS-712267
...
700
HANDLE BS-672285-846
...
711
CARR. BOLT, 5/16-18X2.00 BS-710175
...
712
WINGKNOB, 5/16-18 BS-703065
...
720
STOP LEVER BS-1101123MA
...
722
CLEVIS PIN BS-712105MA
...
724
SPACER, FLANGE BS-672734MA
...
726
CAP, RETAINER W/COVER BS-710286
...
740
GUIDE, ROPE 1/4-20 BS-672510MA
...
741
NUT, 1/4-20 BS-710203
