212702-0116-E1 Briggs and Stratton Engine

Model: 212702-0116-E1

Back To Assemblies

Save Part Not Listed?
product name

Controls, Ignition

...
...
187
LINE, Fuel (Formed)(Cut To Required Length) BS-791805
...
187B
LINE, Fuel (Cut To Required Length) BS-791766
...
188
SCREW (Control Bracket) BS-691693
...
202
LINK, Mechanical Governor BS-691841
...
205
SCREW (Bell Crank) BS-691693
...
209
SPRING, Governor BS-792813
...
216
LINK, Choke BS-691840
...
222
BRACKET, Control BS-597209
...
227
LEVER, Governor Control BS-691374
...
232
SPRING, Governor Link BS-691842
...
240A
FILTER, Fuel (Clear, 40 Microns) BS-84001895
...
261
SCREW (Control Slide) BS-697176
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-690804
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-691061
...
356A
WIRE, Stop (Cut To Required Length) BS-398808
...
356C
WIRE, Stop (1 Wire, 16-45/64 )(Ring Terminal, And Bare Wire End) BS-399222
...
359
WASHER (Ground Terminal) BS-691077
...
373
NUT (Ground Terminal) BS-691612
...
385
SCREW (Fuel Pump) BS-694476
...
387
PUMP, Fuel (Includes Mounting Bracket) BS-697090
...
404
WASHER (Governor Crank) BS-691691
...
505
NUT (Governor Control Lever) BS-691251
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground BS-691084
...
559
SCREW (Remote Choke Stop) (Assemble Remote/Manual Choke Stop Screw in R Hole) BS-697561
...
559A
SCREW (Remote Choke Stop) (Assemble Speed Limiter Screw in Number 2 Hole) BS-693675
...
562
BOLT (Governor Control Lever) BS-691119
...
601
CLAMP, Hose BS-791850
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-692012
...
621
SWITCH, Stop BS-692310
...
687
SLIDE, Control BS-697175
...
688
CAP, Friction BS-690395
...
689A
SPRING, Friction BS-690529
...
729
CLIP, Wire BS-691335
...
843
SLEEVE, Lever BS-697158
...
851
TERMINAL, Spark Plug BS-692424
...
918
HOSE, Vacuum (Molded) BS-791851
...
957
CAP, Fuel Tank (Plastic) BS-795027
...
958
VALVE, Fuel Shut Off (Plastic) BS-698183
...
972
TANK, Fuel (Plastic) BS-799111
...
1054
TIE, Cable BS-280275
...
1136
SCREW (Control Bracket) (High Speed Control) BS-690278

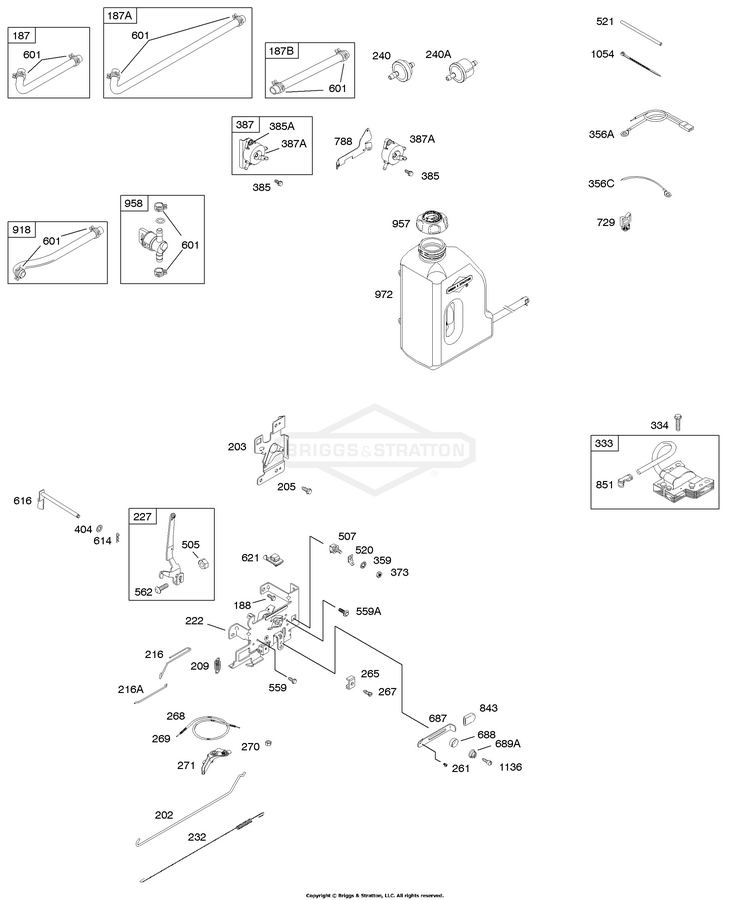

Schematic Image Zoomed
