20P45L00 Murray - 96117001700, 20" Murray Walk Behind Mower (2013)

Model: 20P45L00

Back To Assemblies

Save Part Not Listed?
product name

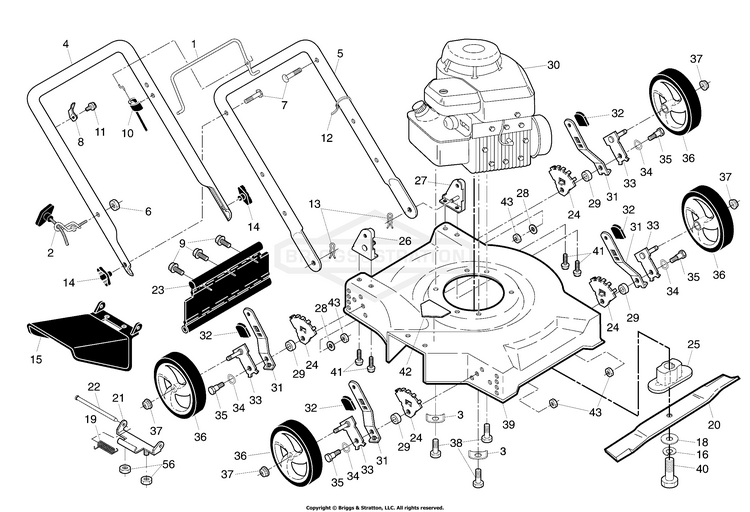

Deck Group (20P45L00)

...
...
1
Control Bar BS-709273
...
2
Rope Guide BS-709279
...
3
Engine Washer BS-709450
...
4
HANDLE-UPPER BS-709821
...
5
Lower Handle BS-708680
...
6
Nut, Hex BS-709054
...
7
Handle Bolt 5/16-18 x 1-3/4 BS-709234
...
8
UPSTOP BS-707659
...
9
Hex Washer Head Screw #10- BS-708218
...
10
Engine Zone Control Cable BS-709382
...
11
Screw BS-709195
...
12
Wire Tie BS-709409
...
13
Hairpin Cotter BS-709387
...
14
Knob, Handle BS-709219
...
15
Discharge Guard BS-708677
...
16
WASHER, LOCK SPR 3/8 BS-705316
...
18
Hardened Washer BS-709448
...
19
Torsion Spring BS-708399
...
20
Blade, 20" BS-707855
...
21
Hinge Deflector BS-708005
...
22
Hinge Rod BS-708057
...
23
Rear Deflector BS-708217
...
24
Wheel Adjusting Bracket BS-708661
...
25
Blade Adapter BS-707856
...
26
Handle Bracket Assembly, RH BS-708578
...
27
Handle Bracket Assembly, LH BS-708579
...
28
** Washer, Flat (This part is not serviced by Briggs & Stratton.) BS-61537
...
29
Spacer BS-709305
...
30
* Engine, Briggs & Stratton ( Engine Model: 09L602-1611-F1 ) BS-09L602-1611-F1
...
31
Selector Spring BS-709304
...
32
Selector Knob BS-709451
...
33
Axle Arm Assembly BS-708651
...
34
Belleville Washer BS-709306
...
35
Shoulder Bolt BS-709307
...
36
Wheel and Tire Assembly BS-708612
...
37
NUT, HEX BS-709321
...
38
BOLT, Fin Hex, 3/8-16 UNC x 1 Gr 5 BS-709443
...
39
Lawn Mower Housing BS-708527
...
40
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 BS-709449
...
41
Thread Cutting Screw 5/16-18 x 3/4 BS-708048
...
42
Danger Decal BS-709203
...
43
NUT, LOCK 5/16-18 UNC BS-705350
...
56
LOCKNUT BS-705713
...
--
** Warning Decal (Not Shown) (This part is not serviced by Briggs & Stratton.) BS-182191
...
--
Operator’s Manual, English BS-709266
...
--
Operator’s Manual, French BS-709268
...
--
Operator’s Manual, Spanish BS-709269
...
--
Operator’s Manual, Portuguese BS-709019
...
--
** Repair Parts Manual, English (This part is not serviced by Briggs & Stratton.) BS-585587427
