20E414-0162-E1 Briggs and Stratton Engine

Model: 20E414-0162-E1

Back To Assemblies

Save Part Not Listed?
product name

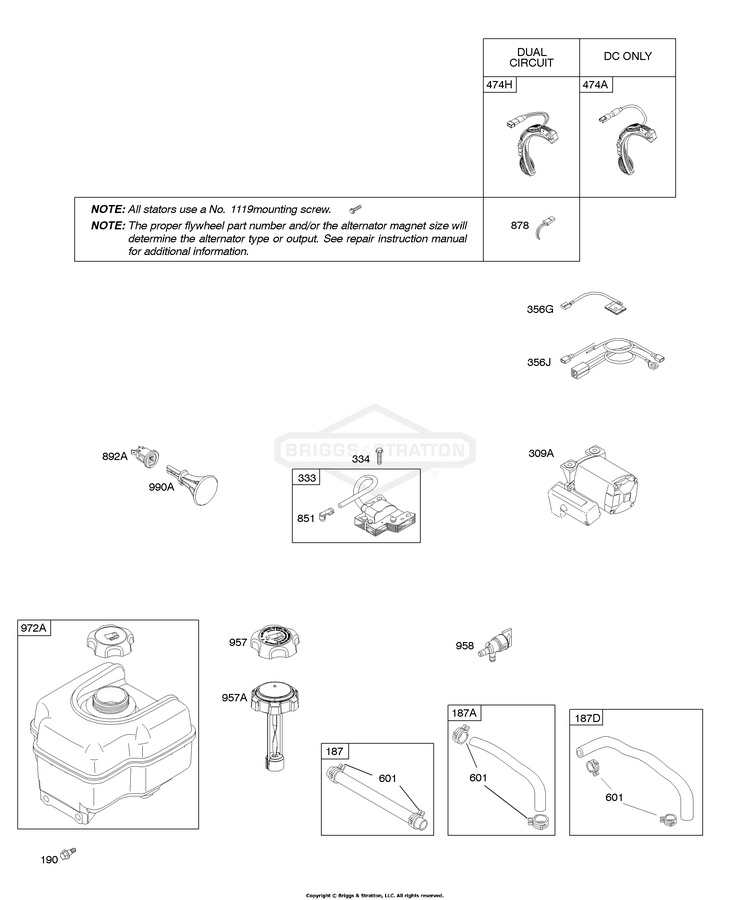

Alternator, Electric Starter, Fuel Supply, Ignition

...
...
187
LINE, Fuel (15" Long)(Cut to Required Length) BS-791766
...
187A
LINE, Fuel Used After Code Date 05063000 BS-791869
...
187A
LINE, Fuel Used Before Code Date 05070100 BS-791869
...
187D
LINE, Fuel Used Before Code Date 05070100 BS-791879
...
187D
LINE, Fuel Used After Code Date 05063000 BS-791879
...
190
SCREW (Fuel Tank) BS-692127
...
309A
MOTOR, Starter BS-792157
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-691061
...
356G
WIRE, Stop BS-696748
...
356J
WIRE, Stop BS-793206
...
474A
ALTERNATOR BS-793640
...
601
CLAMP, Hose BS-791850
...
851
TERMINAL, Spark Plug BS-692424
...
878
HARNESS, Wiring BS-398661
...
892A
SWITCH, Key BS-791944
...
957A
CAP, Fuel Tank (Plastic) BS-698109
...
958
VALVE, Fuel Shutoff (Plastic) BS-698180
...
972A
TANK, Fuel (Plastic) BS-799863
...
990A
KEY SET BS-794696
...
1119
SCREW (Alternator) BS-691183
