20817A Murray - Walk-Behind Mower (1996)

Model: 20817A

Save Part Not Listed?
product name

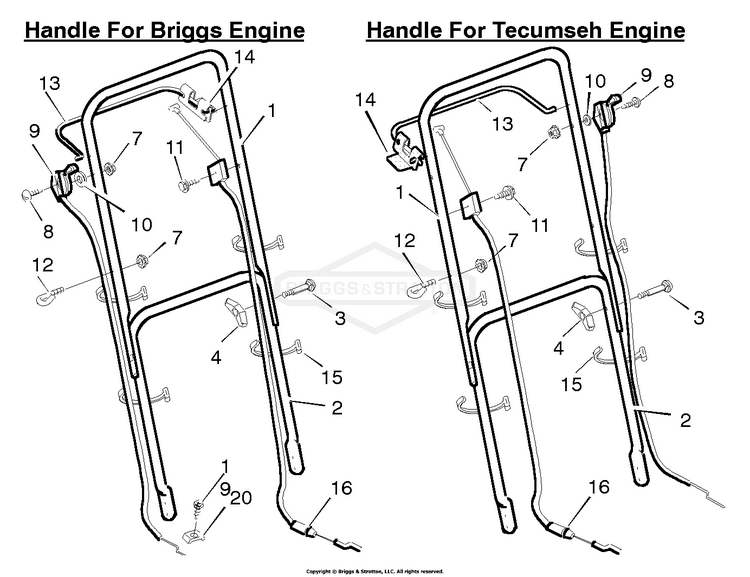

Handle Assembly

...
...
1
Handle, Upper (Black) BS-071359E701
...
--
Handle, Upper (Grey) BS-071359E701
...
2
Handle, Lower (Black) BS-071345E701
...
--
Handle, Lower (Grey) BS-071345E701
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
T-CABLE RH-W 21F SE (For Models with Briggs & Stratton engines.) BS-071177MA
...
--
Throttle Control (For Models with Tecumseh engines.) BS-071173MA
...
10
Washer BS-17X188
...
11
Screw BS-26X220MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Engine Stop Lever BS-071149
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
S-CBL-S 39.00 22P C& BS-043828MA
...
--
Engine Stop Cable * BS-043876
...
19
Screw * BS-26X268MA
...
20
Clamp (For Models with Briggs & Stratton engines) BS-042294

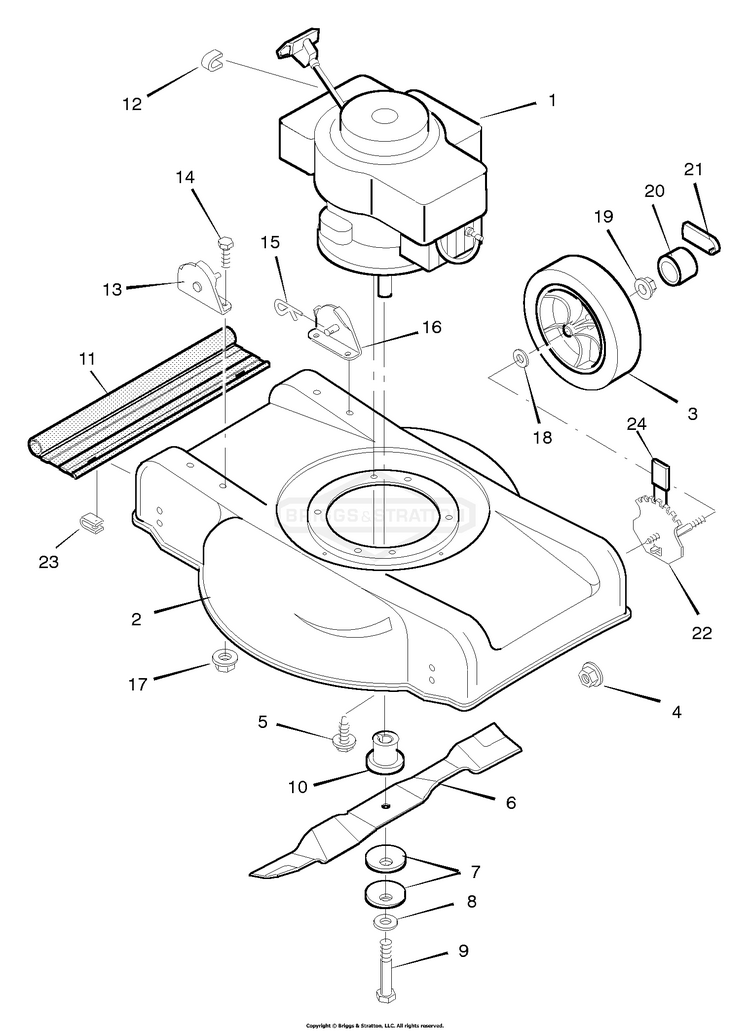

Mower Deck Assembly

...
...
2
Housing, For Folding Handle BS-070137
...
4
NUT, 3/8-16 BS-703333
...
5
Bolt, Engine BS-0025X6MA
...
6
Blade BS-071548E701MA
...
7
Washer, Belleville BS-17X137MA
...
8
Washer BS-17X124MA
...
9
Bolt, Hex BS-01X142MA
...
10
Adapter, Blade BS-071059MA
...
11
Deflector, Rear BS-071527
...
12
Stop, Rope BS-042189MA
...
13
Bracket, Right Handle BS-42712E701
...
14
Bolt BS-001X38MA
...
15
Pin, Hair BS-031X10MA
...
16
Bracket, Left Handle BS-42713E701
...
17
NUT, 1/4-20, GR5 BS-703233
...
18
WASHER,SPRING .52X.99 BS-0020X3MA
...
19
NUT, CNTR LCK, 3/8-16 BS-703893
...
20
Hub Cap (Optional) BS-020107MA
...
21
Hub Cap Optional; (For Ball Bearing Wheels) BS-043847MA
...
--
Hub Cap Optional; (For Plastic Wheels) BS-043615MA
...
22
Adjuster, Height BS-401025MA
...
23
Retainer BS-042743MA
...
24
Grip BS-043394MA

Wheels And Tires

...
...
A
WHEEL & TIRE ASSEMBLY, Light Gray, 8" BS-020104MA
...
A
8-inch Plastic, Gray BS-071598
...
A
8-inch Metal, White BS-043273
...
B
7-inch Plastic, White BS-071148
...
B
7-inch Plastic, Gray BS-71596
...
C
6-inch Plastic, White BS-042174
...
C
Tire & Rim BS-336546MA
...
C
7-inch Plastic, Gray BS-071597
...
C
8-inch Plastic, White BS-020271
...
C
8-inch Metal, White BS-043414
...
D
7-inch Plastic, White BS-042172
...
D
WHEEL & TIRE ASSEMBLY, White, 8" BS-042173MA
...
D
8-inch Plastic, Gray BS-071599
...
E
WHEEL & TIRE ASSEMBLY, White, 8" BS-020105MA
...
E
8-inch Plastic, Gray BS-071600
...
E
8-inch Metal, White BS-043274MA
...
F
Wheel BS-071132MA
...
F
8-inch Plastic, Gray BS-071132MA
...
F
Wheel BS-071134MA
...
F
8-inch Ball Bearings, Gray BS-071134MA
...
G
14-inch Spoke BS-042666
...
G
16-inch Spoke BS-070106
...
H
WHEEL & TIRE ASSEMBLY, 16" Spoke BS-070119MA
