207610x52A Murray - Walk-Behind Mower (2005)

Model: 207610x52A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

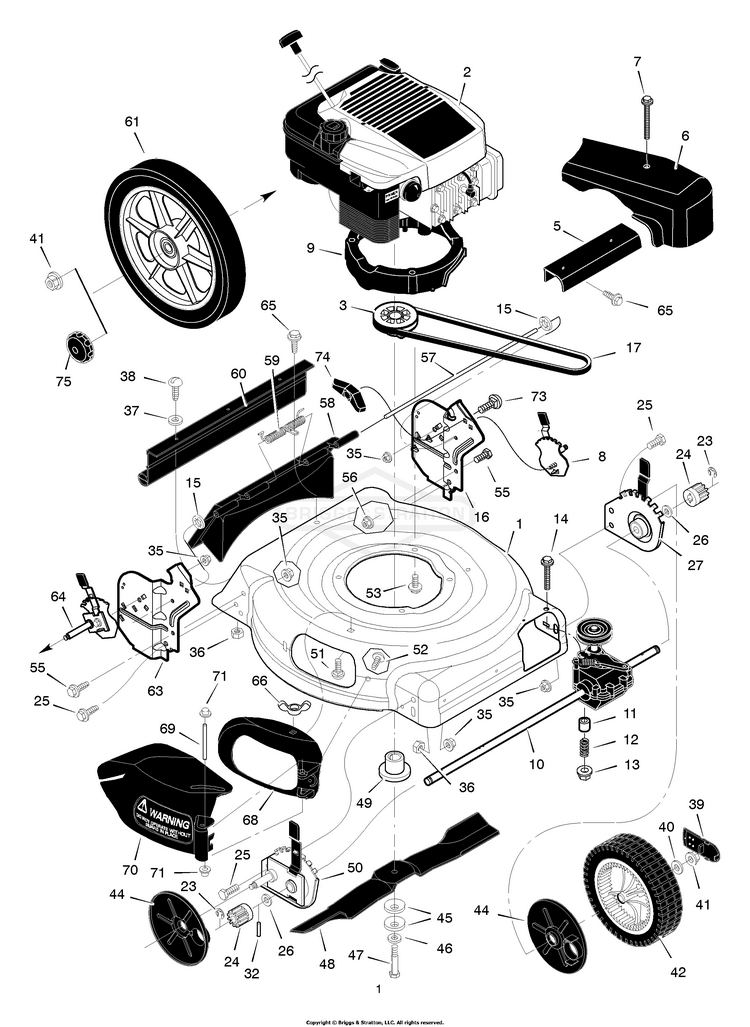

Mower Housing Assembly

...
...
3
Pulley, Crankshaft BS-1101653MA
...
4
Pin, Spring BS-032X64MA
...
5
Cover, Axle (Black) BS-1101625
...
6
Cover, Belt (Black) BS-1101623
...
7
Screw BS-26X304MA
...
8
Adjuster, Left Height BS-672605MA
...
9
Spacer, Engine BS-1101639
...
10
Transmission * BS-1101619
...
11
Spacer BS-043844MA
...
12
Spring BS-164X27MA
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
15
Retainer, Push (Included with Ref. No. 58) BS-028X49MA
...
16
Bracket, Left Handle BS-1102123E701
...
17
Belt BS-37X128MA
...
23
E-Ring BS-011X16MA
...
24
Gear, Pinion BS-071792MA
...
25
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
26
Washer BS-17X186MA
...
27
Adjuster, Left Frt. Height BS-672603MA
...
32
Pin, Drive BS-043629MA
...
35
NUT, 3/8-16 BS-703333
...
36
Nut, Hex BS-15X102MA
...
37
Washer BS-017X38MA
...
38
Screw BS-004X21MA
...
39
Cap, Hub BS-043615MA
...
40
WASHER, FLAT, .377X1 BS-703966
...
41
NUT, CNTR LCK, 3/8-16 BS-703893
...
42
Wheel, Drive BS-071133MA
...
44
Cover, Dust BS-071780MA
...
45
Washer, Belleville BS-17X137MA
...
46
Washer BS-17X124MA
...
47
Bolt BS-01X144MA
...
48
Blade BS-672763E701MA
...
49
Adapter, Blade BS-1101336MA
...
50
Adjuster, Right Frt. Height BS-672602MA
...
51
Bolt, Carriage BS-002X16MA
...
52
Screw BS-26X221MA
...
53
Bolt, Engine BS-025X11MA
...
55
CAPSCREW,5/16-18X.625 BS-703822
...
56
NUT, 5/16-18, GR5 BS-703409
...
57
Rod, Pivot (Included with Ref. No. 58) BS-215X17 Z
...
58
Door, Rear (Gray) BS-672610
...
59
Spring (Included with Ref. No. 58) BS-166X44MA
...
60
Deflector, Rear BS-671969MA
...
61
Wheel, Rear BS-1102159
...
63
Bracket, Right Handle BS-1102122E701
...
64
Adjuster, Right Height BS-672604MA
...
65
SCREW-#10X.5 B W/WAS BS-26X245MA
...
66
NUT BS-703141
...
68
Bezel BS-671926
...
69
Pin, Pivot BS-215X18 Z
...
70
Deflector, Chute (Black) BS-671927
...
71
Cap, Push BS-028X42MA
...
73
Bolt, Carriage BS-002X81MA
...
74
Knob BS-071495MA
...
75
Knob BS-672449MA
...
--
Instruction Book BS-F-050436L
