20716x50A Murray - Walk-Behind Mower (2000)

Model: 20716x50A

Save Part Not Listed?
product name

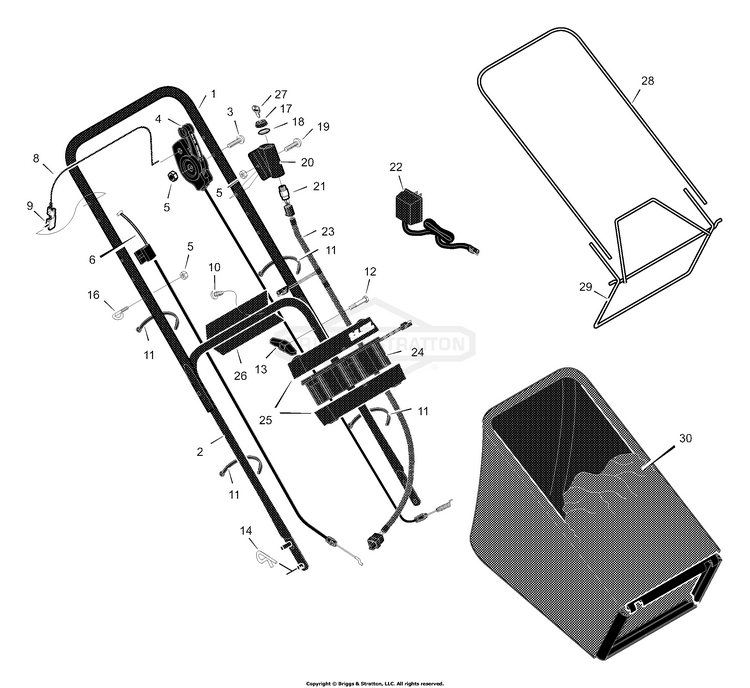

Handle & Bag Assembly

...
...
1
Handle, Upper (Gray) BS-71581E724
...
2
Handle, Lower (Gray) BS-1101011E724
...
3
Bolt BS-26X286MA
...
4
Control, Drive BS-672872MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672831
...
8
Engine Stop Lever BS-672878E701MA
...
9
Bracket, Stop Lever BS-43628 BC
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
Pin, Hair BS-031X10MA
...
15
Clamp BS-042294
...
16
ROPE GUIDE-UPPER BS-071530MA
...
17
CAP, Switch BS-847150
...
18
SET, Washer/Nut BS-847144
...
19
Bolt BS-03X136MA
...
20
Cover, Ignition BS-671916MA
...
21
Switch Ignition & Key BS-776011MA
...
22
Charger, Battery BS-671991MA
...
23
Harness, Wiring BS-250X73
...
24
Battery BS-776014MA
...
25
Case, Battery BS-776013
...
26
Bracket, Battery BS-671959
...
27
Key, Ignition BS-672220
...
28
TUBE-BAG TOP 20RB BS-071592MA
...
29
Frame Assembly BS-672614
...
30
Complete Service Replacement Kit * BS-24201MA

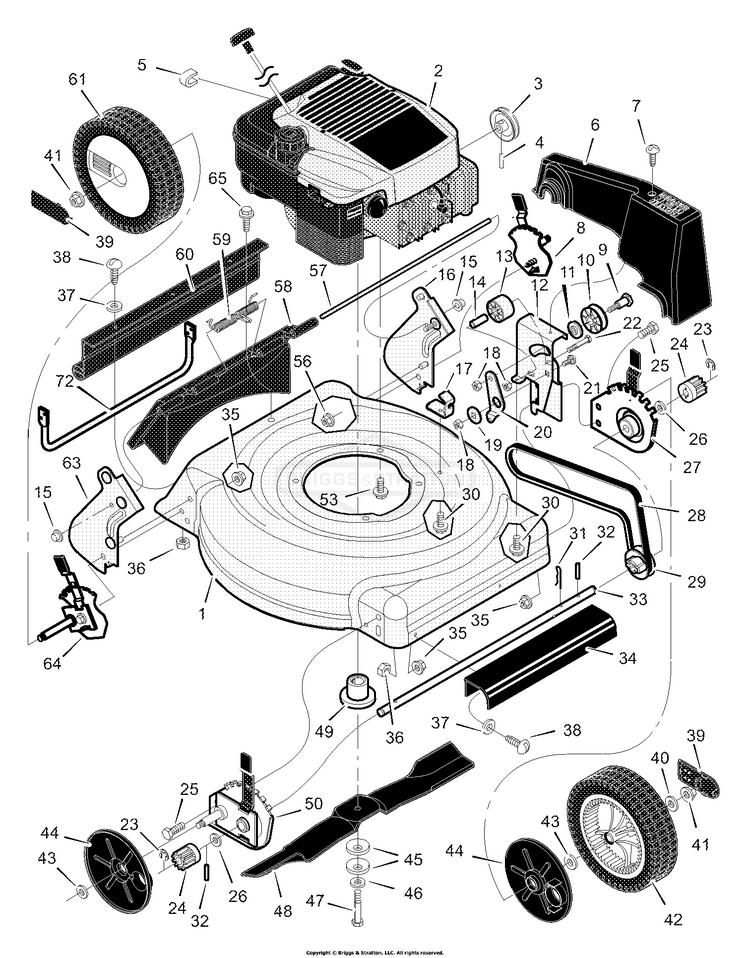

Mower Housing Assembly

...
...
3
Pulley, Engine BS-071434MA
...
4
Pin, Spring BS-032X64MA
...
6
Cover, Belt (Gray) BS-672000
...
7
Screw BS-26X279MA
...
8
Adjuster, Left Height BS-672605MA
...
9
Bolt, Shoulder BS-009X50MA
...
10
Pulley BS-071779MA
...
11
Spacer BS-071788MA
...
12
Bracket, Idler Support BS-672772 Z
...
13
Pulley, Idler BS-071778MA
...
14
Bearing BS-071793MA
...
15
Nut, Push BS-028X49MA
...
16
Bracket, Left Handle BS-672869E700
...
17
Bracket, Cable BS-671934
...
18
NUT BS-703164
...
19
Spacer BS-071789MA
...
20
Arm, Idler BS-671936
...
21
BOLT BS-703159
...
22
Bolt, Shoulder BS-001X81MA
...
23
E-Ring BS-011X16MA
...
24
Gear, Pinion BS-071792MA
...
25
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
26
Washer BS-17X186MA
...
27
Adjuster, Left Frt. Height BS-672603MA
...
28
Belt BS-037X99
...
29
Pulley, Axle BS-071791MA
...
30
SCREW.25-20 S-T BS-26X263MA
...
31
Pin, Hair BS-0031X9MA
...
32
Pin, Spring BS-043629MA
...
33
Axle BS-671931MA
...
34
Cover, Axle (Gray) BS-672108
...
35
NUT, 3/8-16 BS-703333
...
36
Nut, Hex BS-15X102MA
...
37
Washer BS-017X38MA
...
38
Screw BS-004X21MA
...
39
Cap, Hub BS-672122MA
...
40
WASHER, FLAT, .377X1 BS-703966
...
41
NUT, CNTR LCK, 3/8-16 BS-703893
...
42
Wheel, Drive BS-071133MA
...
43
Washer BS-17X120MA
...
44
Cover, Dust BS-071780MA
...
45
Washer, Belleville BS-17X137MA
...
46
Washer BS-17X124MA
...
47
Bolt BS-01X153MA
...
48
Blade BS-672763E701MA
...
49
Adapter, Blade BS-672503MA
...
50
Adjuster, Right Frt. Height BS-672602MA
...
53
Bolt, Engine BS-0025X6MA
...
56
NUT, 5/16-18, GR5 BS-703409
...
57
Rod, Pivot BS-215X17 Z
...
58
Door, Rear (Gray) BS-672612
...
59
Spring BS-166X44MA
...
60
Deflector, Rear BS-671970MA
...
61
Wheel, Rear BS-071132MA
...
63
Bracket, Right Handle BS-672868E700
...
64
Adjuster, Right Height BS-672604MA
...
65
SCREW-#10X.5 B W/WAS BS-26X245MA
...
72
Guard, Rear BS-671990
...
--
Instruction Book BS-F-000444L
