206510x31A Murray - Walk-Behind Mower (2005)

Model: 206510x31A

Save Part Not Listed?
product name

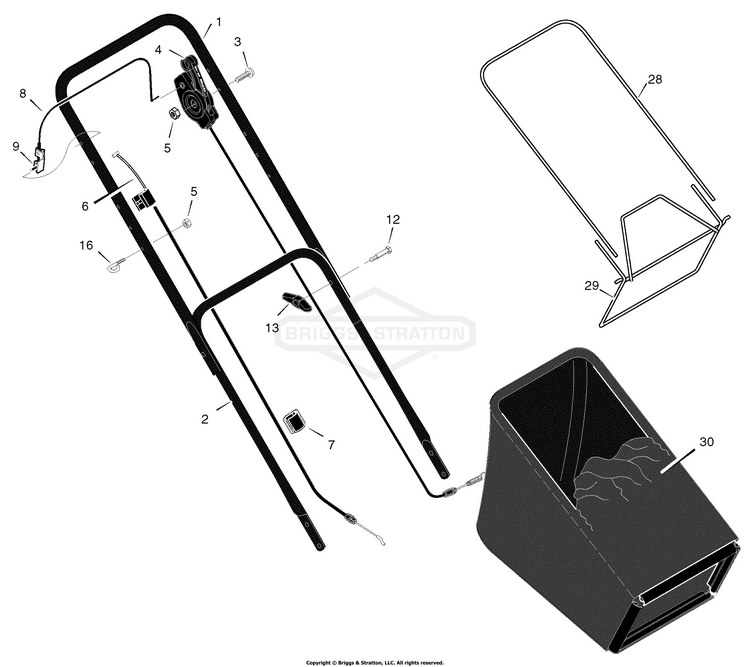

Handle & Bag Assembly

...
...
1
Handle, Upper (Gray) BS-1101828E701
...
2
Handle, Lower (Gray) BS-1102085E701
...
3
Bolt BS-025X14
...
4
Cable, Drive BS-1101678
...
5
Locknut BS-15X116
...
6
Cable, Stop BS-1101361
...
7
Fastener, Cable BS-1101353
...
8
Engine Stop Lever BS-672878E701
...
9
Bracket, Stop Lever BS-1101454
...
12
Bolt BS-002X77
...
13
Knob BS-71294
...
16
Guide, Rope BS-71530
...
28
Frame, Top BS-71592
...
29
Frame Assembly BS-672905
...
30
Bag, Cloth BS-1101031

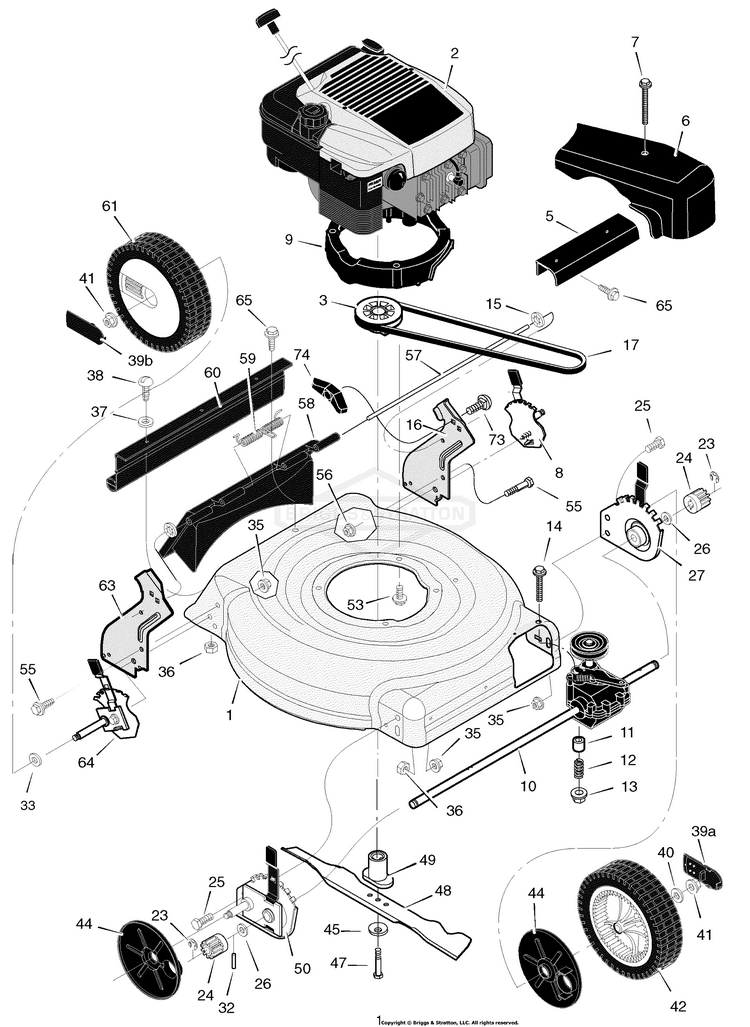

Mower Housing Assembly

...
...
3
Pulley, Crankshaft BS-1101653
...
4
Pin, Spring BS-032X64
...
5
Cover, Axle (Black) BS-1101625
...
6
Cover, Belt (Black) BS-1101623
...
7
Screw BS-26X304
...
8
Adjuster, Left Height BS-1102219
...
9
Spacer, Engine BS-1101639
...
10
Transmission * BS-1101619
...
11
BELT, 73.75 AA BS-7043844YP
...
12
Spring BS-164X27
...
13
NUT, HEX FLNG,5/16-18 BS-704067
...
14
BOLT, 5/16-18 BS-5025011X24SM
...
15
Retainer, Push (Included with Ref. No. 58) BS-028X49
...
16
Bracket, Left Handle BS-1101239E735
...
17
Belt BS-37X128
...
23
E-Ring BS-011X16
...
24
Gear, Pinion BS-71792
...
25
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
26
Washer BS-17X186
...
27
Adjuster, Left Frt. Height BS-1102133
...
33
WASHER, Flat, 13/16 BS-017X91MA
...
35
NUT, 3/8-16 BS-703333
...
36
Nut, Hex BS-15X102
...
37
WASHER, Flat, 3/4 BS-017X38MA
...
38
SCREW, Machine, 10-24 X 5/8 BS-004X21MA
...
39a
Cap, Hub BS-43615
...
39b
Cap, Hub BS-43615
...
40
Washer BS-17X169
...
41
NUT, CNTR LCK, 3/8-16 BS-703893
...
42
Wheel, Drive BS-71133
...
44
Cover, Dust BS-71780
...
45
Washer, Belleville BS-1101989
...
47
Bolt BS-01X144
...
48
Blade BS-1101822E701
...
49
Adapter, Blade BS-1101826
...
50
Adjuster, Right Frt. Height BS-1102132
...
53
Bolt, Engine BS-025X11
...
55
CAPSCREW,5/16-18X.625 BS-703822
...
56
Nut, Flange BS-015X79
...
57
Rod, Pivot (Included with Ref. No. 58) BS-215X17 Z
...
58
Door, Rear (Black) BS-672610
...
59
Spring (Included with Ref. No. 58) BS-166X44
...
60
Deflector, Rear BS-671970
...
61
Wheel, Rear BS-71132
...
63
Bracket, Right Handle BS-1101238E735
...
64
Adjuster, Right Height BS-1102218
...
65
Screw BS-26X245
...
73
Bolt, Carriage BS-002X81
...
74
Knob BS-71495
...
--
Instruction Book BS-F-050428L
