product name

20647x89B Murray - Walk-Behind (1998)

Model: 20647x89B

Back To Assemblies

Save Part Not Listed?
product name

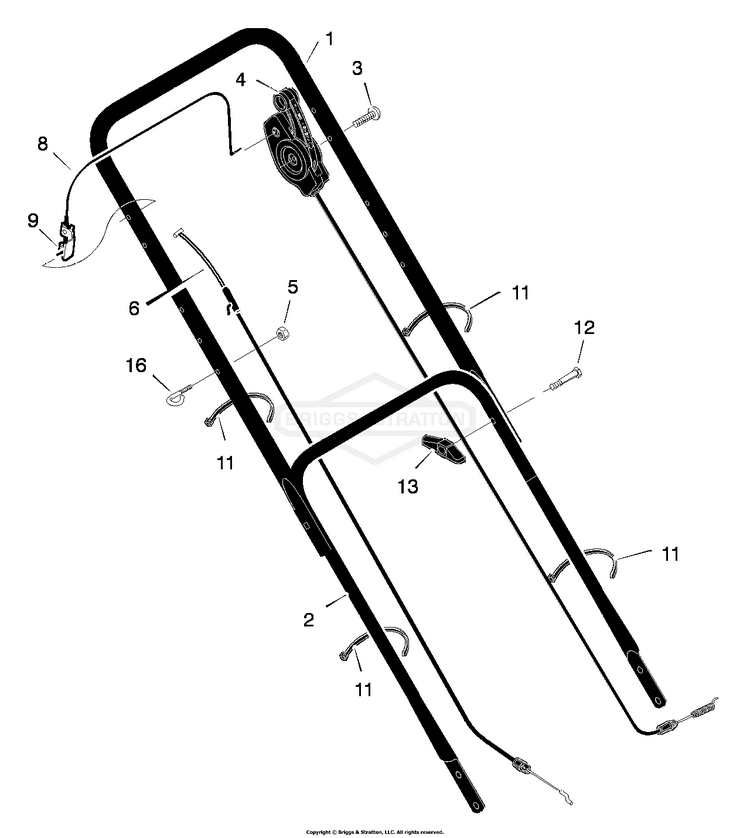

Handle Assembly

...
...
1
Handle, Upper BS-672665E724
...
2
Handle, Lower BS-671917E724
...
3
Bolt BS-26X256MA
...
4
Control, Drive BS-672580MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672554MA
...
8
Lever, Stop BS-672570
...
9
Bracket, Stop Lever BS-1101454E701MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
