20645x8A Murray - Walk-Behind Mower (1997)

Model: 20645x8A

Back To Assemblies

Save Part Not Listed?
product name

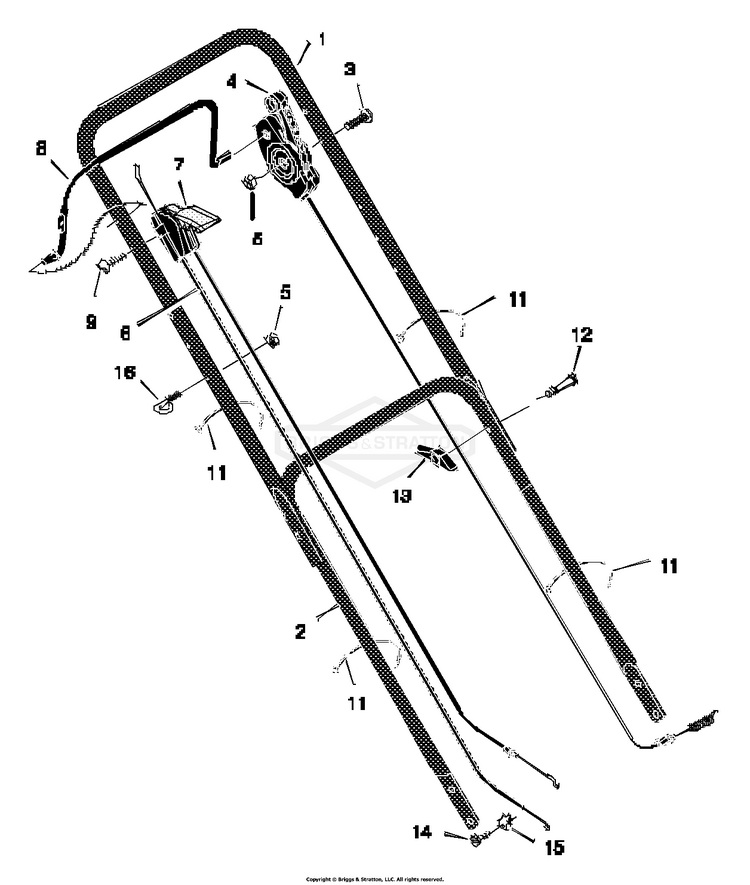

Handle Assembly

...
...
1
Handle, Upper (Black) BS-671918E701
...
2
Handle, Lower (Black) BS-671917E701
...
3
Bolt BS-03X144
...
4
Control, Drive BS-672067MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672127MA
...
7
Throttle Control BS-672141
...
8
Lever, Stop BS-671922E701
...
9
Screw BS-03X144
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
Screw BS-26X268MA
...
15
Clamp BS-042294
...
16
GUIDE, ROPE BS-043956MA
