20616x50H Murray - Walk-Behind Mower (2004)

Model: 20616x50H

Back To Assemblies

Save Part Not Listed?
product name

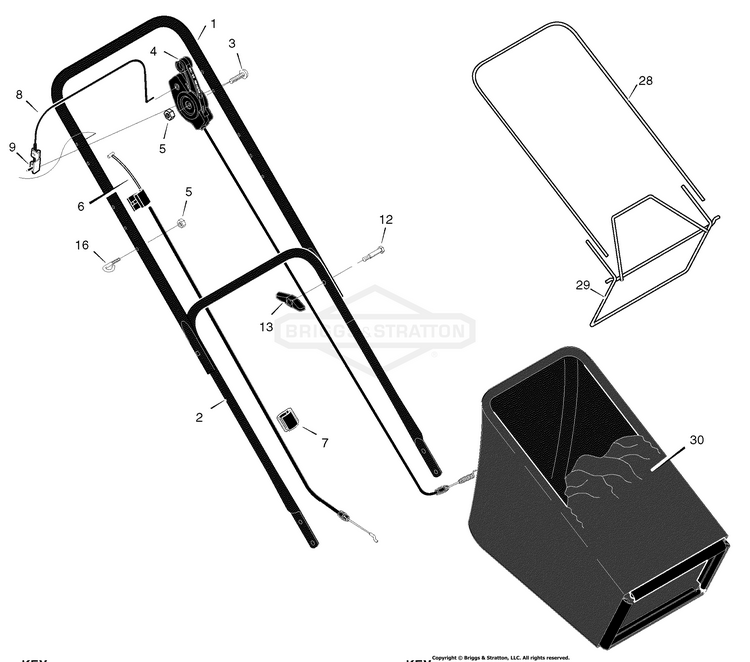

Handle & Bag Assembly

...
...
1
Handle, Upper (Gray) BS-1101555E724
...
2
Handle, Lower (Gray) BS-672874E724
...
3
Bolt BS-025X14
...
4
Cable, Drive BS-1101678
...
5
Locknut BS-15X116
...
6
Cable, Stop BS-1101183
...
7
Fastener, Cable BS-1101353
...
8
Engine Stop Lever BS-672878E701
...
9
Bracket, Stop Lever BS-1101454
...
12
Bolt BS-002X77
...
13
Knob BS-71294
...
16
Guide, Rope BS-71530
...
28
Frame, Top BS-71592
...
29
Frame Assembly BS-672905
...
30
Bag, Cloth BS-1101032
