20616x50D Murray - Walk-Behind Mower (2001)

Model: 20616x50D

Back To Assemblies

Save Part Not Listed?
product name

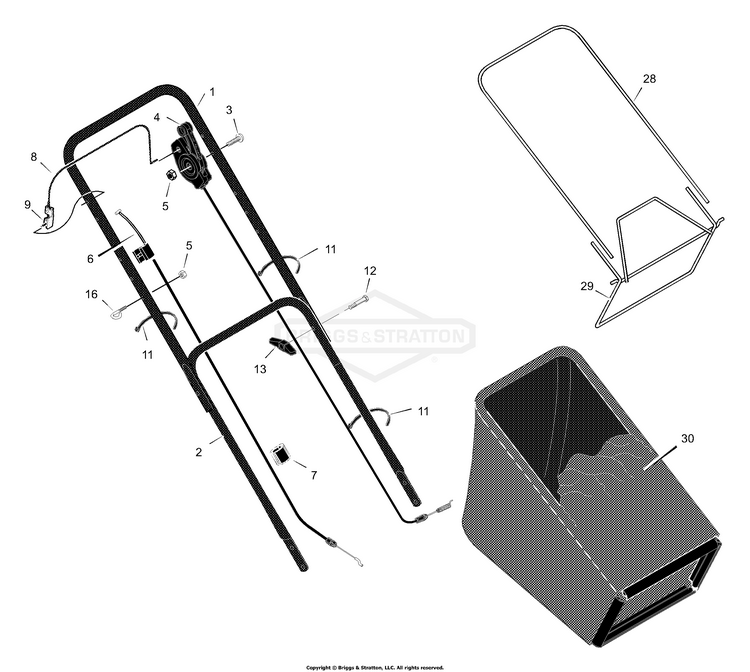

Handle & Bag Assembly

...
...
1
Handle, Upper (Gray) BS-671918E724
...
2
Handle, Lower (Gray) BS-672874E724
...
3
Bolt BS-025X14MA
...
4
Control, Drive BS-1101420MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-1101367MA
...
7
Fastener, Single Cable BS-1101352
...
--
Fastener, Double Cable BS-1101353MA
...
8
Engine Stop Lever BS-672878E701MA
...
9
Bracket, Stop Lever BS-43628 BC
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
28
TUBE-BAG TOP 20RB BS-071592MA
...
29
Frame Assembly BS-672905MA
...
30
Bag, Cloth BS-1101031MA
