20616x50A Murray - Walk-Behind Mower (2000)

Model: 20616x50A

Back To Assemblies

Save Part Not Listed?
product name

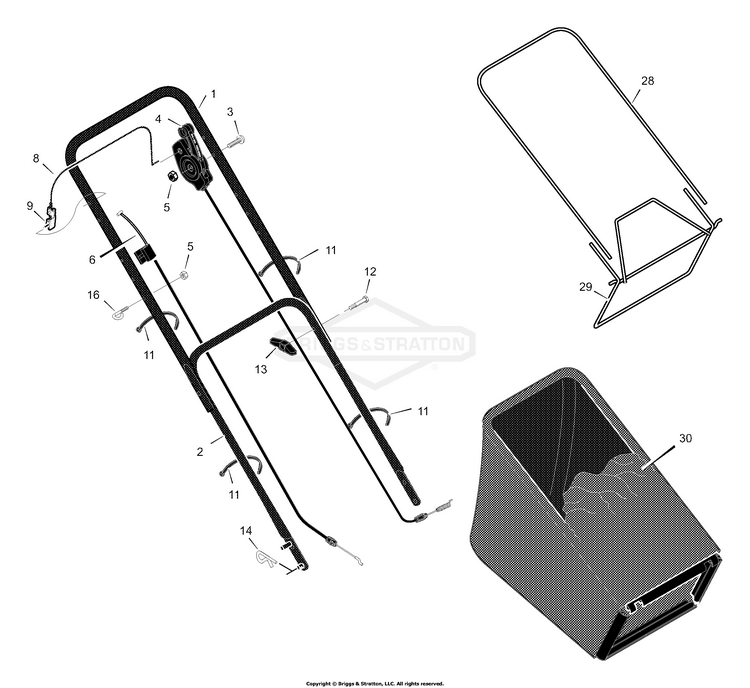

Handle & Bag Assembly

...
...
1
Handle, Upper (Gray) BS-71581E724
...
2
Handle, Lower (Gray) BS-1101010E724
...
3
Bolt BS-26X286MA
...
4
Control, Drive BS-672872MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672831
...
8
Engine Stop Lever BS-672878E701MA
...
9
Bracket, Stop Lever BS-43628 BC
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
Pin, Hair BS-031X10MA
...
15
Clamp BS-042294
...
16
ROPE GUIDE-UPPER BS-071530MA
...
28
TUBE-BAG TOP 20RB BS-071592MA
...
29
Frame Assembly BS-672614
...
30
Complete Service Replacement Kit * BS-24201MA
