20608x34B Murray - Walk-Behind (1998)

Model: 20608x34B

Back To Assemblies

Save Part Not Listed?
product name

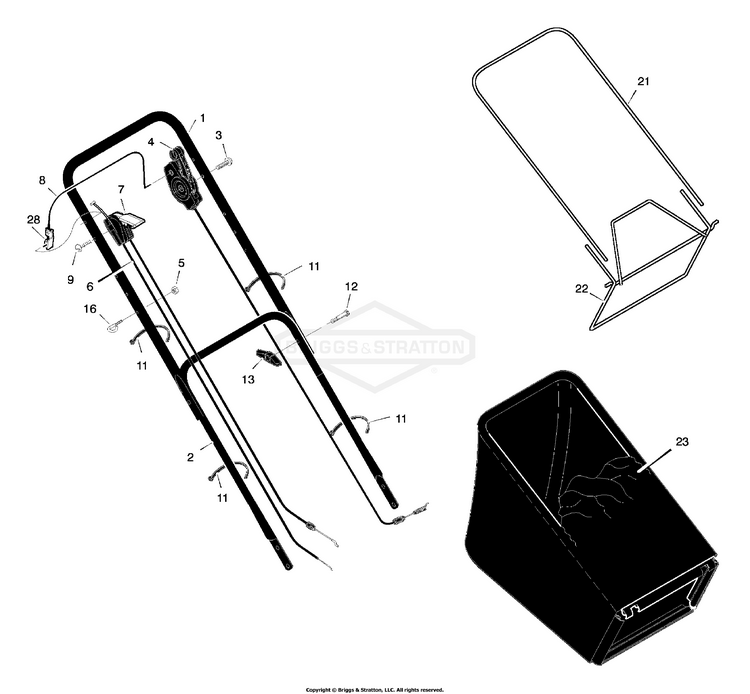

Handle And Bag Assembly

...
...
1
Handle, Upper BS-672665E701
...
2
Handle, Lower BS-671917E701
...
3
Bolt BS-26X256MA
...
4
Control, Drive BS-672580MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672662
...
7
Throttle Control BS-672138MA
...
8
Engine Stop Lever BS-672570E245
...
9
Screw BS-26X256MA
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
16
ROPE GUIDE-UPPER BS-071530MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672614
...
23
Complete Service Replacement Kit * BS-24201MA
...
28
Bracket, Stop Lever BS-43628 BC
