20606x92A Murray - Walk-Behind (1998)

Model: 20606x92A

Back To Assemblies

Save Part Not Listed?
product name

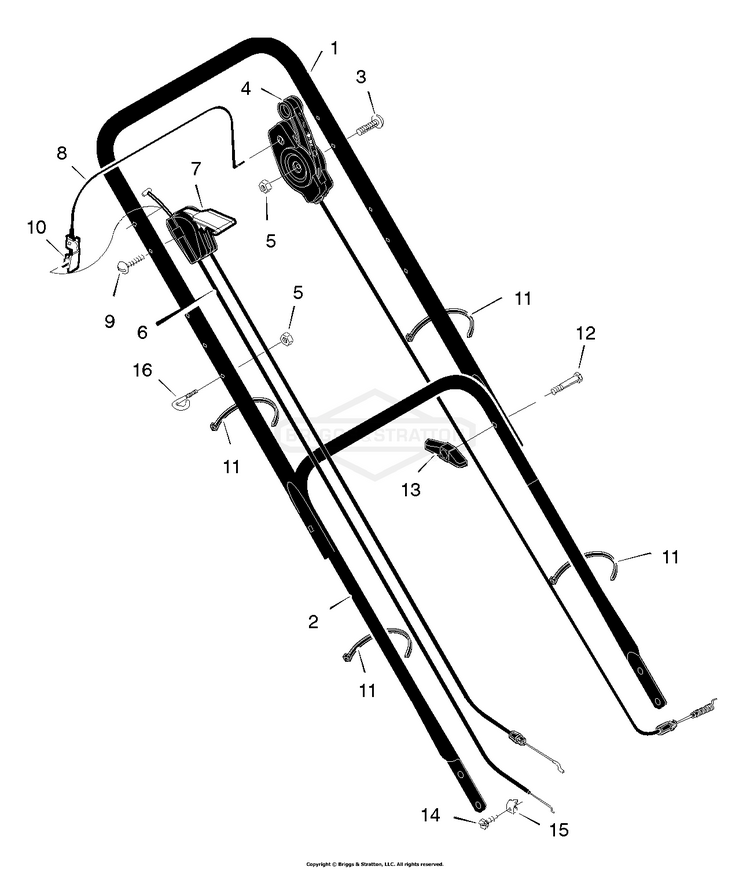

Mower Housing Assembly

...
...
1
Handle, Upper (Black) BS-671918E701
...
2
Handle, Lower (Black) BS-671917E701
...
3
Bolt BS-03X144
...
4
Control, Drive BS-672580MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672664MA
...
7
Throttle Control BS-672134MA
...
8
Lever, Stop BS-672570E701
...
9
Screw BS-03X144
...
10
Bracket, Stop Lever BS-43628 BC
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
Screw BS-26X268MA
...
15
Clamp BS-042294
...
16
ROPE GUIDE-UPPER BS-071530MA
