product name

20606x50A Murray - Walk-Behind (1998)

Model: 20606x50A

Back To Assemblies

Save Part Not Listed?
product name

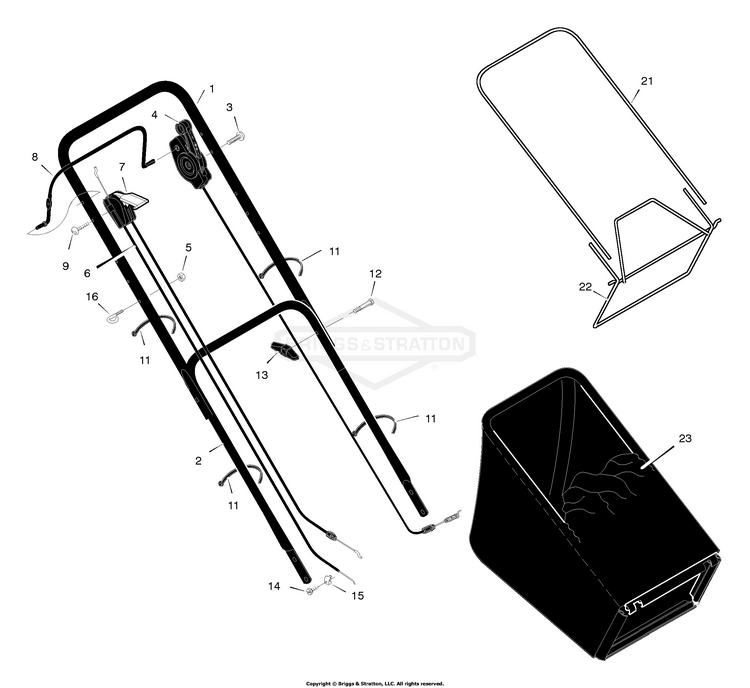

Handle And Bag Assembly

...
...
1
Handle, Upper BS-671918E724
...
2
Handle, Lower BS-671917E724
...
3
Bolt BS-26X256MA
...
4
Control, Drive BS-672067MA
...
5
NUT, 1/4-20, NYLOCK BS-703232
...
6
Cable, Stop BS-672130MA
...
7
Throttle Control BS-672144
...
8
Engine Stop Lever BS-671922E245
...
9
Screw BS-03X144
...
11
TIE,STRAP-REMOVABLE BS-071372MA
...
12
Bolt BS-002X77MA
...
13
WINGKNOB, 5/16-18 BS-703065
...
14
Screw BS-26X268MA
...
15
Clamp BS-042294
...
16
GUIDE, ROPE BS-043956MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672068
...
23
Bag, Cloth BS-672069
