205310x99A Murray - Walk-Behind Mower (2002)

Model: 205310x99A

Back To Assemblies

Save Part Not Listed?
product name

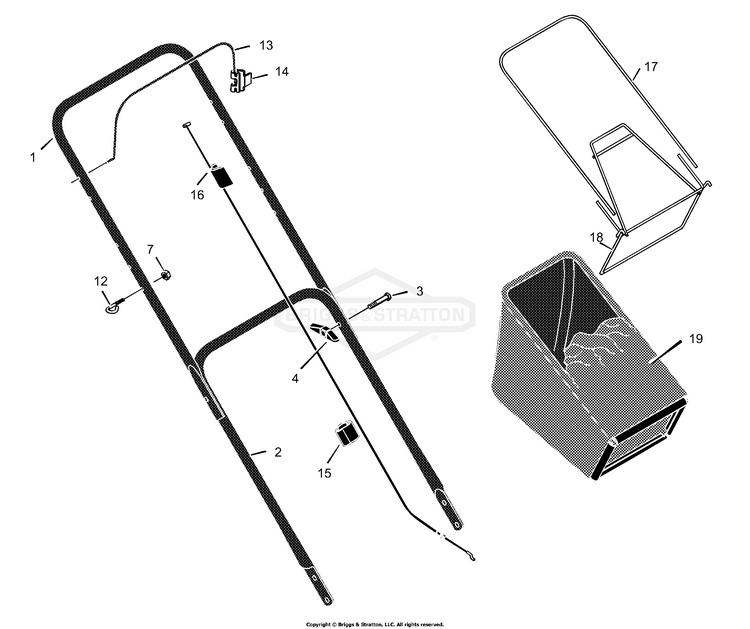

Handle And Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101555E701MA
...
2
Handle, Lower (Black) BS-672874E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-671924E700
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Double Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101362MA
...
17
TUBE-BAG TOP 20RB BS-071592MA
...
18
Frame Assembly BS-672905MA
...
19
Bag, Cloth - Black BS-1101003
