205310x92A Murray - Walk-Behind Mower (2002)

Model: 205310x92A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

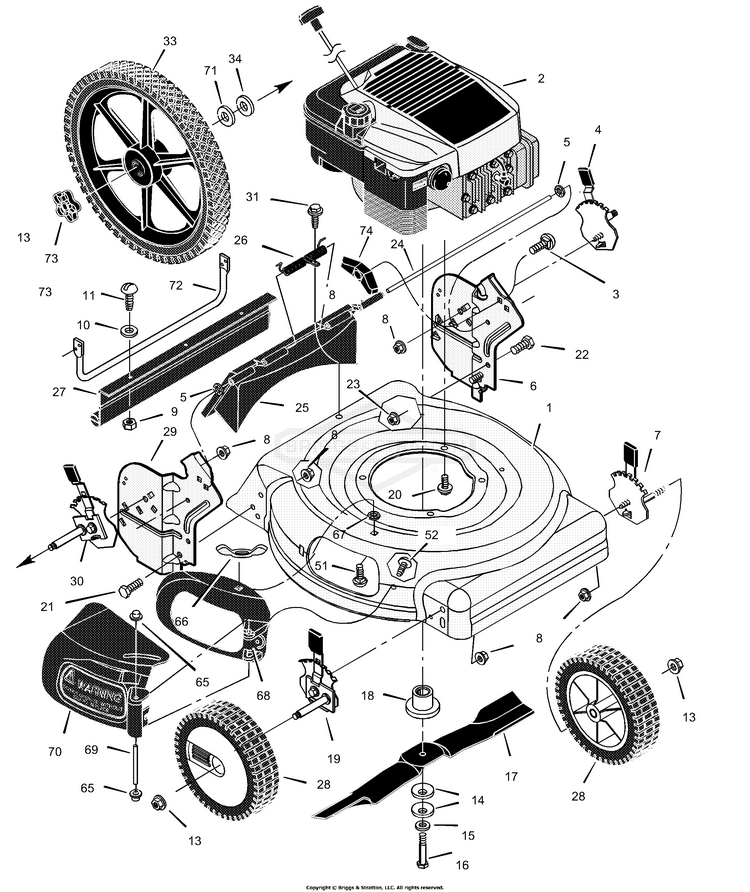

Mower Housing Assembly

...
...
1
Housing BS-672896E549
...
3
Bolt, Carriage BS-002X81MA
...
4
Adjuster, Left Rear Height BS-672607MA
...
5
Push On Cap (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101245E549
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-004X21MA
...
12
Hub Cap (Optional) BS-043615MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-672763E701MA
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
21
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
22
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X17 Z
...
25
Door, Rear BS-672610
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
Guard, Rear BS-671969MA
...
28
Tire & Rim BS-336545MA
...
29
Bracket, Right Handle BS-1101244E549
...
30
Adjuster, Right Rear Height BS-672606MA
...
31
SCREW-#10X.5 B W/WAS BS-26X245MA
...
33
Wheel, Rear BS-672074MA
...
34
WASHER,SPRING .52X.99 BS-0020X3MA
...
51
Bolt, Carriage BS-002X16MA
...
52
Screw BS-26X221MA
...
65
Push On Cap (Included with Ref. No. 70) BS-028X42MA
...
66
NUT BS-703141
...
68
Bezel (Included with Ref. No. 70) BS-671926
...
69
Pin, Pivot (Included with Ref. No. 70) BS-215X18 Z
...
70
Deflector, Chute BS-672158MA
...
71
Washer BS-017X91 Z
...
72
Brace BS-672737E701
...
73
Knob BS-672449MA
...
74
Knob BS-071495MA
...
--
Decal, 3n1 Combo BS-48X703
...
--
Decal, Warning/Cut Finger BS-48X407MA
...
--
Decal, Quantum 6 BS-48X1029
...
--
Instruction Book BS-F-020400L
