205310x50A Murray - Walk-Behind Mower (2004)

Model: 205310x50A

Save Part Not Listed?
product name

Popular Parts

Popular Parts

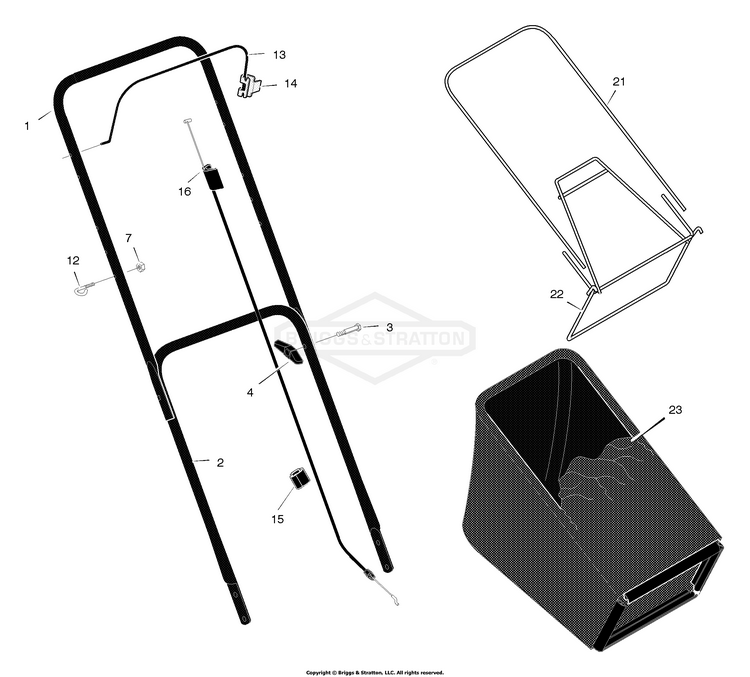

Handle Assembly

...
...
1
Handle, Upper (Gray) BS-1101555E724
...
2
Handle, Lower (Gray) BS-672874E724
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
LEVER, STOP 20RB PUSH BS-7101742AYP
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101362MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672905MA
...
23
Bag, Cloth BS-1101031MA

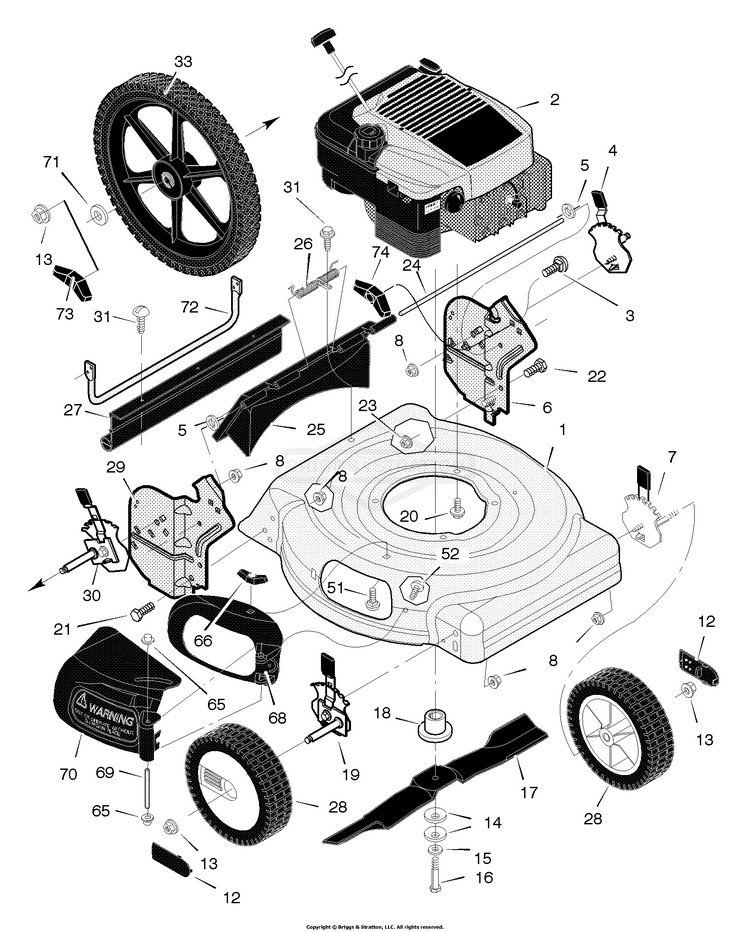

Mower Housing Assembly

...
...
1
Housing BS-776153
...
3
Bolt, Carriage BS-002X81MA
...
4
Adjuster, Left Rear Height BS-672607MA
...
5
Retainer, Push (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101245E700
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
12
Hub Cab BS-043615MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-672763E701MA
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
21
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
22
CAPSCREW,5/16-18X.625 BS-703822
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X17 Z
...
25
Door, Rear (Gray) BS-672612
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
Guard, Rear BS-671969MA
...
28
Wheel & Tire BS-071132MA
...
29
Bracket, Right Handle BS-1101244E700
...
30
Adjuster, Right Rear Height BS-672606MA
...
31
SCREW-#10X.5 B W/WAS BS-26X245MA
...
33
Wheel and Tire - Rear BS-672074MA
...
51
Bolt, Carriage BS-002X16MA
...
52
Screw BS-26X221MA
...
65
Push On Cap BS-028X42MA
...
66
NUT BS-703141
...
68
Bezel (Gray) BS-672190
...
69
Pin, Pivot BS-215X18 Z
...
70
Deflector, Chute (Gray) BS-672190
...
71
Washer BS-017X91MA
...
72
Brace BS-672737E701
...
73
Knob BS-672449MA
...
74
Knob BS-071495MA
...
--
Instruction Book BS-F-040415L
