20505x8B Murray - Walk-Behind Mower (1997)

Model: 20505x8B

Save Part Not Listed?
product name

Popular Parts

Popular Parts

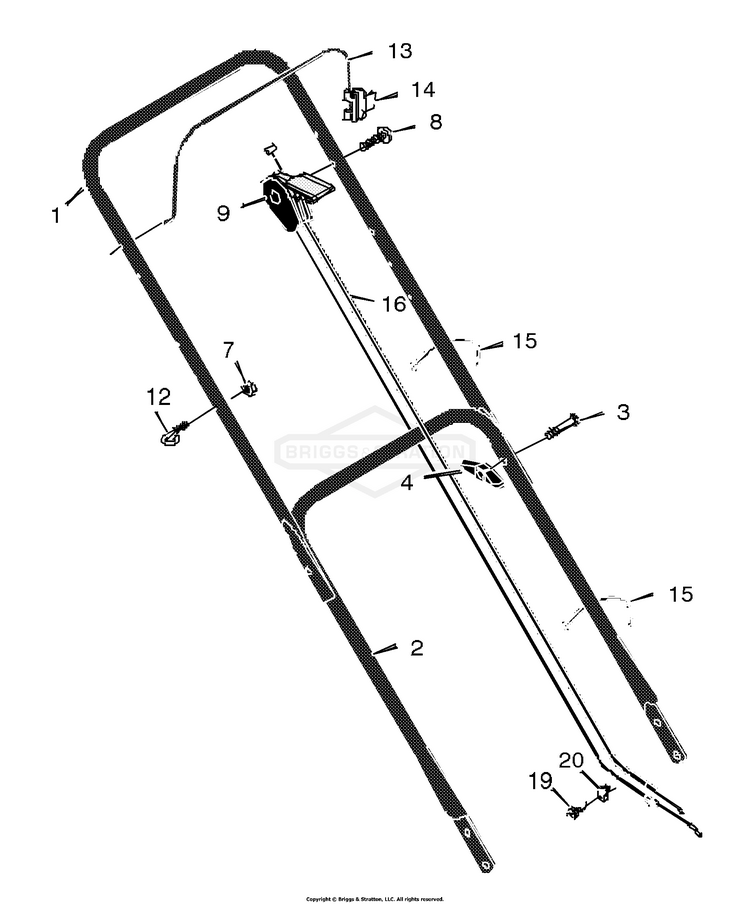

Handle Assembly

...
...
1
Handle, Upper (Black) BS-671918E701
...
2
Handle, Lower (Black) BS-671917E701
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
8
Screw BS-03X144
...
9
Throttle Control BS-672147MA
...
12
GUIDE, ROPE BS-043956MA
...
13
Engine Stop Lever BS-671924E700
...
14
Bracket, Stop Lever BS-43628 BC
...
15
TIE,STRAP-REMOVABLE BS-071372MA
...
16
Engine Stop Cable BS-672127MA
...
19
Screw BS-26X268MA
...
20
Clamp BS-042294

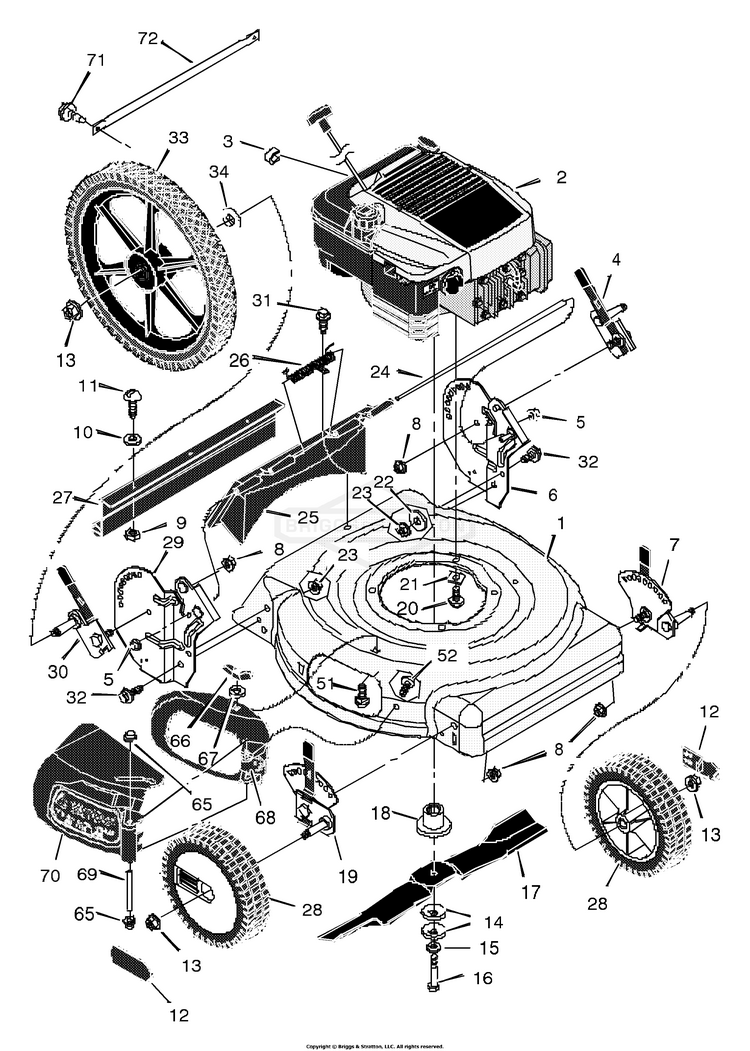

Mower Housing Assembly

...
...
1
Housing BS-776017
...
3
Stop, Rope (Recoil - Start) BS-042189MA
...
4
Adjuster, Left Height BS-671977
...
5
Push On Cap BS-028X49MA
...
6
Bracket, Left Handle BS-672262
...
7
Adjuster, Left Front Height BS-671973MA
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-004X21MA
...
12
Hub Cap (Optional) BS-043615MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X142MA
...
17
Blade BS-671921E701
...
18
Adapter, Blade BS-071056MA
...
19
Adjuster, Right Front Height BS-671972MA
...
20
Bolt, Engine BS-0025X6MA
...
21
Support, Engine BS-671989
...
22
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot BS-215X17 Z
...
25
Door, Rear BS-671915
...
26
Spring BS-166X44MA
...
27
Guard, Rear BS-671969MA
...
28
Tire & Rim BS-336545MA
...
29
Bracket, Right Handle BS-672261
...
30
Adjuster, Right Height BS-671976
...
31
Screw BS-26X259MA
...
32
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
33
Wheel, Rear BS-672074MA
...
34
Washer BS-017X67 Z
...
51
Bolt, Carriage BS-002X16MA
...
52
Screw BS-26X221MA
...
65
Push On Cap BS-028X42MA
...
66
Wingnut BS-071495MA
...
67
RETAINER, GR5, 5/16 BS-703297
...
68
Bezel BS-671926
...
69
Pin, Pivot BS-215X18 Z
...
70
Deflector, Chute BS-671927
...
71
SCREW.25-20 S-T BS-26X263MA
...
72
Brace BS-672233
...
--
Instruction Book BS-F-97525
