20455x30D Murray - Walk-Behind Mower (2002)

Model: 20455x30D

Save Part Not Listed?
product name

Popular Parts

Popular Parts

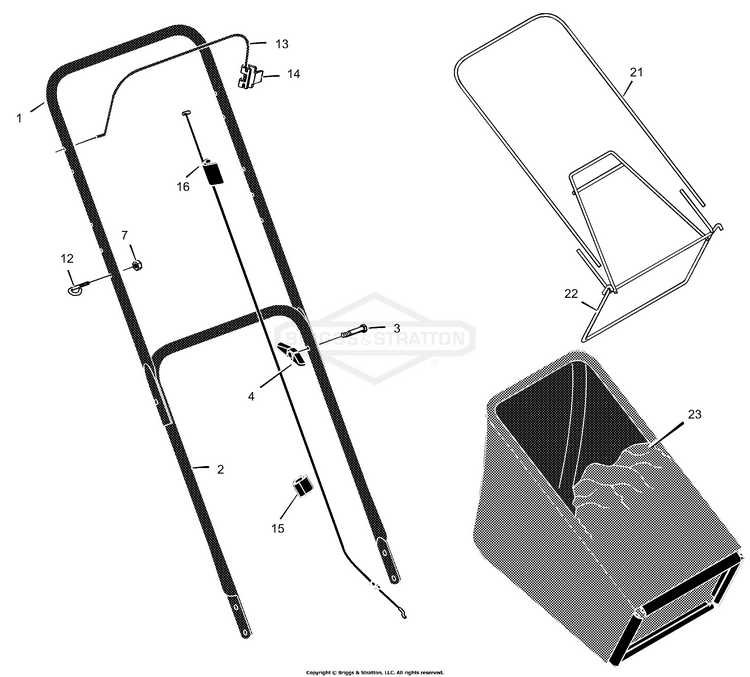

Handle And Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101555E701MA
...
2
Handle, Lower (Black) BS-672874E701MA
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
LEVER, STOP 20RB PUSH BS-7101742AYP
...
14
Bracket, Stop Lever BS-1101454
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1101360MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672905MA
...
23
Bag, Cloth BS-1101031MA

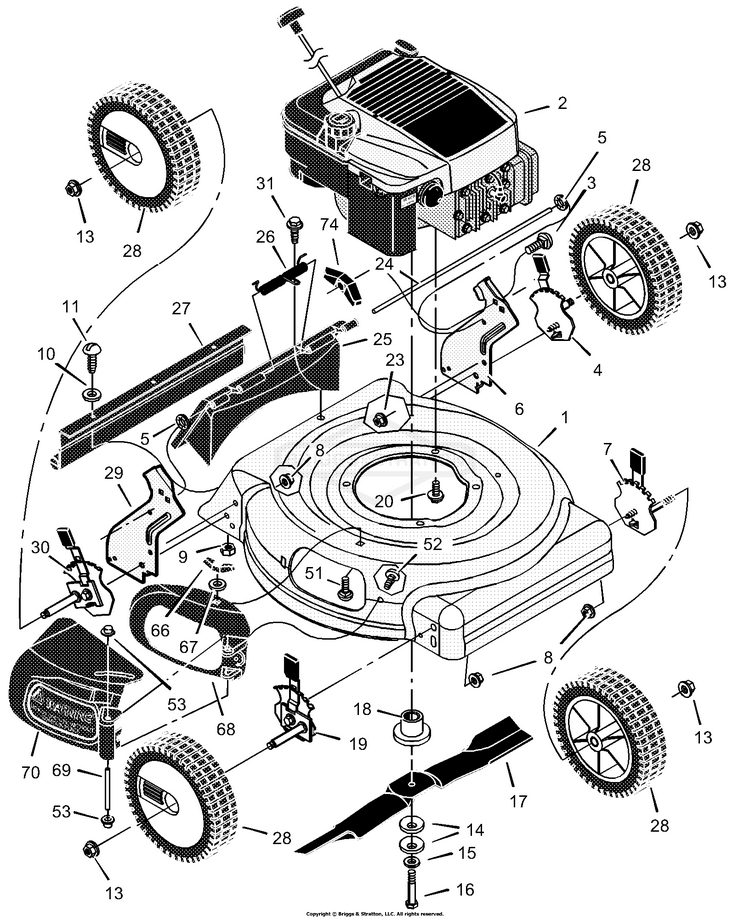

Mower Housing Assembly

...
...
1
Housing BS-776151
...
3
Bolt, Carriage BS-002X81MA
...
4
Adjuster, Left Rear Height BS-672605MA
...
5
Push On Cap (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101239E245
...
7
Adjuster, Left Front Height BS-672601MA
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-017X38MA
...
11
Screw BS-00421
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137MA
...
15
Washer BS-17X124MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-672763E701MA
...
18
Adapter, Blade BS-672503MA
...
19
Adjuster, Right Front Height BS-672600MA
...
20
Bolt, Engine BS-0025X6MA
...
23
NUT, HEX FLNG,5/16-18 BS-704067
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X17 Z
...
25
Door, Rear BS-672610
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
Guard, Rear BS-671970MA
...
28
Tire & Rim BS-336545MA
...
29
Bracket, Right Handle BS-1101238E245
...
30
Adjuster, Right Rear Height BS-672604MA
...
31
SCREW-#10X.5 B W/WAS BS-26X245MA
...
51
Bolt, Carriage BS-002X16MA
...
52
Screw BS-26X221MA
...
53
Push On Cap (Included with Ref. No. 70) BS-028X42MA
...
66
Wingnut BS-01486
...
67
RETAINER, GR5, 5/16 BS-703297
...
68
Bezel (Included with Ref. No. 70) BS-671926
...
69
Pin, Pivot (Included with Ref. No. 70) BS-215X18 Z
...
70
Deflector, Chute BS-672158MA
...
74
Knob BS-071495MA
...
--
Instruction Book BS-F-020444L
