204212x92B Murray - Walk-Behind Mower (2005)

Model: 204212x92B

Save Part Not Listed?
product name

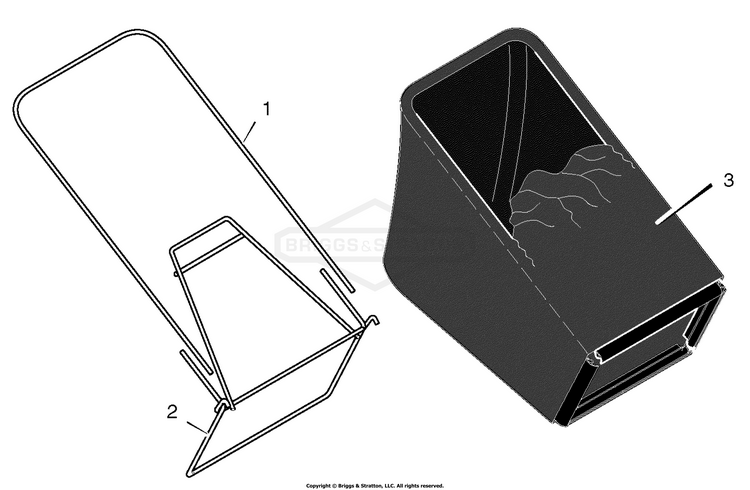

Bag Assembly

...
...
1
Frame, Top BS-71592
...
2
Frame Assembly BS-672905
...
3
Bag, Cloth Black BS-1101003

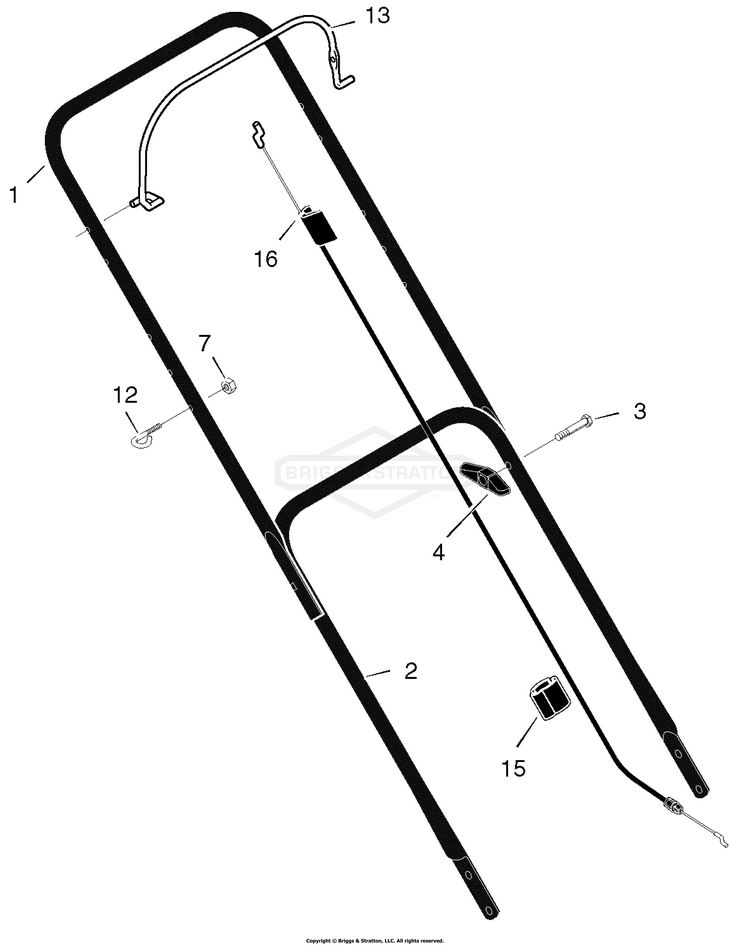

Handle Assembly

...
...
1
Handle, Upper (Black) BS-1101555E701
...
2
Handle, Lower (Black) BS-1102085E701
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Lever, Engine Stop BS-1101963E701
...
15
Clip, Cable BS-1101353
...
16
Engine Stop Cable BS-1102093

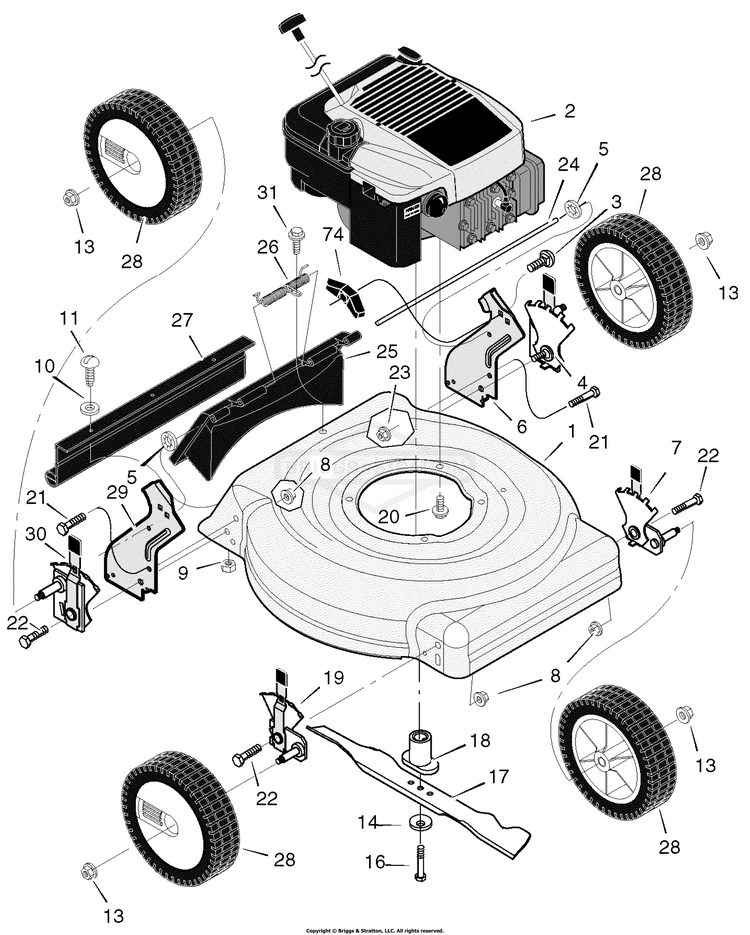

Mower Housing Assembly

...
...
1
Housing BS-776150
...
3
Bolt, Carriage BS-002X81
...
4
Adjuster, Left Rear Height BS-1102201
...
5
Nut, Push ** BS-028X49
...
6
Bracket, Left Handle BS-1101239E700
...
7
Adjuster, Left Front Height BS-1102105
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102
...
10
WASHER, Flat, 3/4 BS-017X38MA
...
11
SCREW, Machine, 10-24 X 5/8 BS-004X21MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-1101989
...
16
Bolt BS-01X153
...
17
Blade BS-1101822E701
...
18
Adapter, Blade BS-1101824
...
19
Adjuster, Right Front Height BS-1102104
...
20
Bolt, Engine BS-0025X6MA
...
21
CAPSCREW,5/16-18X.625 BS-703822
...
23
Nut, Flange BS-015X79
...
24
Rod, Pivot ** BS-215X17 Z
...
25
Door, Rear (Black) BS-672610
...
26
Spring (Included with Ref. No. 25) BS-166X44
...
27
Guard, Rear BS-671970
...
28
Wheel & Tire BS-672060
...
29
Bracket, Right Handle BS-1101238E700
...
30
Adjuster, Right Rear Height BS-1102200
...
31
Screw BS-26X245
...
74
Knob BS-71495
...
--
Instruction Book BS-F-050405L
...
22
Bolt BS-01X108
