204211x31A Murray - Walk-Behind Mower (2005)

Model: 204211x31A

Save Part Not Listed?
product name

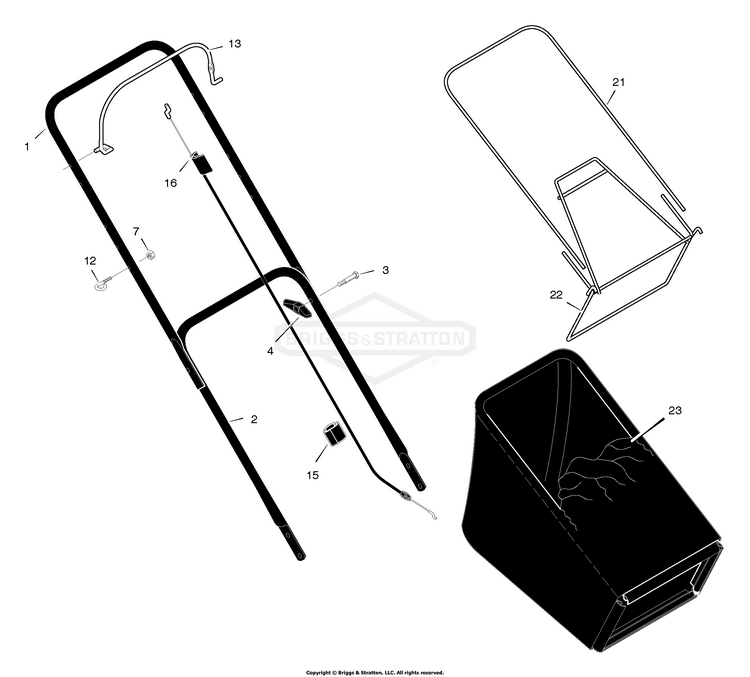

Handle & Bag Assembly

...
...
1
Handle, Upper (Black) BS-1101828E701MA
...
2
Handle, Lower (Black) BS-1102085E701
...
3
Bolt BS-002X77MA
...
4
WINGKNOB, 5/16-18 BS-703065
...
7
NUT, 1/4-20, NYLOCK BS-703232
...
12
ROPE GUIDE-UPPER BS-071530MA
...
13
Engine Stop Lever BS-1101963E701MA
...
15
Fastener, Cable BS-1101353MA
...
16
Engine Stop Cable BS-1102000MA
...
21
TUBE-BAG TOP 20RB BS-071592MA
...
22
Frame Assembly BS-672905MA
...
23
Bag, Cloth BS-1101031MA

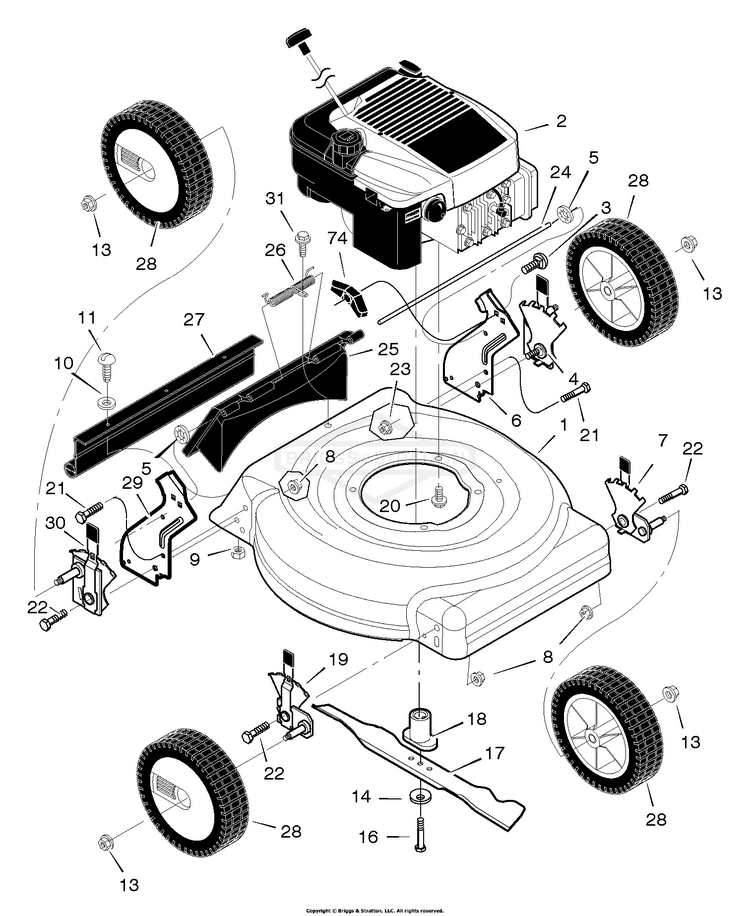

Mower Housing Assembly

...
...
1
Housing BS-776150MA
...
3
Bolt, Carriage BS-002X81MA
...
4
Adjuster, Left Rear Height BS-1102135
...
5
Push Retainer (Included with Ref. No. 25) BS-028X49MA
...
6
Bracket, Left Handle BS-1101239E700
...
7
Adjuster, Left Front Height BS-1102131
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102MA
...
10
Washer BS-01748
...
11
Screw BS-004X21MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-1101989MA
...
16
Bolt BS-01X153MA
...
17
Blade BS-1101822E701MA
...
18
Adapter, Blade BS-1101824MA
...
19
Adjuster, Right Front Height BS-1102130
...
20
Bolt, Engine BS-0025X6MA
...
21
CAPSCREW,5/16-18X.625 BS-703822
...
23
NUT, 5/16-18, GR5 BS-703409
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X17 Z
...
25
Door, Rear (Included with Ref. No. 1) BS-672611
...
26
Spring (Included with Ref. No. 25) BS-166X44MA
...
27
Guard, Rear BS-671970MA
...
28
Tire & Rim BS-336545MA
...
29
Bracket, Right Handle BS-1101238E700
...
30
Adjuster, Right Rear Height BS-1102134
...
74
Knob BS-071495MA
...
--
Instruction Book BS-F-050426L
...
22
Bolt BS-01X108
