204210x8E Murray - Walk-Behind Mower (2004)

Model: 204210x8E

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

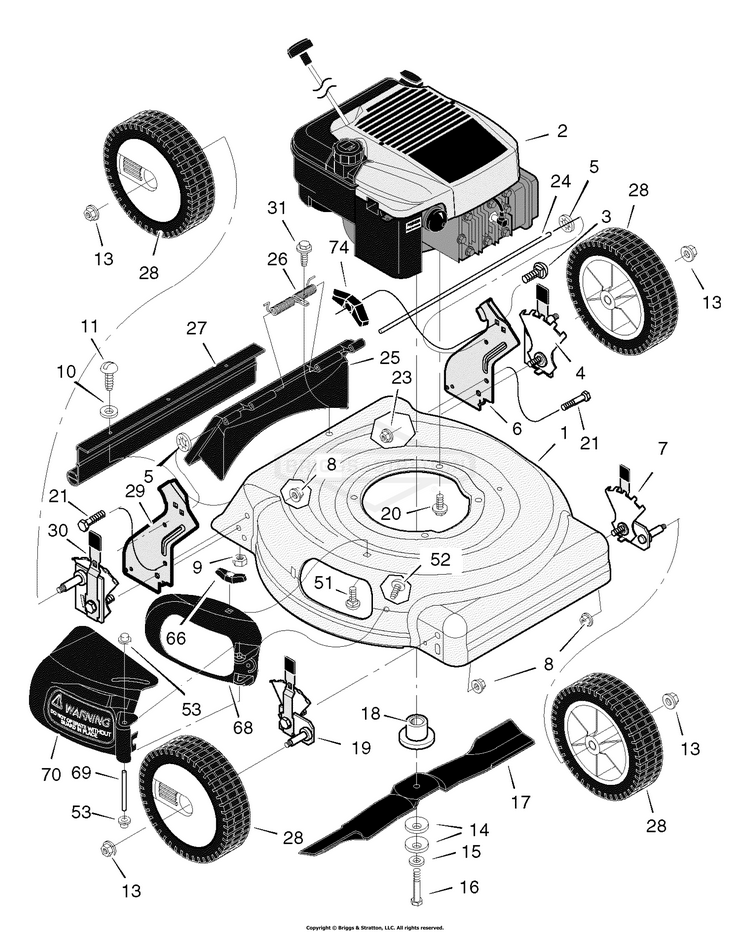

Side Discharge Models

...
...
1
Housing BS-776151
...
3
Bolt, Carriage BS-002X81
...
4
Adjuster, Left Rear Height BS-1101901
...
5
Retainer, Push (Included with Ref. No. 25) BS-028X49
...
6
Bracket, Left Handle BS-1102075E700
...
7
Adjuster, Left Front Height BS-1101899
...
8
NUT, 3/8-16 BS-703333
...
9
Nut, Hex BS-15X102
...
10
WASHER, Flat, 3/4 BS-017X38MA
...
11
SCREW, Machine, 10-24 X 5/8 BS-004X21MA
...
13
NUT, CNTR LCK, 3/8-16 BS-703893
...
14
Washer, Belleville BS-17X137
...
15
Washer BS-17X124
...
16
Bolt BS-01X153
...
17
Blade BS-672763E701
...
18
Adapter, Blade BS-672503
...
19
Adjuster, Right Front Height BS-1101898
...
20
Bolt, Engine BS-0025X6MA
...
21
CAPSCREW,5/16-18X.625 BS-703822
...
23
Nut, Flange BS-015X79
...
24
Rod, Pivot (Included with Ref. No. 25) BS-215X17 Z
...
25
Door, Rear (Black) BS-672610
...
25
Door, Rear (Gray) BS-672613
...
26
Spring (Included with Ref. No. 25) BS-166X44
...
27
Guard, Rear BS-671970
...
29
Bracket, Right Handle BS-1102074E700
...
30
Adjuster, Right Rear Height BS-1101900
...
31
Screw BS-26X245
...
51
Bolt, Carriage BS-002X16
...
52
Screw BS-26X221
...
53
Push On Cap BS-028X42
...
66
NUT BS-703141
...
68
Bezel (Black) BS-671926
...
68
Bezel (Gray) BS-672190
...
69
Pin, Pivot BS-215X18 Z
...
70
Deflector, Chute (Black) BS-671927
...
70
Deflector, Chute (Gray) BS-672191
...
74
Knob BS-71495
...
--
Instruction Book BS-F-040460L
