204210x8E Murray - Walk-Behind Mower (2004)

Model: 204210x8E

Back To Assemblies

Save Part Not Listed?
product name

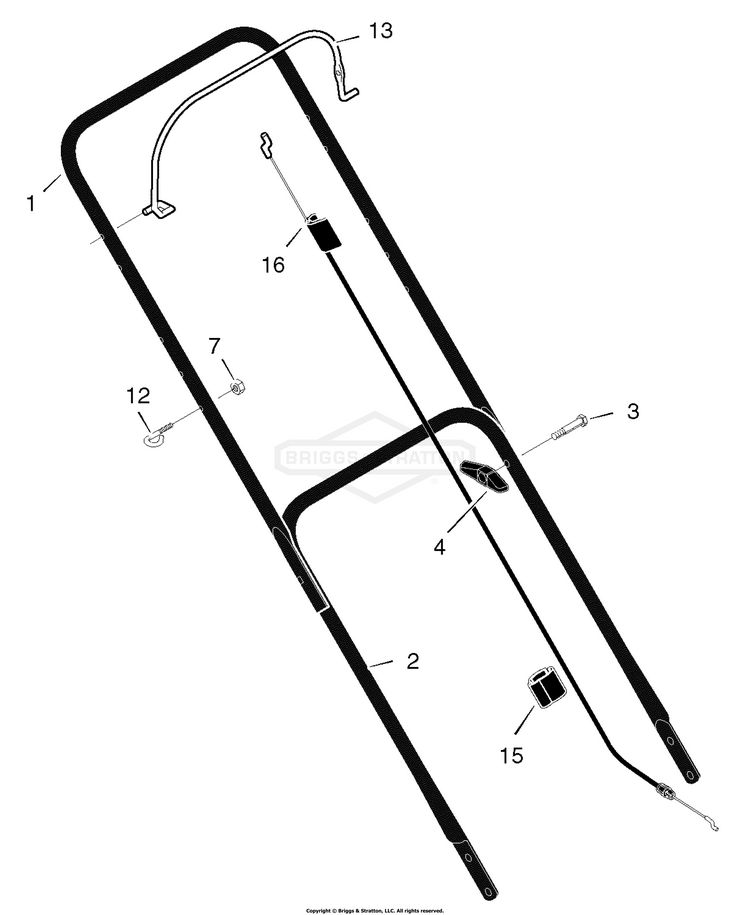

Handle Assembly - B&S Models

...
...
1
Handle, Upper (Black) BS-1101828E701
...
1
Handle, Upper (Gray) BS-1101828E724
...
2
Handle, Lower (Black) BS-672874E701
...
2
Handle, Lower (Gray) BS-672874E724
...
3
Bolt BS-002X77
...
4
Knob, Plastic BS-71294
...
7
Locknut BS-15X116
...
12
Guide, Rope BS-71530
...
13
Lever, Engine Stop BS-1101963E701
...
15
Clip, Cable BS-1101353
...
16
Engine Stop Cable BS-1102000
Schematic Image Zoomed
